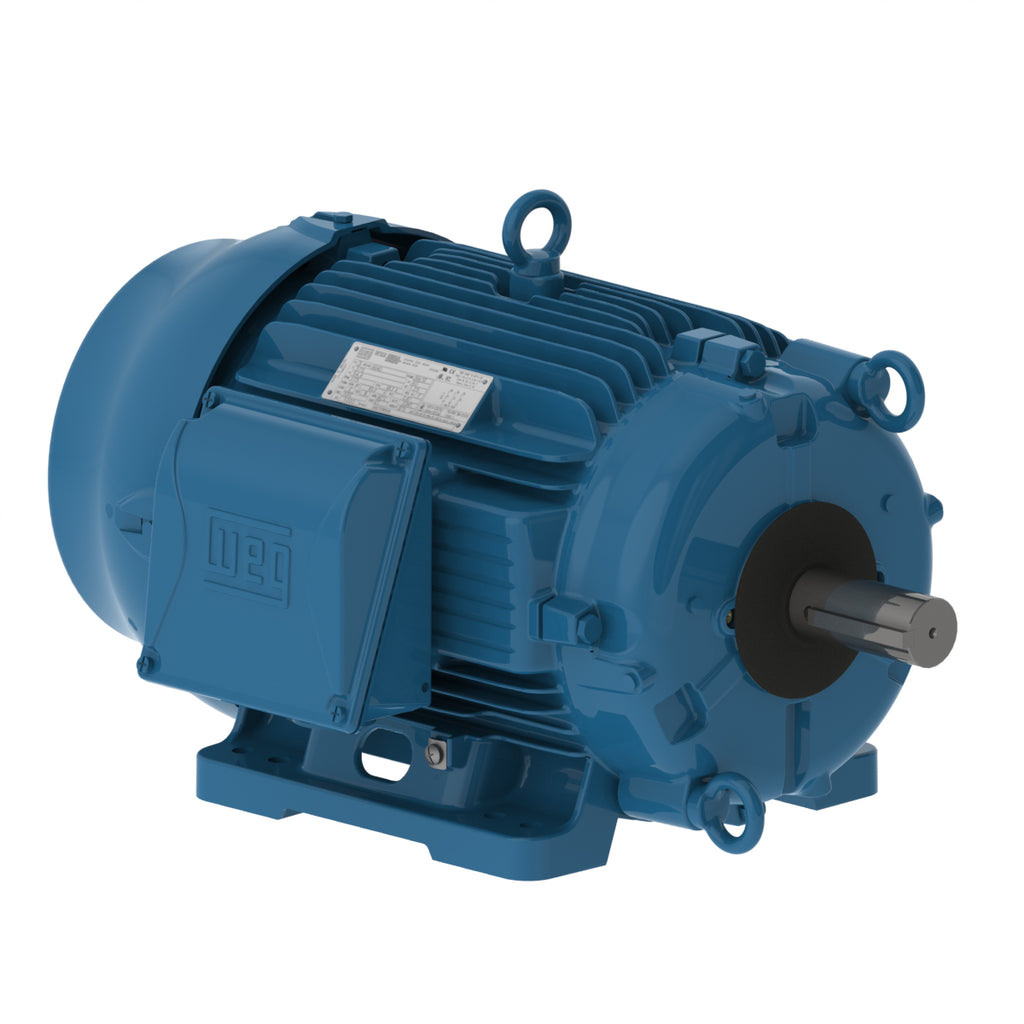

WEG 05026EP3QCT365VF1-W2 W22 Cooling Tower High Efficiency 12.5/50 HP 12/6P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 05026EP3QCT365VF1-W2 W22 Cooling Tower High Efficiency 12.5/50 HP 12/6P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 05026EP3QCT365VF1-W2 W22 Cooling Tower High Efficiency 12.5/50 HP 12/6P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 05026EP3QCT365VF1-W2

GTIN :

MPN :

Dropship

Price:
$11,051.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 12.5/50 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

460 V 60 Hz 12P 460 V 60 Hz 6P

Electric Motors
Frame 364/5T
Output 12.5 HP (9.2 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 590 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 21.0 A
L. R. Amperes 73.5 A
LRC 3.5x(Code E)
No load current 13.0 A
Rated torque 111 ft.lb
Locked rotor torque 130 %
Breakdown torque 180 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 32.4 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 966 lb
Efficiency
50% 87.5
75% 88.5
100% 88.5
Power factor
50% 0.43
75% 0.54
100% 0.62
Electric Motors
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 59.6 A
L. R. Amperes 495 A
LRC 8.3x(Code J)
No load current 24.0 A
Rated torque 222 ft.lb
Locked rotor torque 260 %
Breakdown torque 290 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 32.4 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 966 lb
Efficiency
50% 90.2
75% 91.7
100% 91.7
Power factor
50% 0.70
75% 0.80
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
