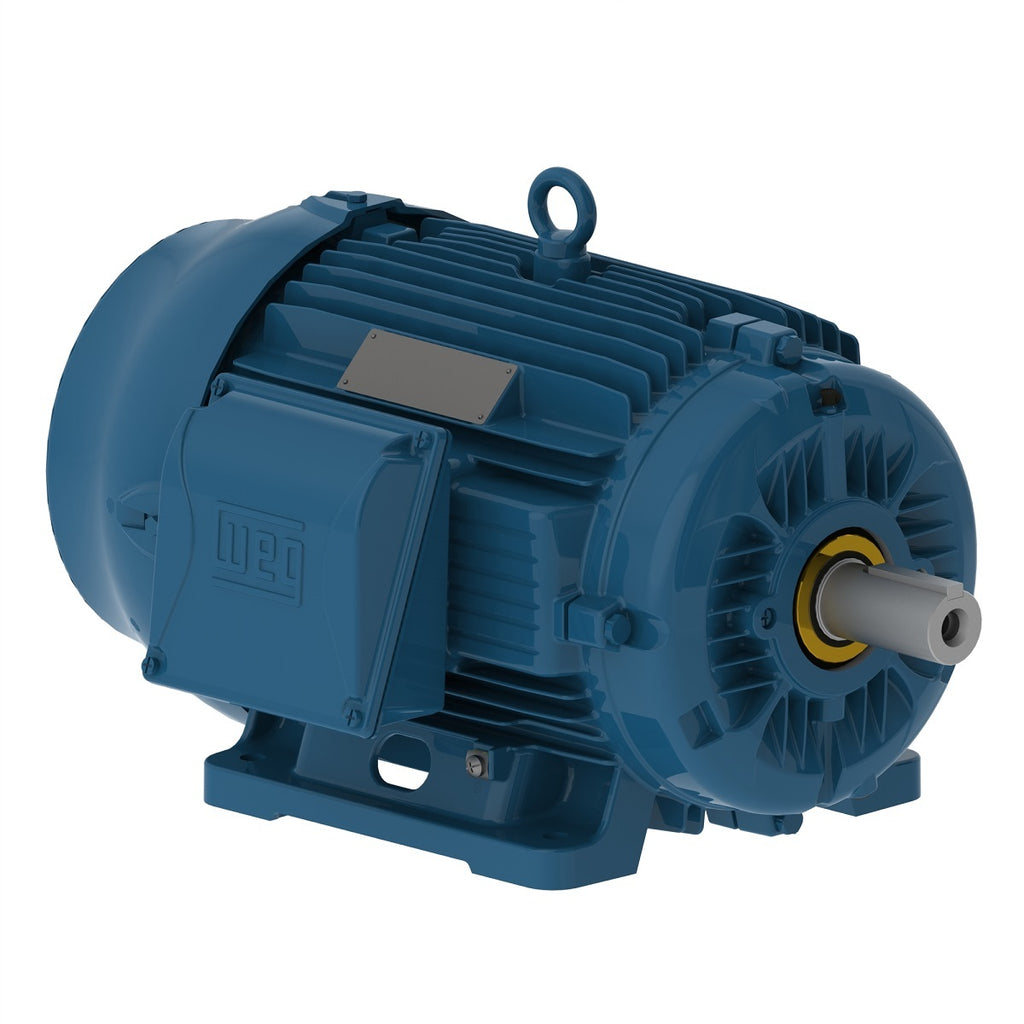

WEG 05018ST3QIE326T-W22 W22 IEEE 841 NEMA Premium Efficiency 50 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 05018ST3QIE326T-W22 W22 IEEE 841 NEMA Premium Efficiency 50 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 05018ST3QIE326T-W22 W22 IEEE 841 NEMA Premium Efficiency 50 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 05018ST3QIE326T-W22

GTIN : 7891327136250

MPN :

Dropship

Price:
$5,233.00

Description

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 50 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 324/6T
Output 50 HP (37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 59.2 A
L. R. Amperes 367 A
LRC 6.2x(Code G)
No load current 23.5 A
Rated torque 148 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 93.0
75% 94.1
100% 94.5
Power factor
50% 0.66
75% 0.77
100% 0.83
Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 58.7 A
L. R. Amperes 376 A
LRC 6.4x(Code G)
No load current 23.0 A
Rated torque 142 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 92.5
75% 93.1
100% 93.6
Power factor
50% 0.64
75% 0.77
100% 0.83
Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1477 rpm
Slip 1.53 %
Rated voltage 400 V
Rated current 57.1 A
L. R. Amperes 400 A
LRC 7.0x(Code H)
No load current 24.0 A
Rated torque 142 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 91.5
75% 92.8
100% 93.6
Power factor
50% 0.60
75% 0.73
100% 0.81
Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1478 rpm
Slip 1.47 %
Rated voltage 415 V
Rated current 56.4 A
L. R. Amperes 417 A
LRC 7.4x(Code J)
No load current 25.0 A
Rated torque 142 ft.lb
Locked rotor torque 260 %
Breakdown torque 330 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 91.1
75% 93.0
100% 93.6
Power factor
50% 0.57
75% 0.70
100% 0.79
Electric Motors
Frame 324/6T
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 71.6 A
L. R. Amperes 372 A
LRC 5.2x(Code E)
No load current 23.0 A
Rated torque 180 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 93.0
75% 93.0
100% 92.4
Power factor
50% 0.72
75% 0.81
100% 0.85
Electric Motors
Frame 324/6T
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 68.4 A
L. R. Amperes 397 A
LRC 5.8x(Code F)
No load current 24.0 A
Rated torque 179 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 92.4
75% 93.0
100% 93.0
Power factor
50% 0.68
75% 0.79
100% 0.84
Electric Motors
Frame 324/6T
Output 50 HP (37 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 66.3 A
L. R. Amperes 411 A
LRC 6.2x(Code G)
No load current 25.0 A
Rated torque 179 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 605 lb
Efficiency
50% 92.4
75% 93.0
100% 93.5
Power factor
50% 0.65
75% 0.76
100% 0.83
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
