Description

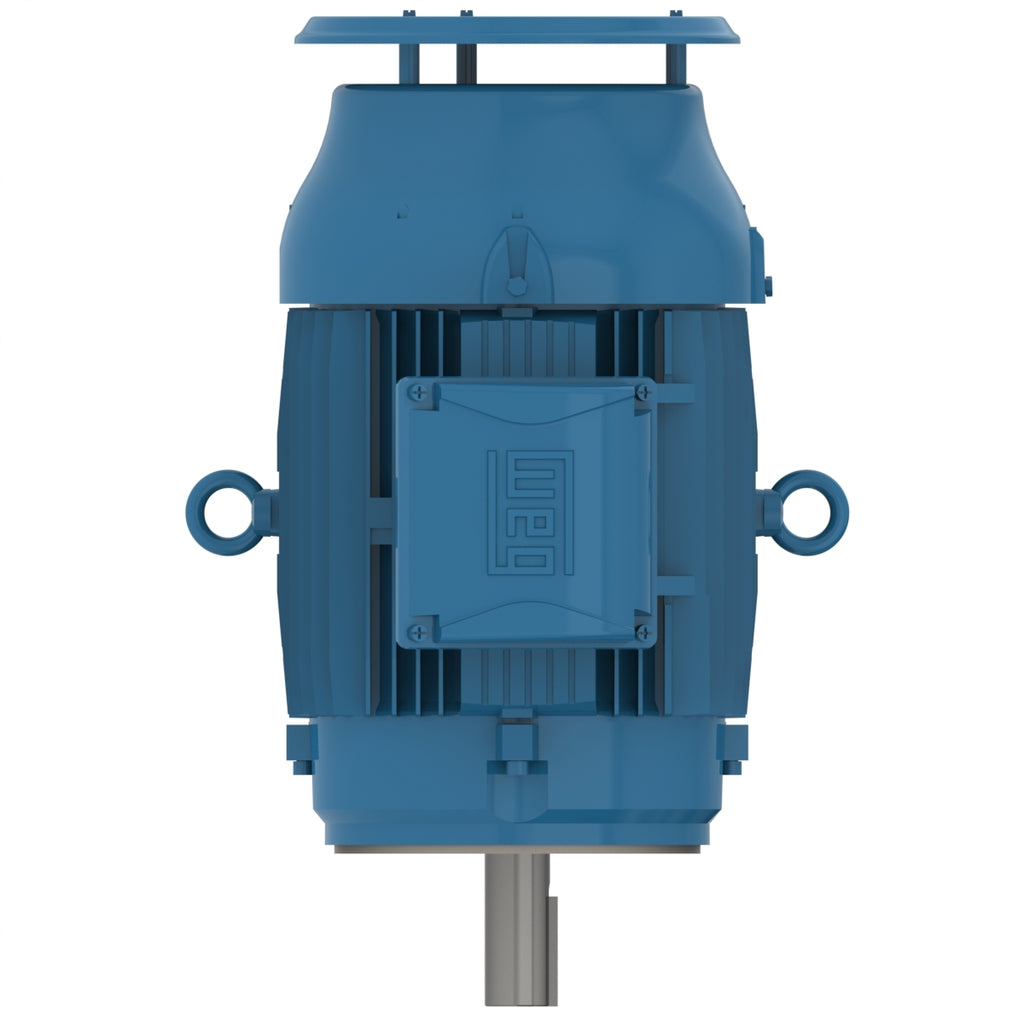

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 40 HP |
| Mounting | W-6 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Specifications
230/460 V 60 Hz 2P 380 V 50 Hz 2P IE3 400 V 50 Hz 2P IE3 415 V 50 Hz 2P IE3 380 V 50 Hz 2P IE1 400 V 50 Hz 2P IE1 415 V 50 Hz 2P IE1Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3555 rpm |
| Slip | 1.25 % |
| Rated voltage | 230/460 V |
| Rated current | 92.6/46.3 A |
| L. R. Amperes | 583/292 A |
| LRC | 6.3x(Code G) |
| No load current | 26.0/13.0 A |
| Rated torque | 59.1 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 240 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 76.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 92.4 |
| 100% | 92.4 |
Power factor
| 50% | 0.80 |
|---|---|
| 75% | 0.86 |
| 100% | 0.88 |
Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2960 rpm |
| Slip | 1.33 % |
| Rated voltage | 380 V |
| Rated current | 41.0 A |
| L. R. Amperes | 295 A |
| LRC | 7.2x(Code H) |
| No load current | 12.0 A |
| Rated torque | 53.2 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 270 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 90.9 |
|---|---|
| 75% | 91.8 |
| 100% | 92.7 |
Power factor
| 50% | 0.77 |
|---|---|
| 75% | 0.85 |
| 100% | 0.88 |
Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2965 rpm |
| Slip | 1.17 % |
| Rated voltage | 400 V |
| Rated current | 39.4 A |
| L. R. Amperes | 296 A |
| LRC | 7.5x(Code H) |
| No load current | 13.0 A |
| Rated torque | 53.1 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 280 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 90.3 |
|---|---|
| 75% | 91.7 |
| 100% | 92.7 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.83 |
| 100% | 0.87 |
Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2970 rpm |
| Slip | 1.00 % |
| Rated voltage | 415 V |
| Rated current | 38.4 A |
| L. R. Amperes | 292 A |
| LRC | 7.6x(Code H) |
| No load current | 13.5 A |
| Rated torque | 53.0 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 310 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 90.7 |
|---|---|
| 75% | 92.1 |
| 100% | 92.7 |
Power factor
| 50% | 0.73 |
|---|---|
| 75% | 0.82 |
| 100% | 0.86 |
Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2935 rpm |
| Slip | 2.17 % |
| Rated voltage | 380 V |
| Rated current | 56.3 A |
| L. R. Amperes | 282 A |
| LRC | 5.0x(Code E) |
| No load current | 12.0 A |
| Rated torque | 71.6 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 200 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 91.7 |
| 100% | 91.0 |
Power factor
| 50% | 0.84 |
|---|---|
| 75% | 0.88 |
| 100% | 0.89 |
Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2945 rpm |
| Slip | 1.83 % |
| Rated voltage | 400 V |
| Rated current | 53.1 A |
| L. R. Amperes | 297 A |
| LRC | 5.6x(Code F) |
| No load current | 13.0 A |
| Rated torque | 71.3 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 210 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 91.7 |
| 100% | 91.7 |
Power factor
| 50% | 0.82 |
|---|---|
| 75% | 0.87 |
| 100% | 0.89 |
Electric Motors
| Frame | 324TSC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2950 rpm |
| Slip | 1.67 % |
| Rated voltage | 415 V |
| Rated current | 51.7 A |
| L. R. Amperes | 321 A |
| LRC | 6.2x(Code G) |
| No load current | 13.5 A |
| Rated torque | 71.2 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 229 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.90 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 72.0 dB(A) |
| Approx. weight³ | 539 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 92.4 |
| 100% | 91.7 |
Power factor
| 50% | 0.80 |
|---|---|
| 75% | 0.86 |
| 100% | 0.88 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | With |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
