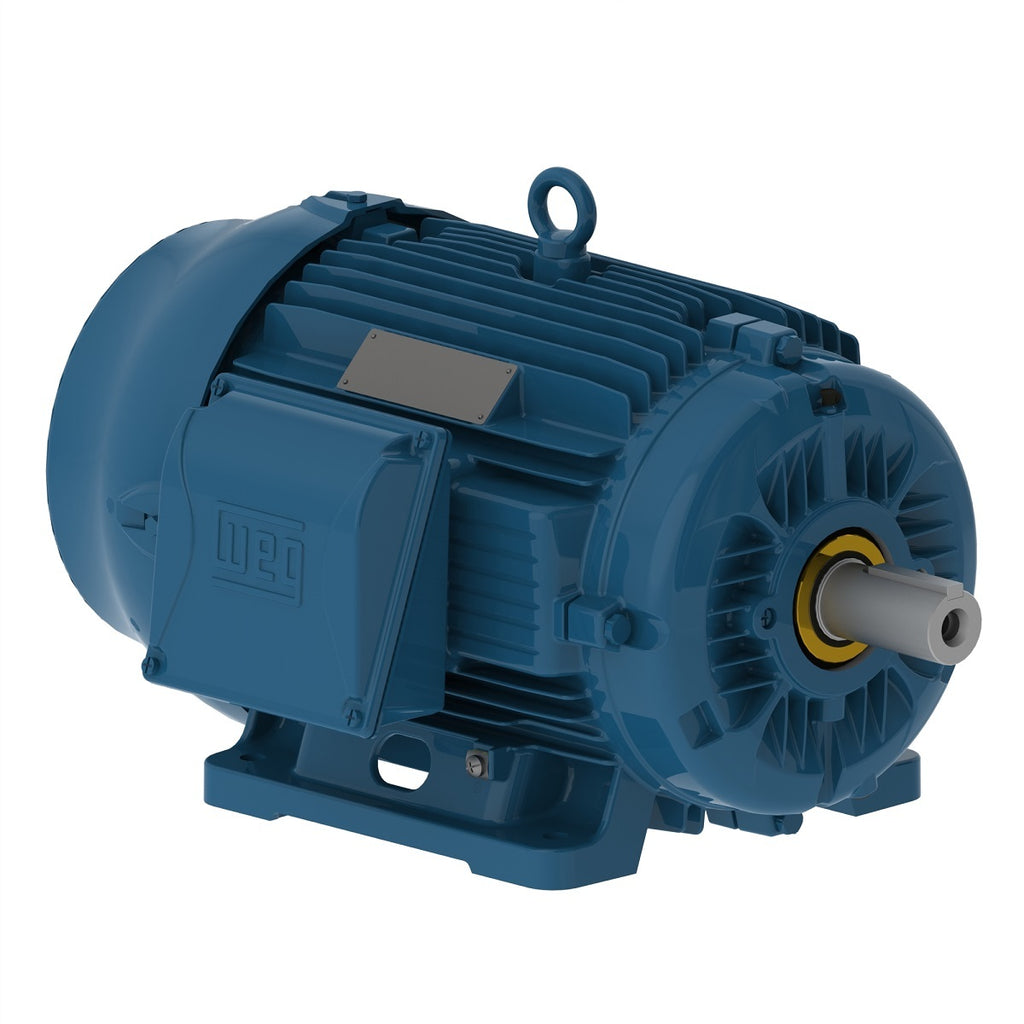

WEG 04018ST3QIE324T-W22 W22 IEEE 841 NEMA Premium Efficiency 40 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 04018ST3QIE324T-W22 W22 IEEE 841 NEMA Premium Efficiency 40 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 04018ST3QIE324T-W22 W22 IEEE 841 NEMA Premium Efficiency 40 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 04018ST3QIE324T-W22

GTIN : 7909158054640

MPN :

Dropship

Price:
$4,692.00

Description

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 47.1 A
L. R. Amperes 287 A
LRC 6.1x(Code G)
No load current 17.0 A
Rated torque 118 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 93.6
75% 94.1
100% 94.1
Power factor
50% 0.72
75% 0.80
100% 0.85
Electric Motors
Frame 324/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1477 rpm
Slip 1.53 %
Rated voltage 380 V
Rated current 42.8 A
L. R. Amperes 291 A
LRC 6.8x(Code H)
No load current 16.8 A
Rated torque 107 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 92.9
75% 93.1
100% 93.0
Power factor
50% 0.68
75% 0.78
100% 0.84
Electric Motors
Frame 324/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 41.6 A
L. R. Amperes 308 A
LRC 7.4x(Code J)
No load current 17.3 A
Rated torque 106 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 92.4
75% 93.0
100% 93.2
Power factor
50% 0.64
75% 0.75
100% 0.82
Electric Motors
Frame 324/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1481 rpm
Slip 1.27 %
Rated voltage 415 V
Rated current 41.1 A
L. R. Amperes 316 A
LRC 7.7x(Code J)
No load current 18.6 A
Rated torque 106 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 91.7
75% 92.6
100% 93.1
Power factor
50% 0.62
75% 0.73
100% 0.80
Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 57.4 A
L. R. Amperes 287 A
LRC 5.0x(Code E)
No load current 16.8 A
Rated torque 144 ft.lb
Locked rotor torque 170 %
Breakdown torque 180 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 93.6
75% 93.0
100% 92.4
Power factor
50% 0.78
75% 0.84
100% 0.86
Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 54.1 A
L. R. Amperes 303 A
LRC 5.6x(Code F)
No load current 17.3 A
Rated torque 143 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 93.6
75% 93.0
100% 93.0
Power factor
50% 0.74
75% 0.82
100% 0.86
Electric Motors
Frame 324/6T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 52.8 A
L. R. Amperes 317 A
LRC 6.0x(Code G)
No load current 18.6 A
Rated torque 143 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 568 lb
Efficiency
50% 93.0
75% 93.0
100% 93.0
Power factor
50% 0.72
75% 0.80
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
