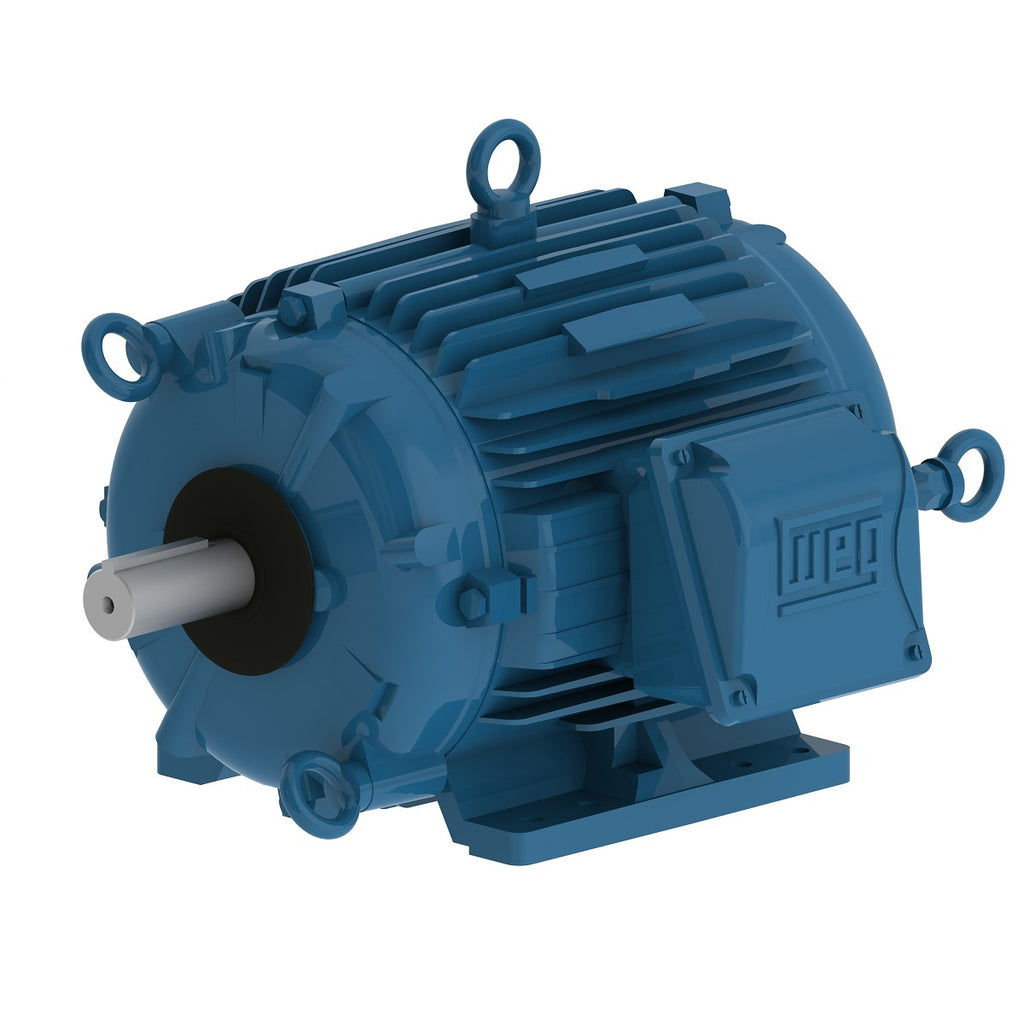

WEG 04018AT3ECT324T-W22 W22 Cooling Tower NEMA Premium Efficiency 40 HP 4P 324T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 04018AT3ECT324T-W22 W22 Cooling Tower NEMA Premium Efficiency 40 HP 4P 324T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 04018AT3ECT324T-W22 W22 Cooling Tower NEMA Premium Efficiency 40 HP 4P 324T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 04018AT3ECT324T-W22

GTIN : 7909018580494

MPN :

Dropship

Price:
$4,949.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC410 - TEAO


Electric Motors
Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 104-94.2/47.1 A
L. R. Amperes 635-575/287 A
LRC 6.1x(Code G)
No load current 29.3-34.0/17.0 A
Rated torque 118 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 93.6
75% 94.1
100% 94.1
Power factor
50% 0.72
75% 0.80
100% 0.85
Electric Motors
Frame 324T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1477 rpm
Slip 1.53 %
Rated voltage 380 V
Rated current 42.8 A
L. R. Amperes 291 A
LRC 6.8x(Code H)
No load current 16.8 A
Rated torque 107 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 92.9
75% 93.1
100% 93.0
Power factor
50% 0.68
75% 0.78
100% 0.84
Electric Motors
Frame 324T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 41.6 A
L. R. Amperes 308 A
LRC 7.4x(Code J)
No load current 17.3 A
Rated torque 106 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 92.4
75% 93.0
100% 93.2
Power factor
50% 0.64
75% 0.75
100% 0.82
Electric Motors
Frame 324T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1481 rpm
Slip 1.27 %
Rated voltage 415 V
Rated current 41.1 A
L. R. Amperes 316 A
LRC 7.7x(Code J)
No load current 18.6 A
Rated torque 106 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 91.7
75% 92.6
100% 93.1
Power factor
50% 0.62
75% 0.73
100% 0.80
Electric Motors
Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 57.4 A
L. R. Amperes 287 A
LRC 5.0x(Code E)
No load current 16.8 A
Rated torque 144 ft.lb
Locked rotor torque 170 %
Breakdown torque 180 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 93.6
75% 93.0
100% 92.4
Power factor
50% 0.78
75% 0.84
100% 0.86
Electric Motors
Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 54.1 A
L. R. Amperes 303 A
LRC 5.6x(Code F)
No load current 17.3 A
Rated torque 143 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 93.6
75% 93.0
100% 93.0
Power factor
50% 0.74
75% 0.82
100% 0.86
Electric Motors
Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 52.8 A
L. R. Amperes 317 A
LRC 6.0x(Code G)
No load current 18.6 A
Rated torque 143 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 532 lb
Efficiency
50% 93.0
75% 93.0
100% 93.0
Power factor
50% 0.72
75% 0.80
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
