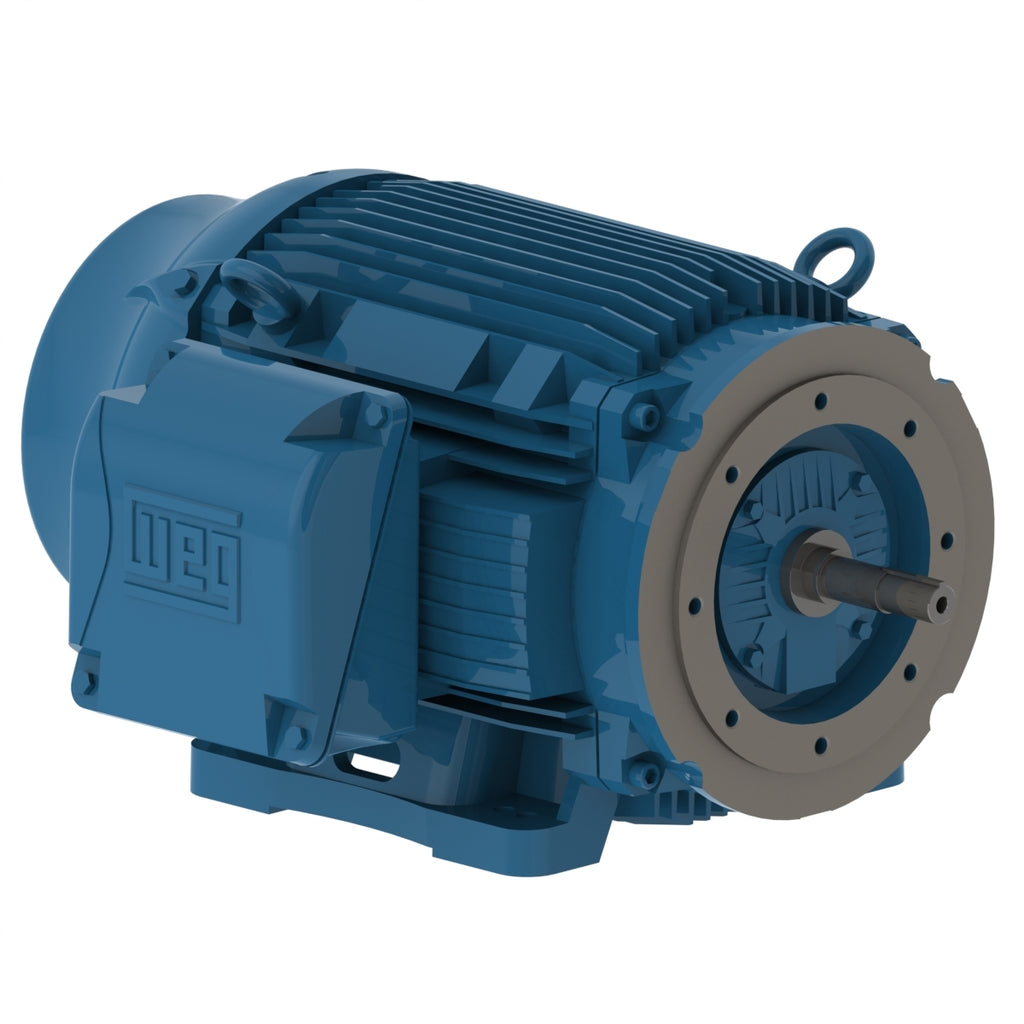

WEG 04012ET3E364JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 40 HP 6P 364/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 04012ET3E364JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 40 HP 6P 364/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 04012ET3E364JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 40 HP 6P 364/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 04012ET3E364JM-W22

GTIN :

MPN :

Dropship

Price:
$8,807.00

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 40 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 364/5JM
Output 40 HP (30 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1183 rpm
Slip 1.42 %
Rated voltage 230/460 V
Rated current 93.0/46.5 A
L. R. Amperes 595/298 A
LRC 6.4x(Code G)
No load current 33.0/16.5 A
Rated torque 178 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 915 lb
Efficiency
50% 93.6
75% 93.6
100% 94.1
Power factor
50% 0.73
75% 0.82
100% 0.86
Electric Motors
Frame 364/5JM
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 43.0 A
L. R. Amperes 275 A
LRC 6.4x(Code G)
No load current 16.0 A
Rated torque 160 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 915 lb
Efficiency
50% 92.4
75% 92.8
100% 92.5
Power factor
50% 0.68
75% 0.80
100% 0.84
Electric Motors
Frame 364/5JM
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 987 rpm
Slip 1.30 %
Rated voltage 400 V
Rated current 41.1 A
L. R. Amperes 296 A
LRC 7.2x(Code H)
No load current 17.0 A
Rated torque 160 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 915 lb
Efficiency
50% 92.3
75% 93.1
100% 93.0
Power factor
50% 0.66
75% 0.79
100% 0.83
Electric Motors
Frame 364/5JM
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 982 rpm
Slip 1.80 %
Rated voltage 415 V
Rated current 53.4 A
L. R. Amperes 320 A
LRC 6.0x(Code G)
No load current 17.8 A
Rated torque 214 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 915 lb
Efficiency
50% 93.0
75% 93.0
100% 93.0
Power factor
50% 0.73
75% 0.82
100% 0.84
Electric Motors
Frame 364/5JM
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 380 V
Rated current 57.8 A
L. R. Amperes 283 A
LRC 4.9x(Code E)
No load current 16.0 A
Rated torque 215 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 915 lb
Efficiency
50% 93.0
75% 92.4
100% 91.7
Power factor
50% 0.78
75% 0.84
100% 0.86
Electric Motors
Frame 364/5JM
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 55.1 A
L. R. Amperes 303 A
LRC 5.5x(Code F)
No load current 17.0 A
Rated torque 214 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 915 lb
Efficiency
50% 93.0
75% 93.0
100% 92.4
Power factor
50% 0.76
75% 0.83
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Pump Seal Mechanical Seal
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
