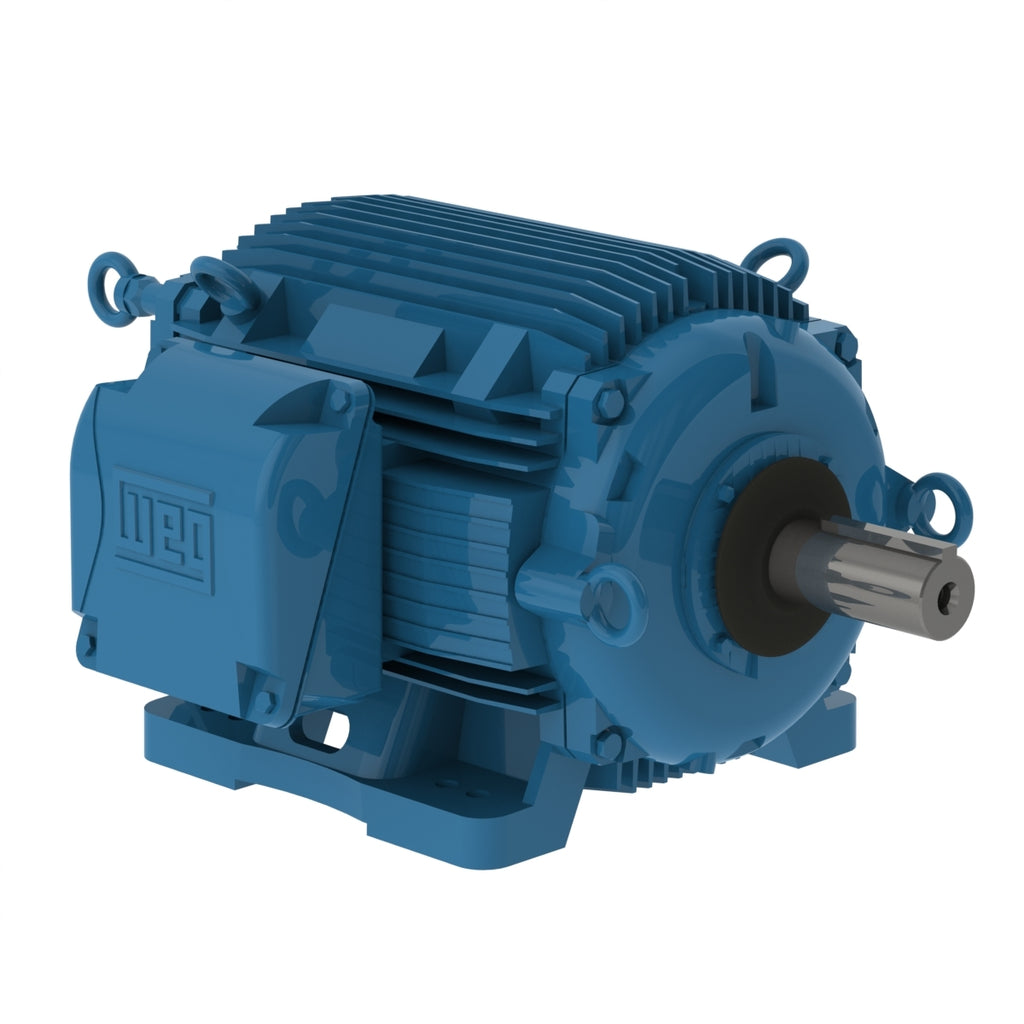

WEG 04012AT3ECT364TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 40 HP 6P 364/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 04012AT3ECT364TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 40 HP 6P 364/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 04012AT3ECT364TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 40 HP 6P 364/5T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 04012AT3ECT364TF1-W2

GTIN :

MPN :

Dropship

Price:
$8,540.00

Description

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 40 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC410 - TEAO


Electric Motors
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1183 rpm
Slip 1.42 %
Rated voltage 208-230/460 V
Rated current 103-93.0/46.5 A
L. R. Amperes 658-595/298 A
LRC 6.4x(Code G)
No load current 28.5-33.0/16.5 A
Rated torque 178 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 857 lb
Efficiency
50% 93.6
75% 93.6
100% 94.1
Power factor
50% 0.73
75% 0.82
100% 0.86
Electric Motors
Frame 364/5T
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 43.0 A
L. R. Amperes 275 A
LRC 6.4x(Code G)
No load current 16.0 A
Rated torque 160 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 857 lb
Efficiency
50% 92.4
75% 92.8
100% 92.5
Power factor
50% 0.68
75% 0.80
100% 0.84
Electric Motors
Frame 364/5T
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 987 rpm
Slip 1.30 %
Rated voltage 400 V
Rated current 41.1 A
L. R. Amperes 296 A
LRC 7.2x(Code H)
No load current 17.0 A
Rated torque 160 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 857 lb
Efficiency
50% 92.3
75% 93.1
100% 93.0
Power factor
50% 0.66
75% 0.79
100% 0.83
Electric Motors
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 982 rpm
Slip 1.80 %
Rated voltage 415 V
Rated current 53.4 A
L. R. Amperes 320 A
LRC 6.0x(Code G)
No load current 17.8 A
Rated torque 214 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 857 lb
Efficiency
50% 93.0
75% 93.0
100% 93.0
Power factor
50% 0.73
75% 0.82
100% 0.84
Electric Motors
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 380 V
Rated current 57.8 A
L. R. Amperes 283 A
LRC 4.9x(Code E)
No load current 16.0 A
Rated torque 215 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 857 lb
Efficiency
50% 93.0
75% 92.4
100% 91.7
Power factor
50% 0.78
75% 0.84
100% 0.86
Electric Motors
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 55.1 A
L. R. Amperes 303 A
LRC 5.5x(Code F)
No load current 17.0 A
Rated torque 214 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 857 lb
Efficiency
50% 93.0
75% 93.0
100% 92.4
Power factor
50% 0.76
75% 0.83
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
