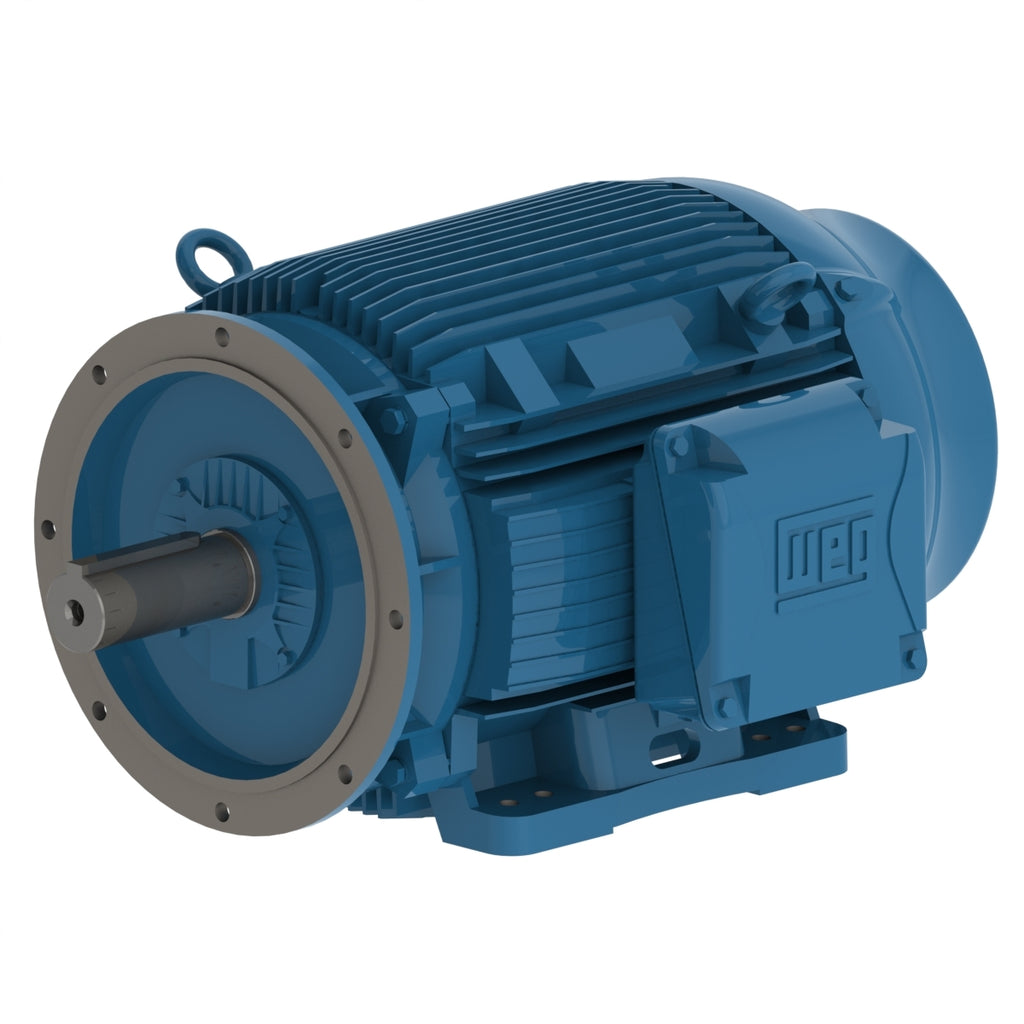

WEG 03736ET3Y200LFF-W22 W22 Tru-Metric IE3 50 HP 2P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B35L(E)
Roll over image to zoom in Click on image to zoom
WEG 03736ET3Y200LFF-W22 W22 Tru-Metric IE3 50 HP 2P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B35L(E)

WEG 03736ET3Y200LFF-W22 W22 Tru-Metric IE3 50 HP 2P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B35L(E)

WEGSKU: 03736ET3Y200LFF-W22

GTIN :

MPN :

Dropship

Price:
$5,789.00

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 50 HP
Mounting B35L(E)
Flange FF
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 200L
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 59.8 A
L. R. Amperes 508 A
LRC 8.5
No load current 22.5 A
Rated torque 73.7 ft.lb
Locked rotor torque 290 %
Breakdown torque 330 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 5.03 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 559 lb
Efficiency
50% 91.7
75% 93.0
100% 93.6
Power factor
50% 0.67
75% 0.77
100% 0.83
Electric Motors
Frame 200L
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 69.8 A
L. R. Amperes 489 A
LRC 7.0
No load current 21.0 A
Rated torque 89.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 5.03 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 559 lb
Efficiency
50% 92.8
75% 93.1
100% 93.7
Power factor
50% 0.75
75% 0.83
100% 0.86
Electric Motors
Frame 200L
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 67.9 A
L. R. Amperes 509 A
LRC 7.5
No load current 24.0 A
Rated torque 88.9 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 5.03 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 559 lb
Efficiency
50% 92.8
75% 93.1
100% 93.7
Power factor
50% 0.69
75% 0.79
100% 0.84
Electric Motors
Frame 200L
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 67.8 A
L. R. Amperes 542 A
LRC 8.0
No load current 27.0 A
Rated torque 88.7 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.03 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 559 lb
Efficiency
50% 92.8
75% 93.1
100% 93.7
Power factor
50% 0.64
75% 0.76
100% 0.81
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM50x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
