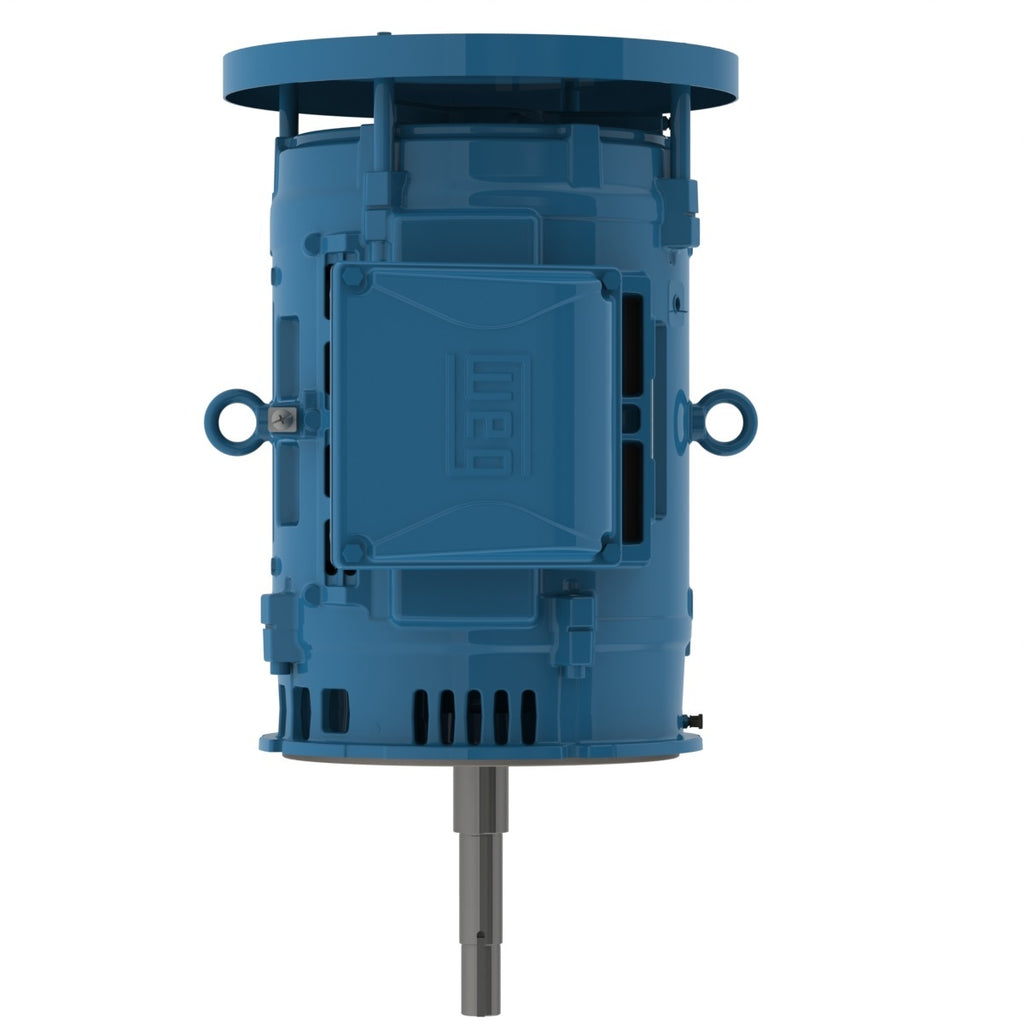

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 2 |
| Degree of Protection | IP23 |
| Synchronous speed | 3600 rpm |
| Output rating | 30 HP |
| Mounting | W-6 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 284/6JP |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3550 rpm |
| Slip | 1.39 % |
| Rated voltage | 230/460 V |
| Rated current | 70.0/35.0 A |
| L. R. Amperes | 441/221 A |
| LRC | 6.3x(Code G) |
| No load current | 25.8/12.9 A |
| Rated torque | 44.4 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 260 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 1.59 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 327 lb |
Efficiency
| 50% | 90.2 |
|---|---|
| 75% | 91.7 |
| 100% | 91.7 |
Power factor
| 50% | 0.73 |
|---|---|
| 75% | 0.82 |
| 100% | 0.86 |
Electric Motors
| Frame | 284/6JP |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2940 rpm |
| Slip | 2.00 % |
| Rated voltage | 380 V |
| Rated current | 35.0 A |
| L. R. Amperes | 231 A |
| LRC | 6.6x(Code G) |
| No load current | 11.0 A |
| Rated torque | 44.7 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 240 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 1.59 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 327 lb |
Efficiency
| 50% | 89.7 |
|---|---|
| 75% | 90.7 |
| 100% | 92.4 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.83 |
| 100% | 0.87 |
Electric Motors
| Frame | 284/6JP |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2950 rpm |
| Slip | 1.67 % |
| Rated voltage | 400 V |
| Rated current | 34.0 A |
| L. R. Amperes | 238 A |
| LRC | 7.0x(Code H) |
| No load current | 13.0 A |
| Rated torque | 44.5 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 260 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 1.59 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 327 lb |
Efficiency
| 50% | 89.8 |
|---|---|
| 75% | 90.8 |
| 100% | 92.4 |
Power factor
| 50% | 0.70 |
|---|---|
| 75% | 0.80 |
| 100% | 0.85 |
Electric Motors
| Frame | 284/6JP |
|---|---|
| Output | 25 HP (18.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2955 rpm |
| Slip | 1.50 % |
| Rated voltage | 415 V |
| Rated current | 33.6 A |
| L. R. Amperes | 225 A |
| LRC | 6.7x(Code H) |
| No load current | 14.0 A |
| Rated torque | 44.4 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 270 % |
| Locked rotor time | 16s (cold) 9s (hot) |
| Moment of inertia (J) | 1.59 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 327 lb |
Efficiency
| 50% | 89.8 |
|---|---|
| 75% | 90.8 |
| 100% | 92.4 |
Power factor
| 50% | 0.66 |
|---|---|
| 75% | 0.77 |
| 100% | 0.83 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | With |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
