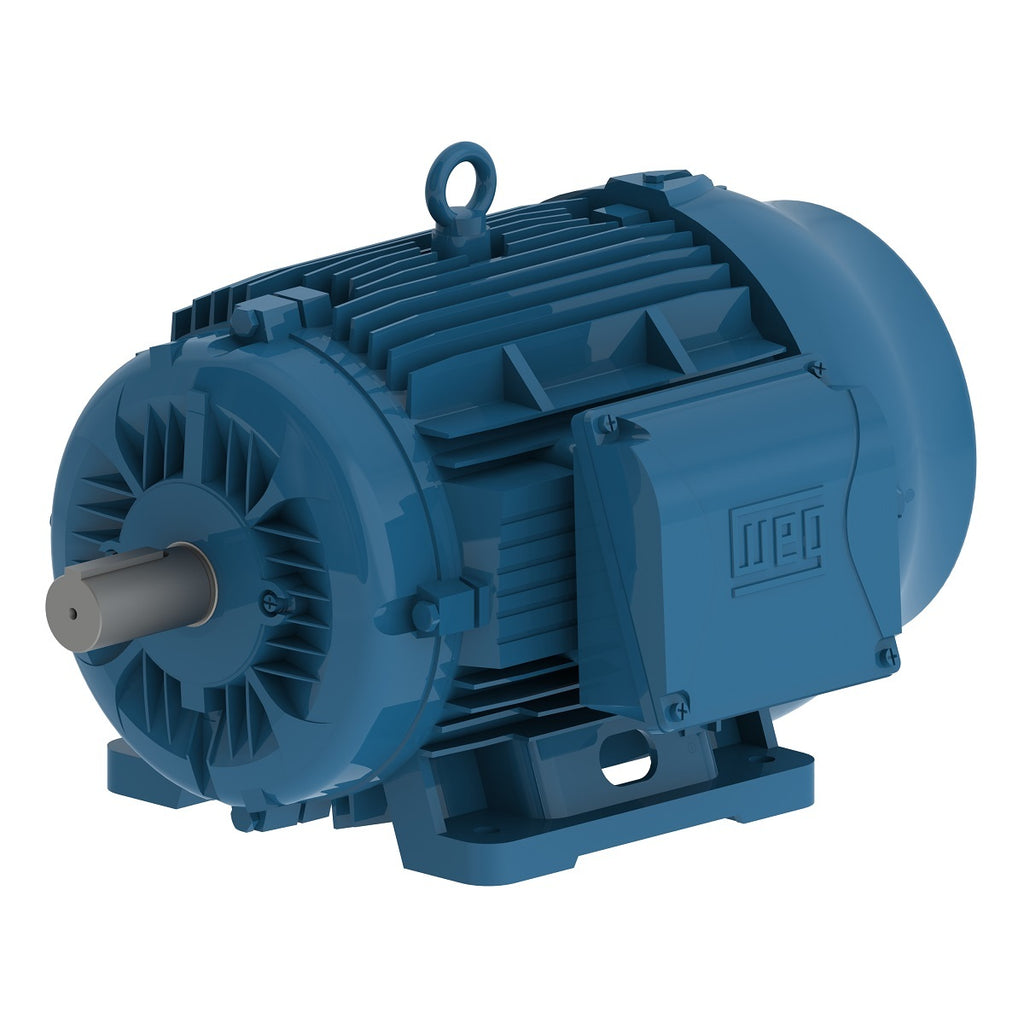

WEG 03018ET3Y200L-W22 W22 Tru-Metric IE3 40 HP 4P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 03018ET3Y200L-W22 W22 Tru-Metric IE3 40 HP 4P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 03018ET3Y200L-W22 W22 Tru-Metric IE3 40 HP 4P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 03018ET3Y200L-W22

GTIN : 7891327437616

MPN :

Dropship

Price:
$4,312.00

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 200L
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1785 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 49.4 A
L. R. Amperes 454 A
LRC 9.2
No load current 25.5 A
Rated torque 118 ft.lb
Locked rotor torque 340 %
Breakdown torque 350 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 8.23 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 575 lb
Efficiency
50% 92.6
75% 93.7
100% 94.1
Power factor
50% 0.63
75% 0.75
100% 0.81
Electric Motors
Frame 200L
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 58.0 A
L. R. Amperes 423 A
LRC 7.3
No load current 24.5 A
Rated torque 142 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 8.23 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 575 lb
Efficiency
50% 93.4
75% 93.7
100% 93.6
Power factor
50% 0.69
75% 0.79
100% 0.84
Electric Motors
Frame 200L
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 56.4 A
L. R. Amperes 423 A
LRC 7.5
No load current 27.0 A
Rated torque 142 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 8.23 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 575 lb
Efficiency
50% 93.0
75% 93.6
100% 93.6
Power factor
50% 0.64
75% 0.75
100% 0.82
Electric Motors
Frame 200L
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1485 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 55.7 A
L. R. Amperes 457 A
LRC 8.2
No load current 27.0 A
Rated torque 141 ft.lb
Locked rotor torque 310 %
Breakdown torque 310 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 8.23 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 575 lb
Efficiency
50% 92.8
75% 93.3
100% 93.6
Power factor
50% 0.60
75% 0.72
100% 0.80
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM50x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
