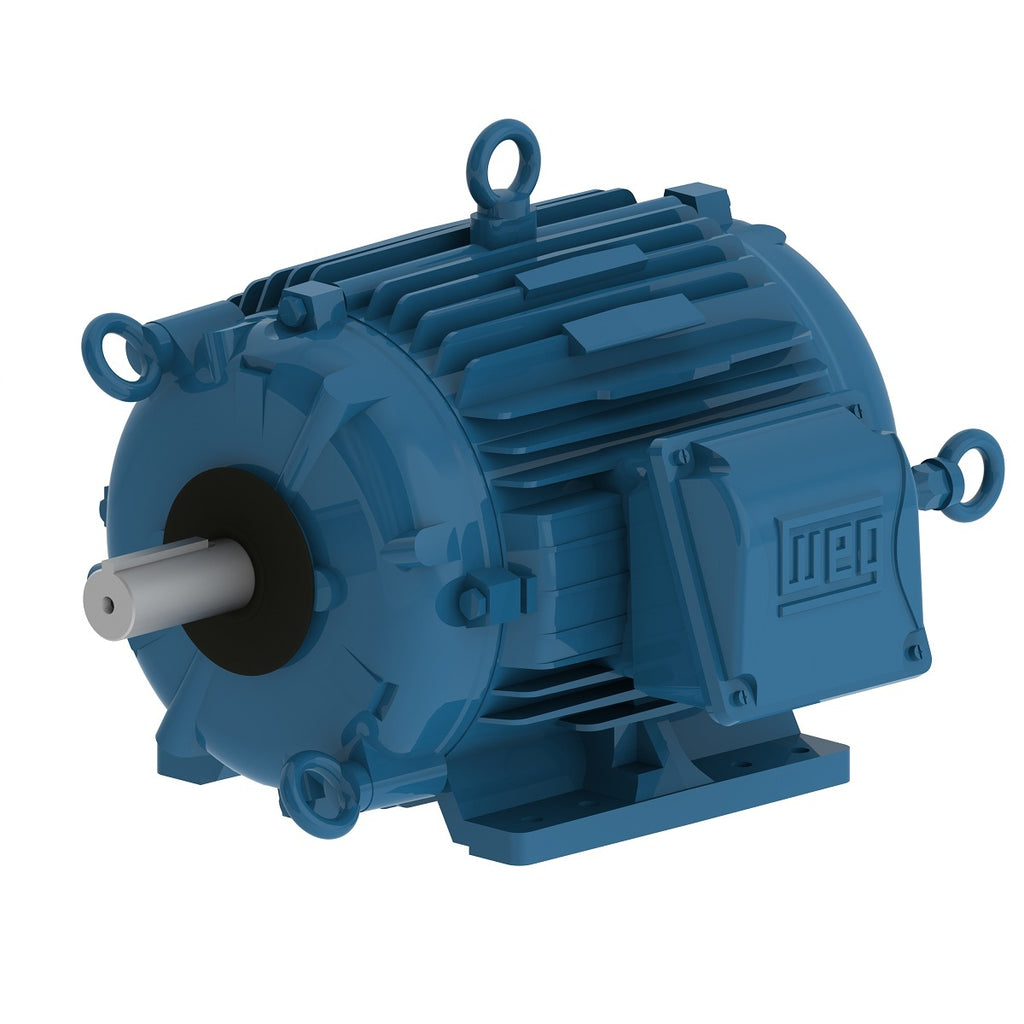

WEG 03018AT3ECT286T-W22 W22 Cooling Tower NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 03018AT3ECT286T-W22 W22 Cooling Tower NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 03018AT3ECT286T-W22 W22 Cooling Tower NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 03018AT3ECT286T-W22

GTIN : 7909018581057

MPN :

Dropship

Price:
$3,850.00

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC410 - TEAO


Electric Motors
Frame 284/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 77.6-70.2/35.1 A
L. R. Amperes 474-428/214 A
LRC 6.1x(Code G)
No load current 21.2-24.6/12.3 A
Rated torque 89.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 93.0
75% 93.0
100% 93.6
Power factor
50% 0.70
75% 0.80
100% 0.84
Electric Motors
Frame 284/6T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 35.7 A
L. R. Amperes 214 A
LRC 6.0x(Code G)
No load current 12.2 A
Rated torque 89.6 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 92.1
75% 92.5
100% 92.6
Power factor
50% 0.70
75% 0.81
100% 0.85
Electric Motors
Frame 284/6T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 34.3 A
L. R. Amperes 230 A
LRC 6.7x(Code H)
No load current 13.1 A
Rated torque 89.3 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 92.1
75% 92.8
100% 92.7
Power factor
50% 0.67
75% 0.79
100% 0.84
Electric Motors
Frame 284/6T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 33.9 A
L. R. Amperes 247 A
LRC 7.3x(Code J)
No load current 13.8 A
Rated torque 89.0 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 91.6
75% 92.5
100% 92.6
Power factor
50% 0.64
75% 0.76
100% 0.82
Electric Motors
Frame 284/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 43.1 A
L. R. Amperes 228 A
LRC 5.3x(Code F)
No load current 12.2 A
Rated torque 108 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 90.0
75% 90.2
100% 90.2
Power factor
50% 0.76
75% 0.83
100% 0.86
Electric Motors
Frame 284/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 41.1 A
L. R. Amperes 247 A
LRC 6.0x(Code G)
No load current 13.1 A
Rated torque 108 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 90.5
75% 91.0
100% 91.0
Power factor
50% 0.73
75% 0.82
100% 0.85
Electric Motors
Frame 284/6T
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 39.7 A
L. R. Amperes 238 A
LRC 6.0x(Code G)
No load current 13.8 A
Rated torque 108 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 429 lb
Efficiency
50% 91.2
75% 91.7
100% 91.7
Power factor
50% 0.70
75% 0.80
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
