Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 50 Hz |
| Voltage | 380-415 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1500 rpm |
| Output rating | 30 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |

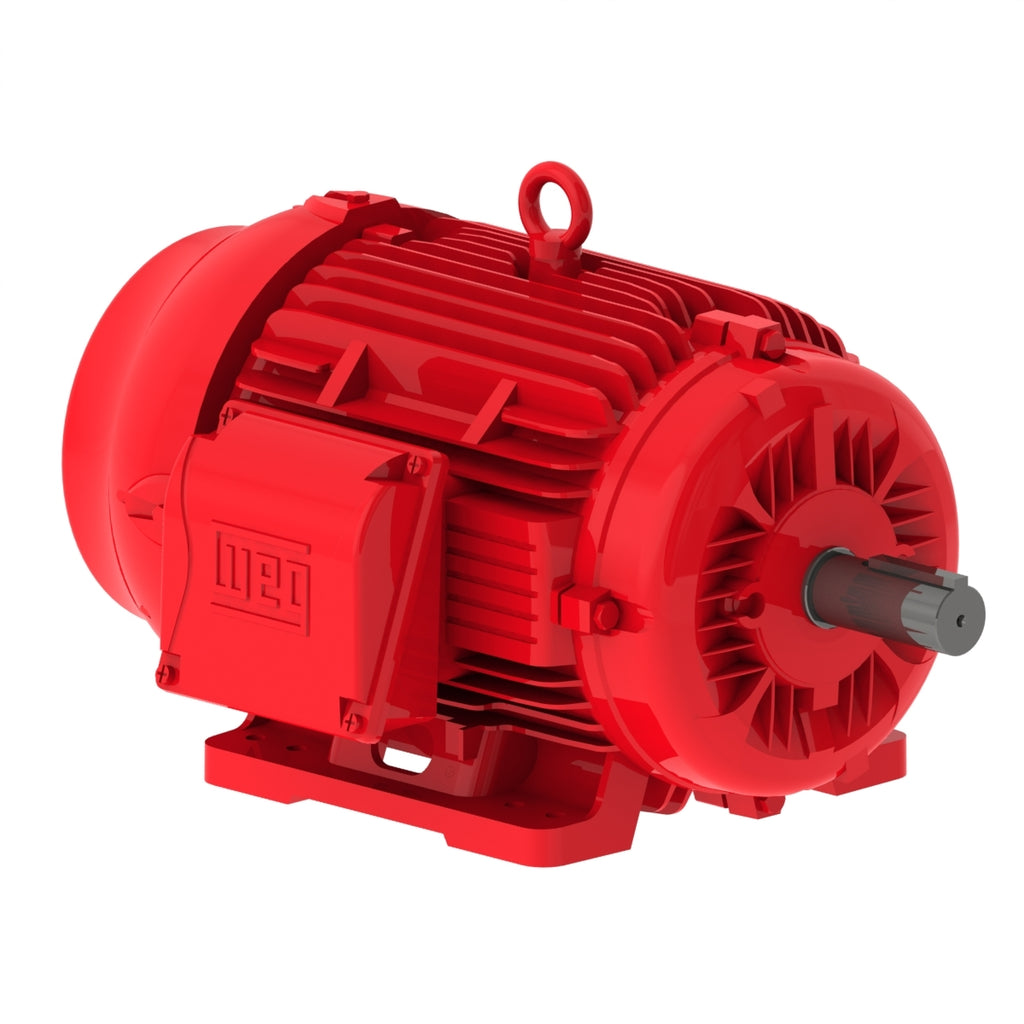

Electric Motors
| Frame | 284/6TS |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1455 rpm |
| Slip | 3.00 % |
| Rated voltage | 380 V |
| Rated current | 41.6 A |
| L. R. Amperes | 233 A |
| LRC | 5.6x(Code F) |
| No load current | 14.0 A |
| Rated torque | 108 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 215 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.13 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 61.0 dB(A) |
| Approx. weight³ | 375 lb |
Efficiency
| 50% | 92.4 |
|---|---|
| 75% | 93.0 |
| 100% | 92.4 |
Power factor
| 50% | 0.78 |
|---|---|
| 75% | 0.85 |
| 100% | 0.87 |
Electric Motors
| Frame | 284/6TS |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1465 rpm |
| Slip | 2.33 % |
| Rated voltage | 415 V |
| Rated current | 39.0 A |
| L. R. Amperes | 257 A |
| LRC | 6.6x(Code G) |
| No load current | 15.8 A |
| Rated torque | 108 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 265 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 4.13 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 61.0 dB(A) |
| Approx. weight³ | 375 lb |
Efficiency
| 50% | 92.4 |
|---|---|
| 75% | 93.0 |
| 100% | 92.4 |
Power factor
| 50% | 0.72 |
|---|---|
| 75% | 0.81 |
| 100% | 0.85 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 3002 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
