WEG 02536ST3QIE284TSC-W2 W22 IEEE 841 NEMA Premium Efficiency 25 HP 2P 284/6TSC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

Roll over image to zoom in Click on image to zoom

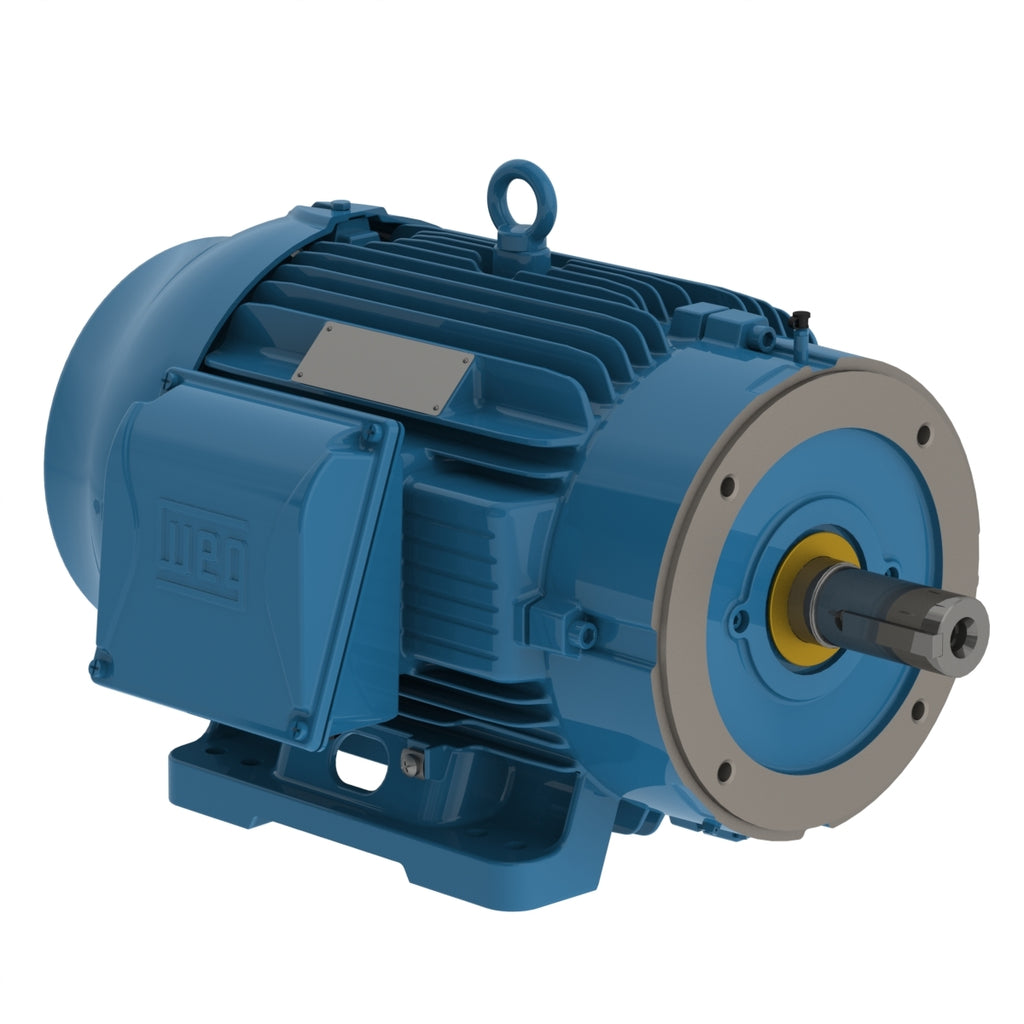

WEG 02536ST3QIE284TSC-W2 W22 IEEE 841 NEMA Premium Efficiency 25 HP 2P 284/6TSC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

Name: WEG 02536ST3QIE284TSC-W2 W22 IEEE 841 NEMA Premium Efficiency 25 HP 2P 284/6TSC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Brand: WEG
SKU: 02536ST3QIE284TSC-W2
Price: 3568.0 USD
Availability: InStock

WEGSKU: 02536ST3QIE284TSC-W2

GTIN :

MPN :

Dropship

Price:

$3,568.00

Quantity:

Share this product

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Standard	NEMA MG-1
Frequency	60 Hz
Voltage	460 V
Number of poles	2
Degree of Protection	IP55
Synchronous speed	3600 rpm
Output rating	25 HP
Mounting	F-1
Flange	C
Terminal box¹	Left position
Enclosure	IC411 - TEFC

Specifications

460 V 60 Hz 2P 380 V 50 Hz 2P IE3 400 V 50 Hz 2P IE3 415 V 50 Hz 2P IE3 380 V 50 Hz 2P IE1 400 V 50 Hz 2P IE1 415 V 50 Hz 2P IE2

Electric Motors

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	460 V
Rated current	29.1 A
L. R. Amperes	183 A
LRC	6.3x(Code G)
No load current	8.20 A
Rated torque	37.0 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	30s (cold) 17s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	91.0
75%	91.7
100%	91.7

Power factor

50%	0.78
75%	0.85
100%	0.87

Electric Motors

Frame	284/6TSC
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	380 V
Rated current	28.5 A
L. R. Amperes	177 A
LRC	6.2x(Code G)
No load current	8.00 A
Rated torque	35.7 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	25s (cold) 14s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	90.2
75%	90.7
100%	91.9

Power factor

50%	0.79
75%	0.85
100%	0.87

Electric Motors

Frame	284/6TSC
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	27.4 A
L. R. Amperes	189 A
LRC	6.9x(Code H)
No load current	8.20 A
Rated torque	35.6 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	25s (cold) 14s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	90.3
75%	91.1
100%	91.9

Power factor

50%	0.76
75%	0.84
100%	0.86

Electric Motors

Frame	284/6TSC
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	26.7 A
L. R. Amperes	200 A
LRC	7.5x(Code J)
No load current	8.70 A
Rated torque	35.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	25s (cold) 14s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	89.8
75%	91.1
100%	91.9

Power factor

50%	0.73
75%	0.83
100%	0.85

Electric Motors

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	35.7 A
L. R. Amperes	175 A
LRC	4.9x(Code E)
No load current	7.70 A
Rated torque	45.0 ft.lb
Locked rotor torque	180 %
Breakdown torque	200 %
Locked rotor time	25s (cold) 14s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	89.0
75%	89.5
100%	89.5

Power factor

50%	0.83
75%	0.87
100%	0.88

Electric Motors

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	33.6 A
L. R. Amperes	185 A
LRC	5.5x(Code F)
No load current	8.20 A
Rated torque	44.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	200 %
Locked rotor time	25s (cold) 14s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	90.0
75%	90.2
100%	90.2

Power factor

50%	0.81
75%	0.87
100%	0.88

Electric Motors

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	415 V
Rated current	32.5 A
L. R. Amperes	202 A
LRC	6.2x(Code G)
No load current	8.70 A
Rated torque	44.7 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	25s (cold) 14s (hot)
Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	419 lb

Efficiency

50%	91.0
75%	91.0
100%	91.0

Power factor

50%	0.79
75%	0.86
100%	0.87

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
