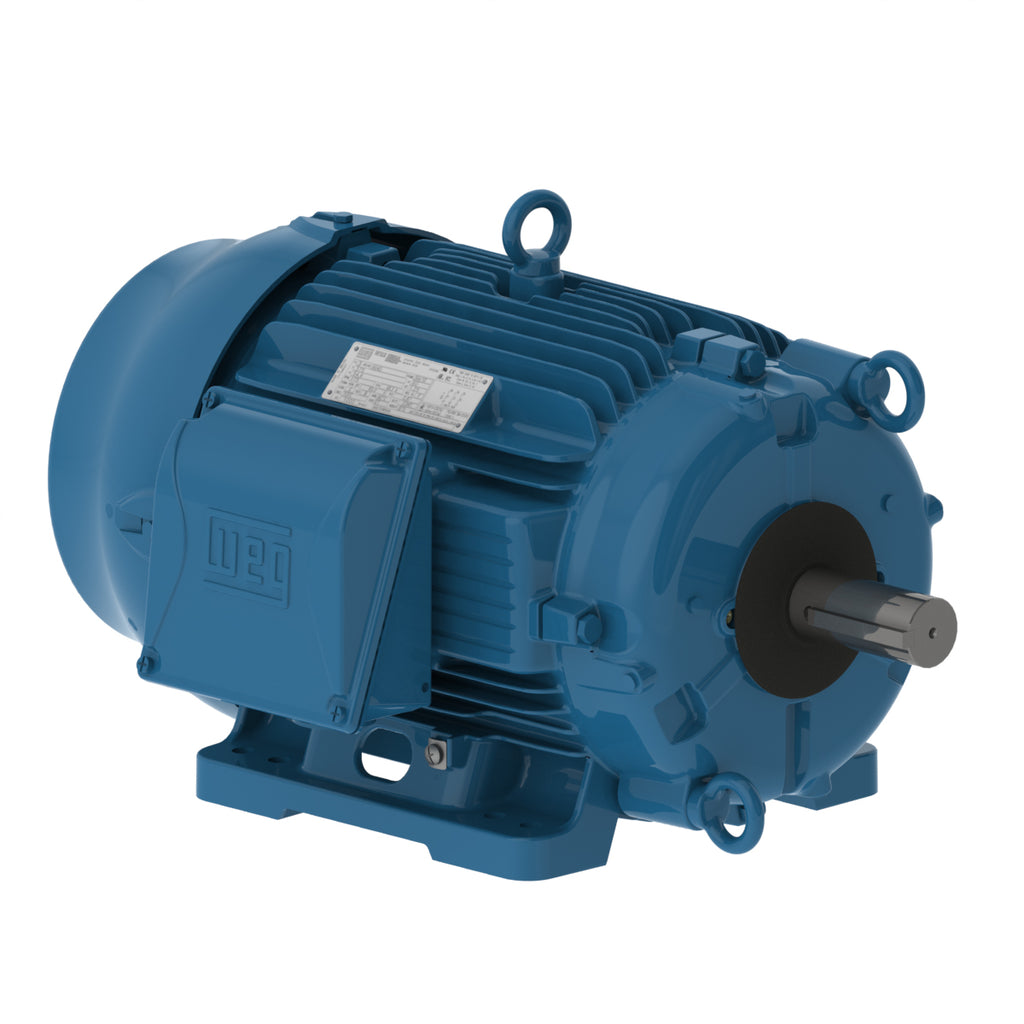

WEG 02518ET3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 02518ET3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 02518ET3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 02518ET3ECT284TF1-W2

Dropship

Get it by Thu, Feb 12 - Tue, Feb 17

Price:
$2,880.04

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 25 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 59.0/29.5 A
L. R. Amperes 366/183 A
LRC 6.2x(Code G)
No load current 22.0/11.0 A
Rated torque 74.2 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 92.4
75% 93.0
100% 93.6
Power factor
50% 0.70
75% 0.80
100% 0.84
Electric Motors
Frame 284T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 29.1 A
L. R. Amperes 175 A
LRC 6.0x(Code G)
No load current 11.0 A
Rated torque 71.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 91.3
75% 92.1
100% 92.1
Power factor
50% 0.69
75% 0.80
100% 0.85
Electric Motors
Frame 284T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1473 rpm
Slip 1.80 %
Rated voltage 400 V
Rated current 28.2 A
L. R. Amperes 189 A
LRC 6.7x(Code H)
No load current 11.7 A
Rated torque 71.3 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 91.3
75% 92.5
100% 92.6
Power factor
50% 0.65
75% 0.78
100% 0.83
Electric Motors
Frame 284T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 27.5 A
L. R. Amperes 198 A
LRC 7.2x(Code J)
No load current 12.4 A
Rated torque 71.2 ft.lb
Locked rotor torque 270 %
Breakdown torque 330 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 91.2
75% 92.5
100% 92.7
Power factor
50% 0.62
75% 0.75
100% 0.82
Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 35.9 A
L. R. Amperes 190 A
LRC 5.3x(Code F)
No load current 11.0 A
Rated torque 90.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 92.4
75% 91.7
100% 91.0
Power factor
50% 0.76
75% 0.84
100% 0.86
Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 34.3 A
L. R. Amperes 189 A
LRC 5.5x(Code F)
No load current 11.7 A
Rated torque 89.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 92.4
75% 92.4
100% 91.7
Power factor
50% 0.73
75% 0.82
100% 0.85
Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 33.2 A
L. R. Amperes 196 A
LRC 5.9x(Code G)
No load current 12.4 A
Rated torque 89.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 393 lb
Efficiency
50% 92.4
75% 92.4
100% 92.4
Power factor
50% 0.70
75% 0.80
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
