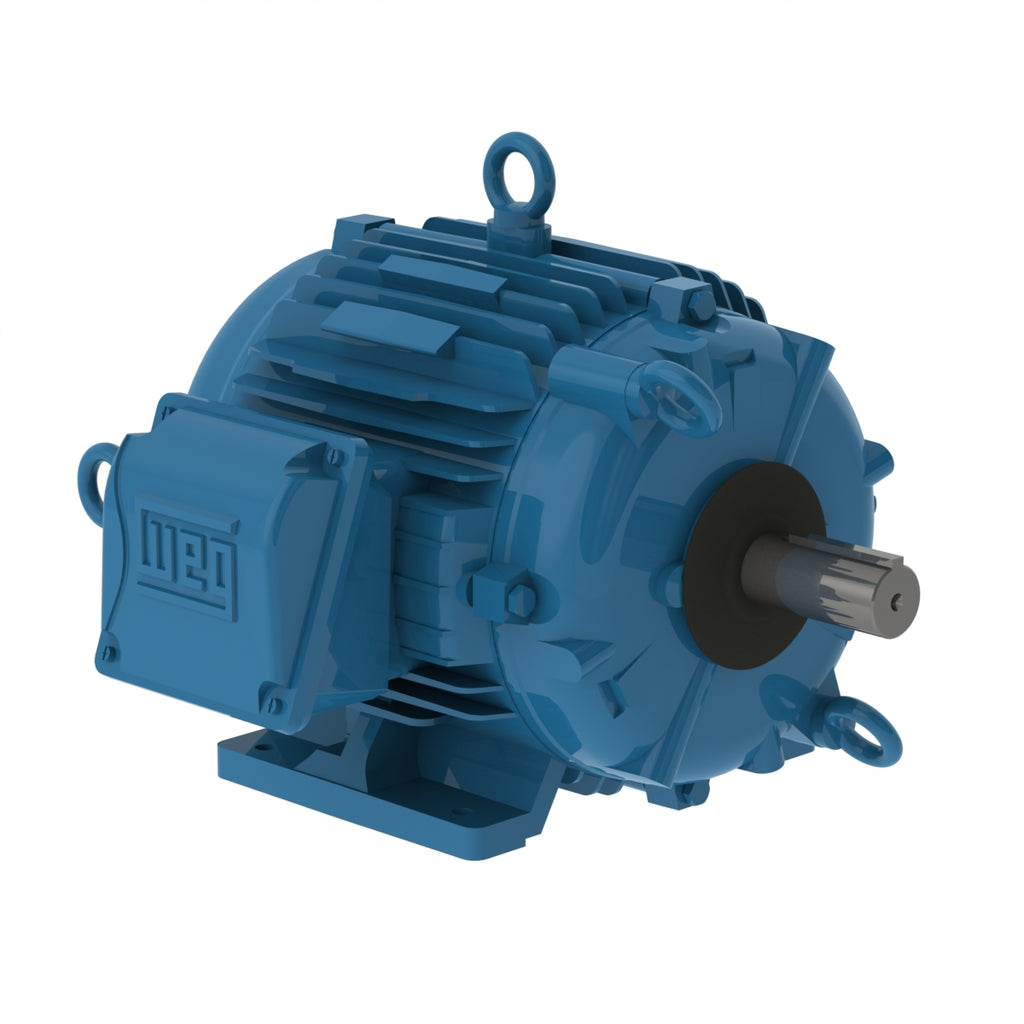

WEG 02518AT3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 25 HP 4P 284T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 02518AT3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 25 HP 4P 284T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 02518AT3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 25 HP 4P 284T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 02518AT3ECT284TF1-W2

Dropship

Get it by Thu, Feb 12 - Tue, Feb 17

Price:
$2,966.37

Description

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 25 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC410 - TEAO


Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 65.2-59.0/29.5 A
L. R. Amperes 404-366/183 A
LRC 6.2x(Code G)
No load current 19.0-22.0/11.0 A
Rated torque 74.2 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 92.4
75% 93.0
100% 93.6
Power factor
50% 0.70
75% 0.80
100% 0.84
Electric Motors
Frame 284T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 29.1 A
L. R. Amperes 175 A
LRC 6.0x(Code G)
No load current 11.0 A
Rated torque 71.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 91.3
75% 92.1
100% 92.1
Power factor
50% 0.69
75% 0.80
100% 0.85
Electric Motors
Frame 284T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1473 rpm
Slip 1.80 %
Rated voltage 400 V
Rated current 28.2 A
L. R. Amperes 189 A
LRC 6.7x(Code H)
No load current 11.7 A
Rated torque 71.3 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 91.3
75% 92.5
100% 92.6
Power factor
50% 0.65
75% 0.78
100% 0.83
Electric Motors
Frame 284T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 27.5 A
L. R. Amperes 198 A
LRC 7.2x(Code J)
No load current 12.4 A
Rated torque 71.2 ft.lb
Locked rotor torque 270 %
Breakdown torque 330 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 91.2
75% 92.5
100% 92.7
Power factor
50% 0.62
75% 0.75
100% 0.82
Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 35.9 A
L. R. Amperes 190 A
LRC 5.3x(Code F)
No load current 11.0 A
Rated torque 90.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 92.4
75% 91.7
100% 91.0
Power factor
50% 0.76
75% 0.84
100% 0.86
Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 34.3 A
L. R. Amperes 189 A
LRC 5.5x(Code F)
No load current 11.7 A
Rated torque 89.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 92.4
75% 92.4
100% 91.7
Power factor
50% 0.73
75% 0.82
100% 0.85
Electric Motors
Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 33.2 A
L. R. Amperes 196 A
LRC 5.9x(Code G)
No load current 12.4 A
Rated torque 89.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 375 lb
Efficiency
50% 92.4
75% 92.4
100% 92.4
Power factor
50% 0.70
75% 0.80
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
