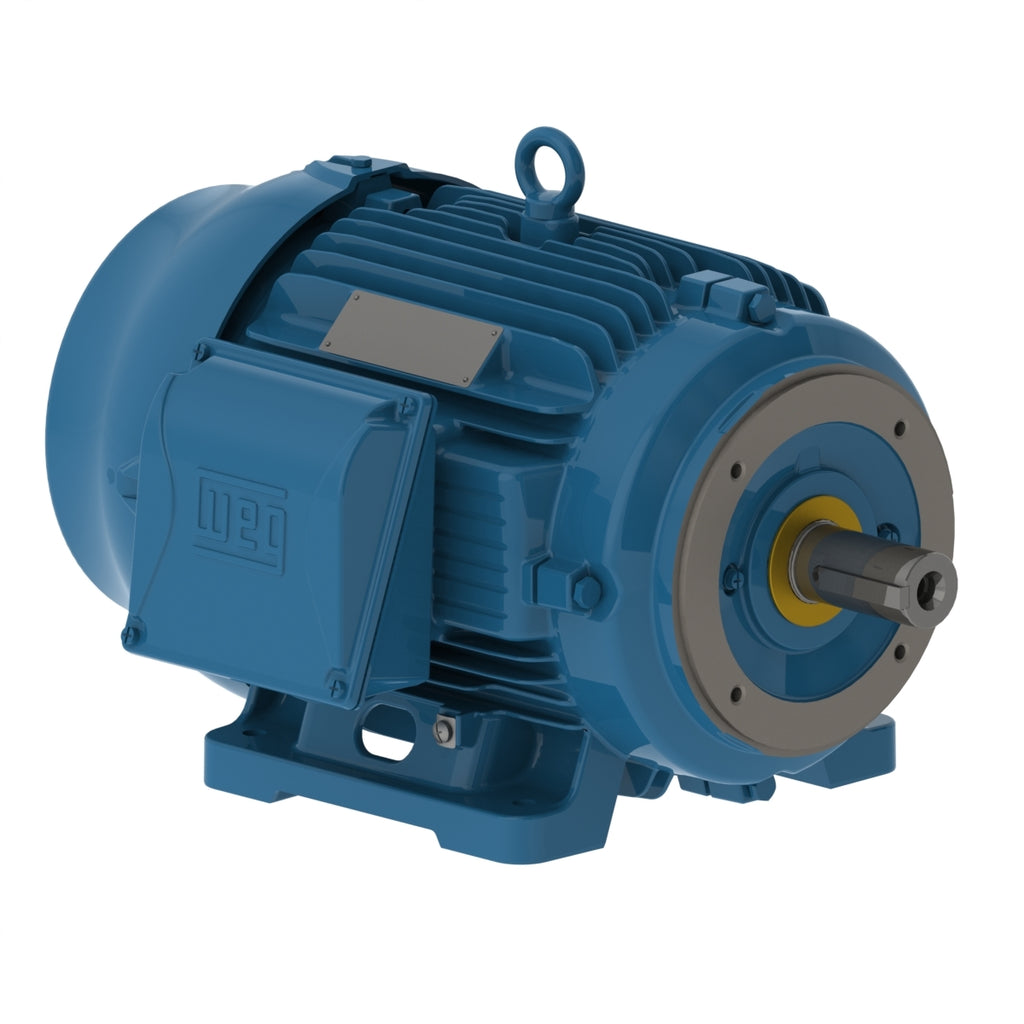

WEG 02512ST3QIE324TC-W22 W22 IEEE 841 NEMA Premium Efficiency 25 HP 6P 324/6TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 02512ST3QIE324TC-W22 W22 IEEE 841 NEMA Premium Efficiency 25 HP 6P 324/6TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 02512ST3QIE324TC-W22 W22 IEEE 841 NEMA Premium Efficiency 25 HP 6P 324/6TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 02512ST3QIE324TC-W22

Dropship

Get it by Thu, Feb 12 - Tue, Feb 17

Price:
$4,838.04

Description

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 25 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 324/6TC
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 460 V
Rated current 30.4 A
L. R. Amperes 182 A
LRC 6.0x(Code G)
No load current 12.5 A
Rated torque 112 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 565 lb
Efficiency
50% 91.7
75% 93.0
100% 93.0
Power factor
50% 0.65
75% 0.77
100% 0.82
Electric Motors
Frame 324/6TC
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 30.0 A
L. R. Amperes 174 A
LRC 5.8x(Code G)
No load current 12.3 A
Rated torque 108 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 565 lb
Efficiency
50% 91.1
75% 91.8
100% 91.6
Power factor
50% 0.63
75% 0.76
100% 0.83
Electric Motors
Frame 324/6TC
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 35.1 A
L. R. Amperes 183 A
LRC 5.2x(Code F)
No load current 13.3 A
Rated torque 135 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 565 lb
Efficiency
50% 91.7
75% 92.4
100% 91.7
Power factor
50% 0.68
75% 0.79
100% 0.83
Electric Motors
Frame 324/6TC
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 34.2 A
L. R. Amperes 192 A
LRC 5.6x(Code F)
No load current 14.2 A
Rated torque 135 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 565 lb
Efficiency
50% 91.7
75% 92.4
100% 91.7
Power factor
50% 0.65
75% 0.77
100% 0.82
Electric Motors
Frame 324/6TC
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 36.3 A
L. R. Amperes 171 A
LRC 4.7x(Code D)
No load current 12.3 A
Rated torque 136 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 565 lb
Efficiency
50% 91.7
75% 91.7
100% 91.0
Power factor
50% 0.71
75% 0.81
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Foot flatness (0.005 pol) 0.127 mm
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
