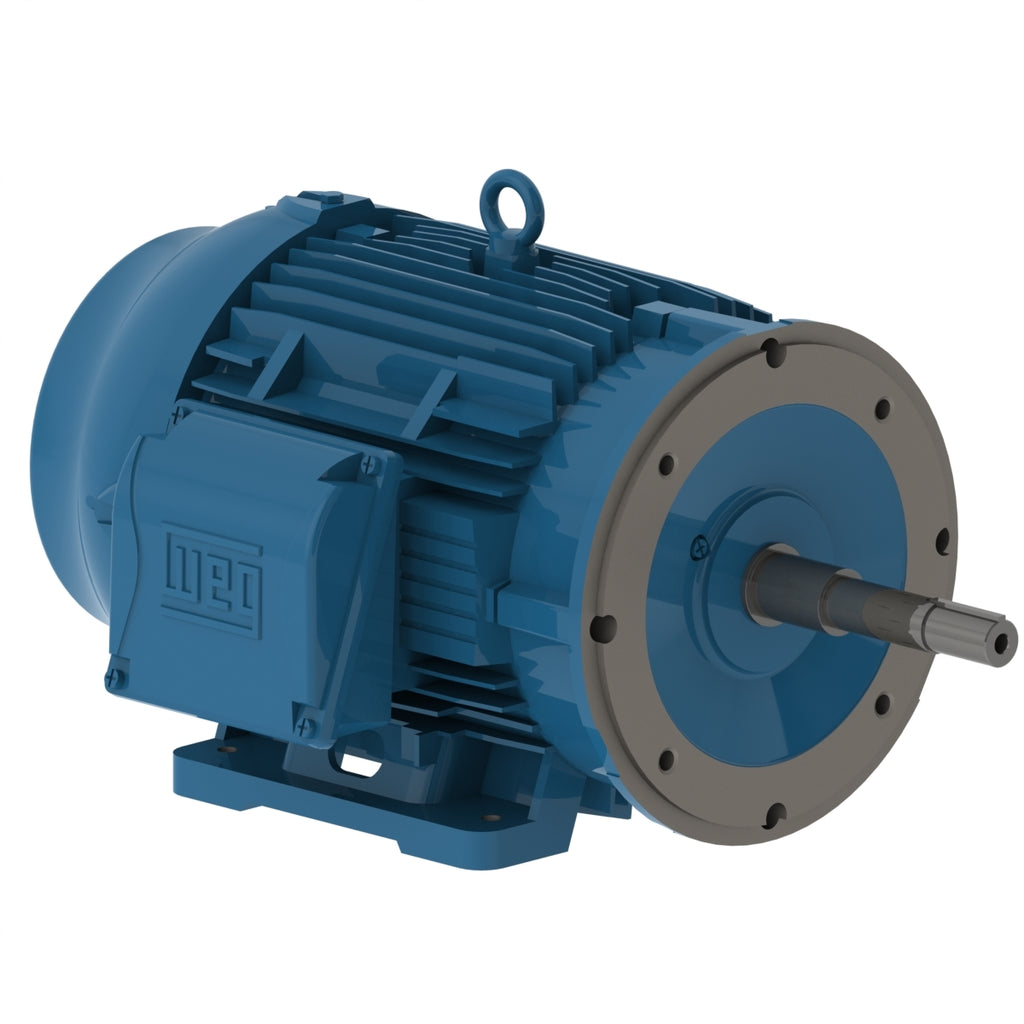

WEG 02512ET3E324JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 25 HP 6P 324/6JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 02512ET3E324JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 25 HP 6P 324/6JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 02512ET3E324JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 25 HP 6P 324/6JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 02512ET3E324JP-W22

Dropship

Get it by Thu, Feb 12 - Tue, Feb 17

Price:
$5,315.08

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 25 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 324/6JP
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 61.6/30.8 A
L. R. Amperes 382/191 A
LRC 6.2x(Code G)
No load current 28.0/14.0 A
Rated torque 111 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 561 lb
Efficiency
50% 92.4
75% 93.0
100% 93.0
Power factor
50% 0.65
75% 0.77
100% 0.81
Electric Motors
Frame 324/6JP
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 30.3 A
L. R. Amperes 182 A
LRC 6.0x(Code G)
No load current 13.2 A
Rated torque 107 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 561 lb
Efficiency
50% 91.1
75% 91.8
100% 91.6
Power factor
50% 0.63
75% 0.76
100% 0.82
Electric Motors
Frame 324/6JP
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 35.1 A
L. R. Amperes 190 A
LRC 5.4x(Code F)
No load current 14.2 A
Rated torque 134 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 561 lb
Efficiency
50% 91.7
75% 92.4
100% 91.7
Power factor
50% 0.68
75% 0.79
100% 0.83
Electric Motors
Frame 324/6JP
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 34.2 A
L. R. Amperes 198 A
LRC 5.8x(Code G)
No load current 14.9 A
Rated torque 134 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 561 lb
Efficiency
50% 91.7
75% 92.4
100% 91.7
Power factor
50% 0.65
75% 0.77
100% 0.82
Electric Motors
Frame 324/6JP
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 380 V
Rated current 36.8 A
L. R. Amperes 180 A
LRC 4.9x(Code E)
No load current 13.2 A
Rated torque 135 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 561 lb
Efficiency
50% 91.7
75% 92.4
100% 91.0
Power factor
50% 0.71
75% 0.81
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Gasket
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
