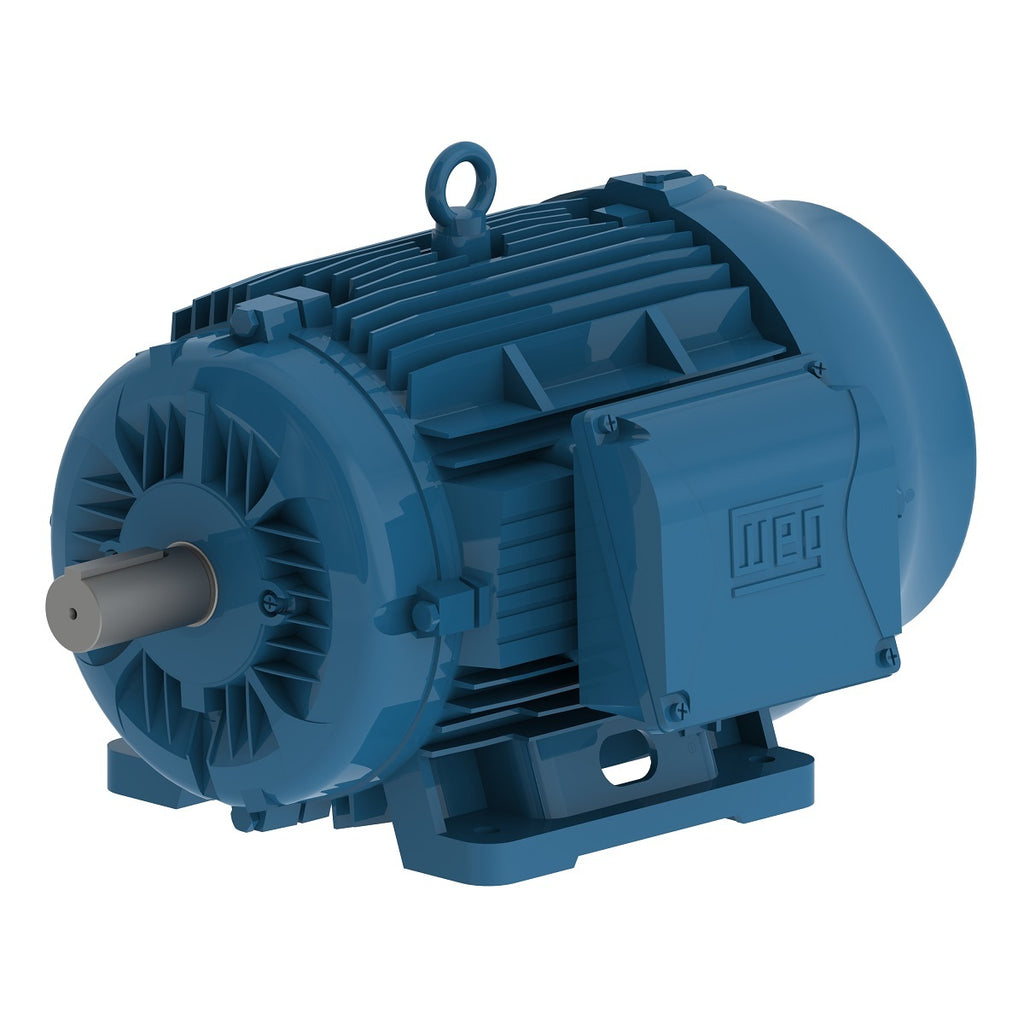

WEG 02236ET3Y180M-W22 W22 Tru-Metric IE3 30 HP 2P 180M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 02236ET3Y180M-W22 W22 Tru-Metric IE3 30 HP 2P 180M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 02236ET3Y180M-W22 W22 Tru-Metric IE3 30 HP 2P 180M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 02236ET3Y180M-W22

Dropship

Get it by Thu, Feb 12 - Tue, Feb 17

Price:
$3,107.88

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 35.2 A
L. R. Amperes 341 A
LRC 9.7
No load current 14.0 A
Rated torque 44.2 ft.lb
Locked rotor torque 380 %
Breakdown torque 380 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 397 lb
Efficiency
50% 90.2
75% 91.7
100% 92.4
Power factor
50% 0.71
75% 0.81
100% 0.85
Electric Motors
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 41.0 A
L. R. Amperes 328 A
LRC 8.0
No load current 13.0 A
Rated torque 53.3 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 397 lb
Efficiency
50% 92.2
75% 92.7
100% 92.7
Power factor
50% 0.77
75% 0.84
100% 0.88
Electric Motors
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 39.8 A
L. R. Amperes 318 A
LRC 8.0
No load current 15.0 A
Rated torque 53.2 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 397 lb
Efficiency
50% 91.8
75% 92.7
100% 92.7
Power factor
50% 0.73
75% 0.82
100% 0.86
Electric Motors
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 38.8 A
L. R. Amperes 338 A
LRC 8.7
No load current 17.0 A
Rated torque 53.1 ft.lb
Locked rotor torque 320 %
Breakdown torque 360 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 397 lb
Efficiency
50% 91.5
75% 92.5
100% 92.7
Power factor
50% 0.69
75% 0.79
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
