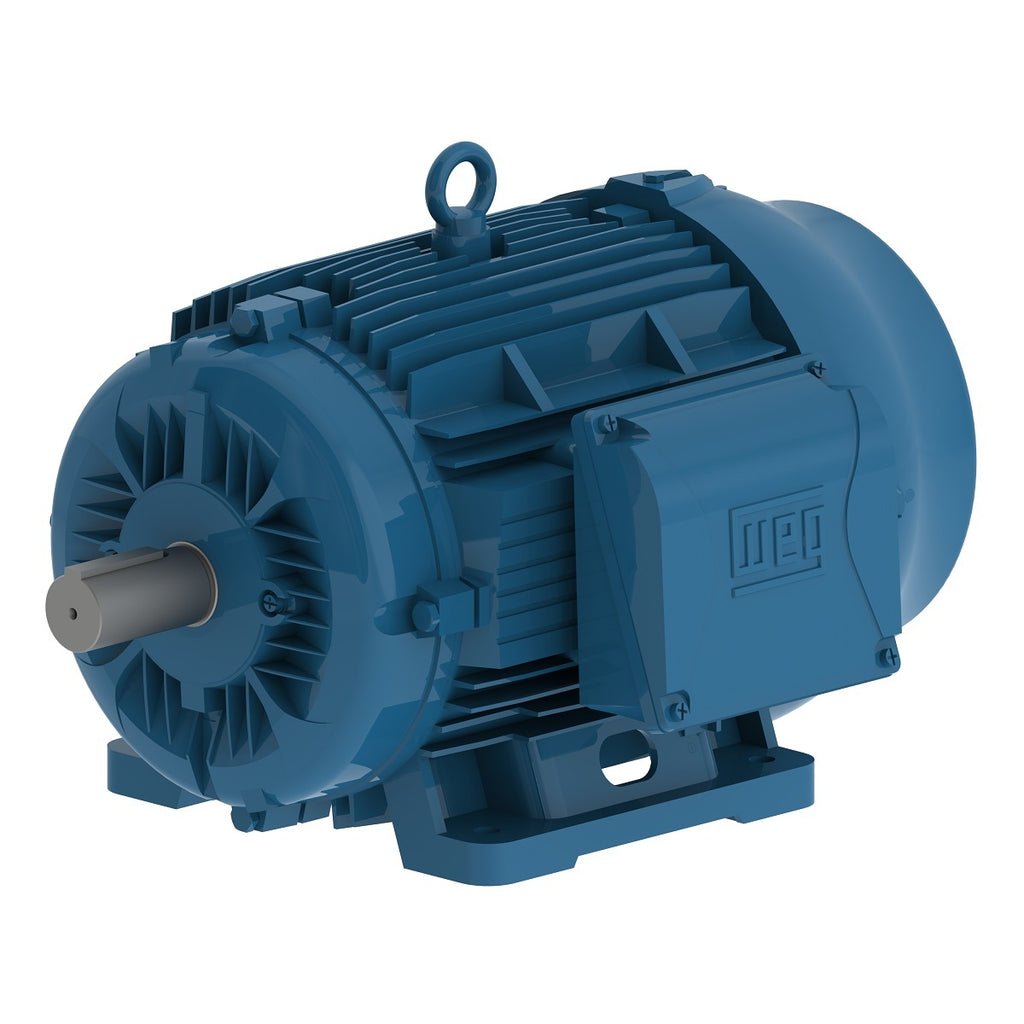

WEG 02212ET3Y200L-W22 W22 Tru-Metric IE3 30 HP 6P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 02212ET3Y200L-W22 W22 Tru-Metric IE3 30 HP 6P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 02212ET3Y200L-W22 W22 Tru-Metric IE3 30 HP 6P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 02212ET3Y200L-W22

Dropship

Get it by Thu, Feb 12 - Tue, Feb 17

Price:
$4,382.36

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 30 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 200L
Output 30 HP (22 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 460 V
Rated current 37.1 A
L. R. Amperes 271 A
LRC 7.3
No load current 18.4 A
Rated torque 133 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 563 lb
Efficiency
50% 91.7
75% 92.4
100% 93.0
Power factor
50% 0.62
75% 0.74
100% 0.80
Electric Motors
Frame 200L
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 43.4 A
L. R. Amperes 269 A
LRC 6.2
No load current 18.2 A
Rated torque 161 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 563 lb
Efficiency
50% 92.5
75% 92.7
100% 92.7
Power factor
50% 0.68
75% 0.78
100% 0.83
Electric Motors
Frame 200L
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 42.2 A
L. R. Amperes 283 A
LRC 6.7
No load current 20.0 A
Rated torque 161 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 563 lb
Efficiency
50% 92.0
75% 92.6
100% 92.9
Power factor
50% 0.65
75% 0.75
100% 0.81
Electric Motors
Frame 200L
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 983 rpm
Slip 1.70 %
Rated voltage 415 V
Rated current 41.7 A
L. R. Amperes 300 A
LRC 7.2
No load current 21.6 A
Rated torque 160 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 10.8 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 563 lb
Efficiency
50% 91.4
75% 92.4
100% 92.9
Power factor
50% 0.61
75% 0.73
100% 0.79
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM50x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
