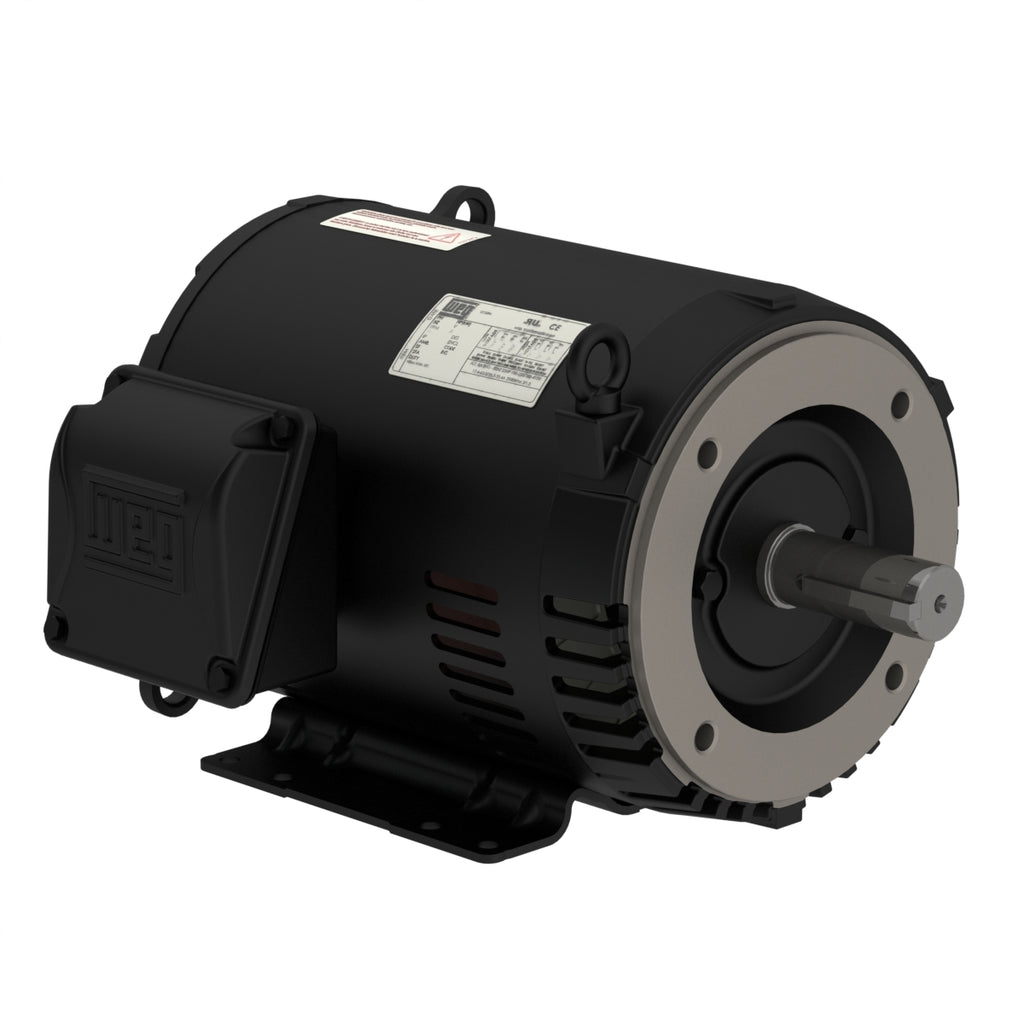

WEG 02036OT3E254TC-SG Rolled Steel NEMA Premium Efficiency 20 HP 2P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 02036OT3E254TC-SG Rolled Steel NEMA Premium Efficiency 20 HP 2P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEG 02036OT3E254TC-SG Rolled Steel NEMA Premium Efficiency 20 HP 2P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 02036OT3E254TC-SG

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,876.12

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 47.6/23.8 A
L. R. Amperes 286/143 A
LRC 6.0x(Code G)
No load current 17.0/8.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 151 lb
Efficiency
50% 90.2
75% 91.0
100% 91.0
Power factor
50% 0.76
75% 0.83
100% 0.87
Electric Motors
Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 190-220/380 V
Rated current 58.0-50.1/29.0 A
L. R. Amperes 261-225/131 A
LRC 4.5x(Code D)
No load current 16.2-14.0/8.09 A
Rated torque 36.3 ft.lb
Locked rotor torque 130 %
Breakdown torque 190 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 151 lb
Efficiency
50% 90.6
75% 89.5
100% 87.2
Power factor
50% 0.82
75% 0.88
100% 0.90
Electric Motors
Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 26.7 A
L. R. Amperes 144 A
LRC 5.4x(Code F)
No load current 9.87 A
Rated torque 36.1 ft.lb
Locked rotor torque 150 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 151 lb
Efficiency
50% 90.5
75% 90.2
100% 88.8
Power factor
50% 0.75
75% 0.84
100% 0.88
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
