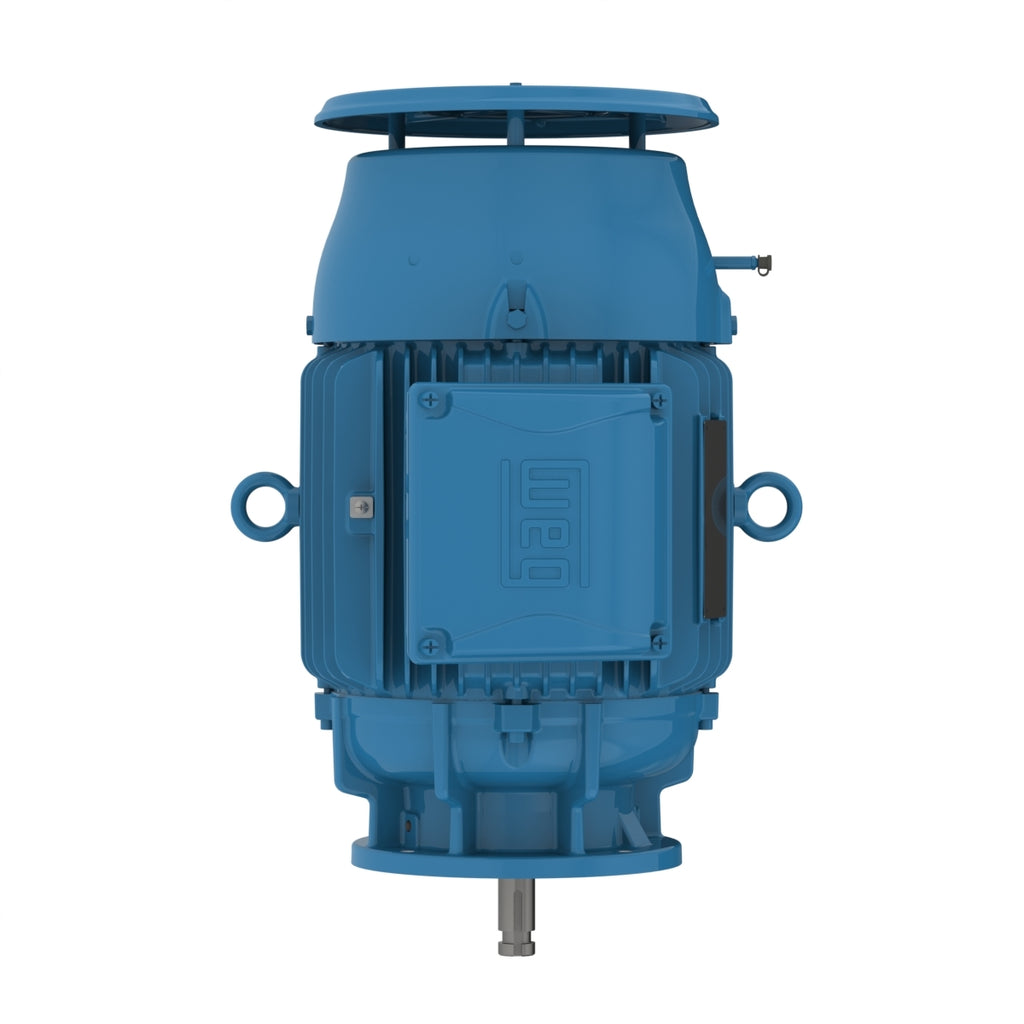

WEG 02036ET3E256HP-W22 W22 P Base NEMA Premium Efficiency 20 HP 2P 256HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

Roll over image to zoom in Click on image to zoom

WEG 02036ET3E256HP-W22 W22 P Base NEMA Premium Efficiency 20 HP 2P 256HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

Name: WEG 02036ET3E256HP-W22 W22 P Base NEMA Premium Efficiency 20 HP 2P 256HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Brand: WEG
SKU: 02036ET3E256HP-W22
Price: 2629.95 USD
Availability: InStock

WEGSKU: 02036ET3E256HP-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:

$2,629.95

Quantity:

Share this product

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard	NEMA MG-1
Frequency	60//50 Hz
Voltage	230/460//380 V
Number of poles	2
Degree of Protection	IP55
Synchronous speed	3600 rpm
Output rating	20 HP
Mounting	W-6
Flange	P
Terminal box¹	Left position
Enclosure	IC411 - TEFC

Specifications

230/460 V 60 Hz 2P 380 V 50 Hz 2P IE3 400 V 50 Hz 2P IE3 415 V 50 Hz 2P IE3 380 V 50 Hz 2P 400 V 50 Hz 2P IE1 415 V 50 Hz 2P IE1

Electric Motors

Frame	256HP
Output	20 HP (15 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3525 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	46.4/23.2 A
L. R. Amperes	283/142 A
LRC	6.1x(Code G)
No load current	13.0/6.50 A
Rated torque	29.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	90.7
75%	91.0
100%	91.0

Power factor

50%	0.80
75%	0.87
100%	0.89

Electric Motors

Frame	256HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	380 V
Rated current	20.4 A
L. R. Amperes	141 A
LRC	6.9x(Code G)
No load current	6.20 A
Rated torque	26.8 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	28s (cold) 16s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	90.6
75%	90.9
100%	91.2

Power factor

50%	0.78
75%	0.87
100%	0.90

Electric Motors

Frame	256HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	19.6 A
L. R. Amperes	151 A
LRC	7.7x(Code H)
No load current	6.60 A
Rated torque	26.7 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	28s (cold) 16s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	90.4
75%	91.2
100%	91.2

Power factor

50%	0.75
75%	0.85
100%	0.89

Electric Motors

Frame	256HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	19.1 A
L. R. Amperes	155 A
LRC	8.1x(Code J)
No load current	6.90 A
Rated torque	26.7 ft.lb
Locked rotor torque	270 %
Breakdown torque	310 %
Locked rotor time	28s (cold) 16s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	89.8
75%	91.1
100%	91.2

Power factor

50%	0.73
75%	0.84
100%	0.88

Electric Motors

Frame	256HP
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	380 V
Rated current	28.9 A
L. R. Amperes	147 A
LRC	5.1x(Code E)
No load current	6.20 A
Rated torque	36.4 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	12s (cold) 7s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	87.2
75%	87.5
100%	87.5

Power factor

50%	0.86
75%	0.89
100%	0.90

Electric Motors

Frame	256HP
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	400 V
Rated current	27.2 A
L. R. Amperes	155 A
LRC	5.7x(Code F)
No load current	6.60 A
Rated torque	36.2 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	16s (cold) 9s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	89.2
75%	89.5
100%	89.5

Power factor

50%	0.84
75%	0.88
100%	0.89

Electric Motors

Frame	256HP
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	415 V
Rated current	26.2 A
L. R. Amperes	160 A
LRC	6.1x(Code G)
No load current	6.90 A
Rated torque	36.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	18s (cold) 10s (hot)
Moment of inertia (J)	1.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	352 lb

Efficiency

50%	89.2
75%	89.5
100%	89.5

Power factor

50%	0.82
75%	0.87
100%	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
