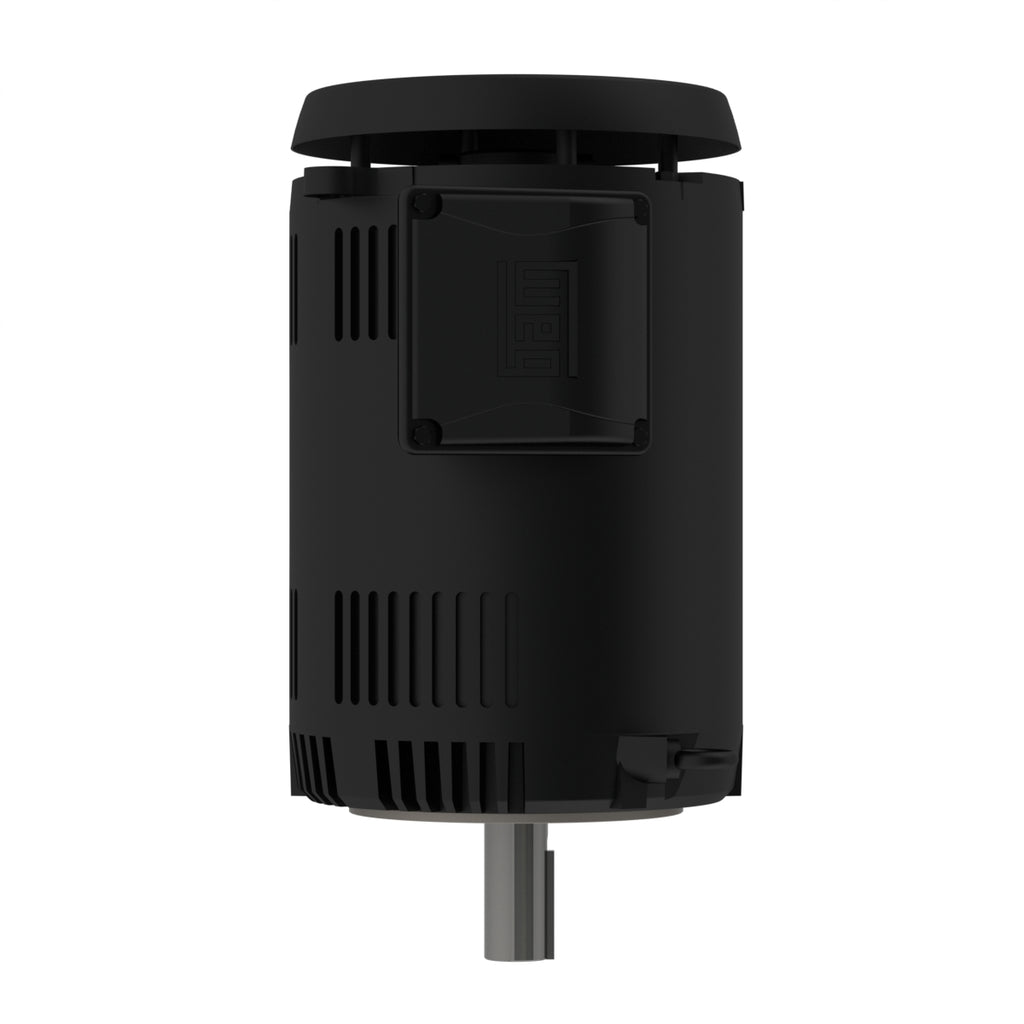

WEG 02018OT3ER256TC-S Rolled Steel NEMA Premium Efficiency 20 HP 4P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Roll over image to zoom in Click on image to zoom
WEG 02018OT3ER256TC-S Rolled Steel NEMA Premium Efficiency 20 HP 4P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

WEG 02018OT3ER256TC-S Rolled Steel NEMA Premium Efficiency 20 HP 4P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

WEGSKU: 02018OT3ER256TC-S

Dropship

Get it by Tue, Dec 09 - Sun, Dec 14

Price:
$1,538.46

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting W-6
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 50.0/25.0 A
L. R. Amperes 315/158 A
LRC 6.3x(Code G)
No load current 22.9/11.4 A
Rated torque 59.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 2.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 225 lb
Efficiency
50% 92.4
75% 92.4
100% 93.0
Power factor
50% 0.63
75% 0.74
100% 0.81
Electric Motors
Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 190-220/380 V
Rated current 59.8-51.6/29.9 A
L. R. Amperes 311-269/155 A
LRC 5.2x(Code F)
No load current 22.4-19.4/11.2 A
Rated torque 71.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 225 lb
Efficiency
50% 91.8
75% 91.2
100% 89.7
Power factor
50% 0.72
75% 0.82
100% 0.85
Electric Motors
Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 28.1 A
L. R. Amperes 174 A
LRC 6.2x(Code G)
No load current 13.5 A
Rated torque 71.7 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 225 lb
Efficiency
50% 90.9
75% 91.3
100% 90.5
Power factor
50% 0.64
75% 0.76
100% 0.82
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
