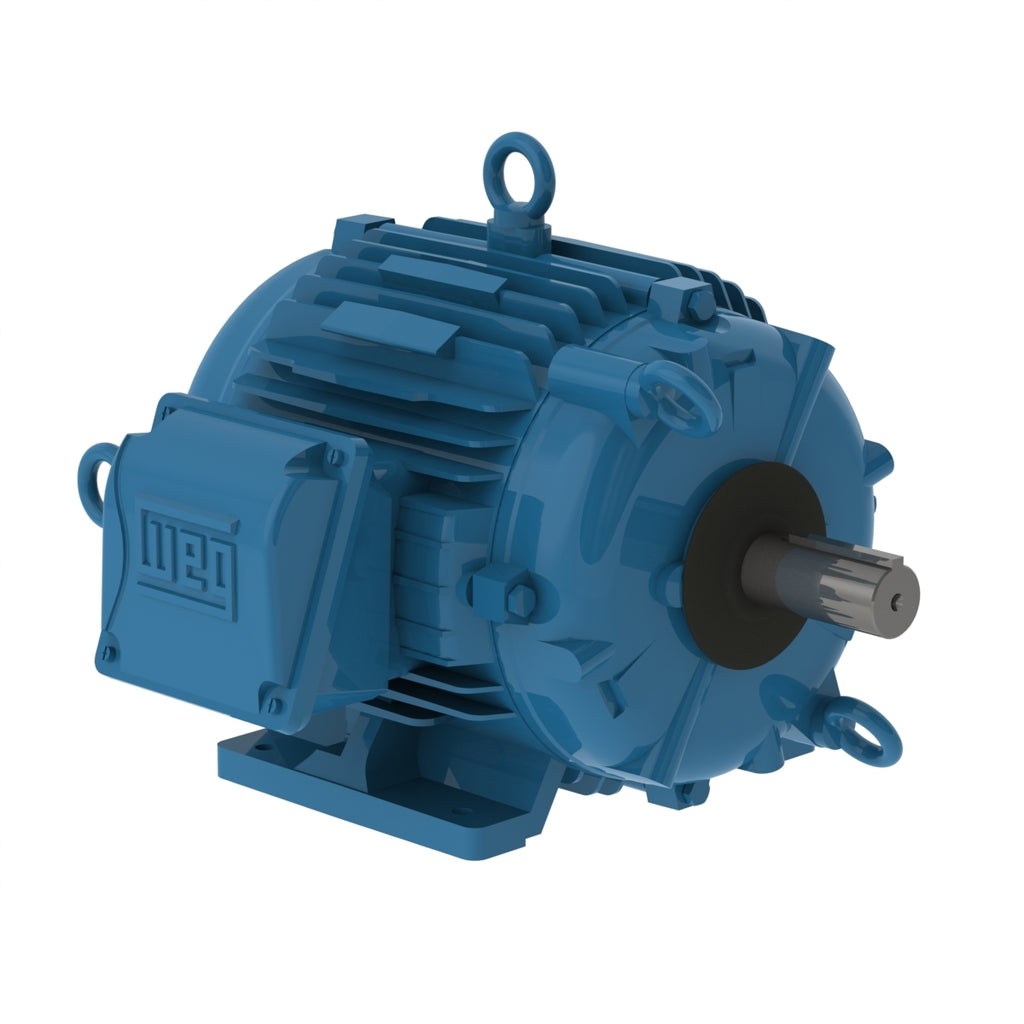

WEG 02012AT3ECT286TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 02012AT3ECT286TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 02012AT3ECT286TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 02012AT3ECT286TF1-W2

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$4,072.64

Description

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 20 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC410 - TEAO


Electric Motors
Frame 284/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 53.5-48.4/24.2 A
L. R. Amperes 332-300/150 A
LRC 6.2x(Code G)
No load current 16.4-19.0/9.50 A
Rated torque 89.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 91.0
75% 91.7
100% 91.7
Power factor
50% 0.70
75% 0.80
100% 0.85
Electric Motors
Frame 284/6T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 22.0 A
L. R. Amperes 147 A
LRC 6.7x(Code H)
No load current 9.40 A
Rated torque 80.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 90.0
75% 90.3
100% 90.3
Power factor
50% 0.66
75% 0.79
100% 0.84
Electric Motors
Frame 284/6T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 982 rpm
Slip 1.80 %
Rated voltage 400 V
Rated current 21.2 A
L. R. Amperes 155 A
LRC 7.3x(Code J)
No load current 10.0 A
Rated torque 80.2 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 89.3
75% 90.3
100% 90.3
Power factor
50% 0.63
75% 0.76
100% 0.83
Electric Motors
Frame 284/6T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 983 rpm
Slip 1.70 %
Rated voltage 415 V
Rated current 20.8 A
L. R. Amperes 156 A
LRC 7.5x(Code J)
No load current 10.6 A
Rated torque 80.1 ft.lb
Locked rotor torque 280 %
Breakdown torque 320 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 89.3
75% 90.6
100% 90.8
Power factor
50% 0.60
75% 0.73
100% 0.81
Electric Motors
Frame 284/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 29.9 A
L. R. Amperes 141 A
LRC 4.7x(Code E)
No load current 9.40 A
Rated torque 109 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 90.2
75% 90.2
100% 88.5
Power factor
50% 0.76
75% 0.83
100% 0.86
Electric Motors
Frame 284/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 28.1 A
L. R. Amperes 149 A
LRC 5.3x(Code F)
No load current 10.0 A
Rated torque 108 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 90.2
75% 90.2
100% 89.5
Power factor
50% 0.73
75% 0.82
100% 0.86
Electric Motors
Frame 284/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 27.2 A
L. R. Amperes 158 A
LRC 5.8x(Code G)
No load current 10.6 A
Rated torque 108 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 427 lb
Efficiency
50% 90.2
75% 91.0
100% 90.2
Power factor
50% 0.70
75% 0.80
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
