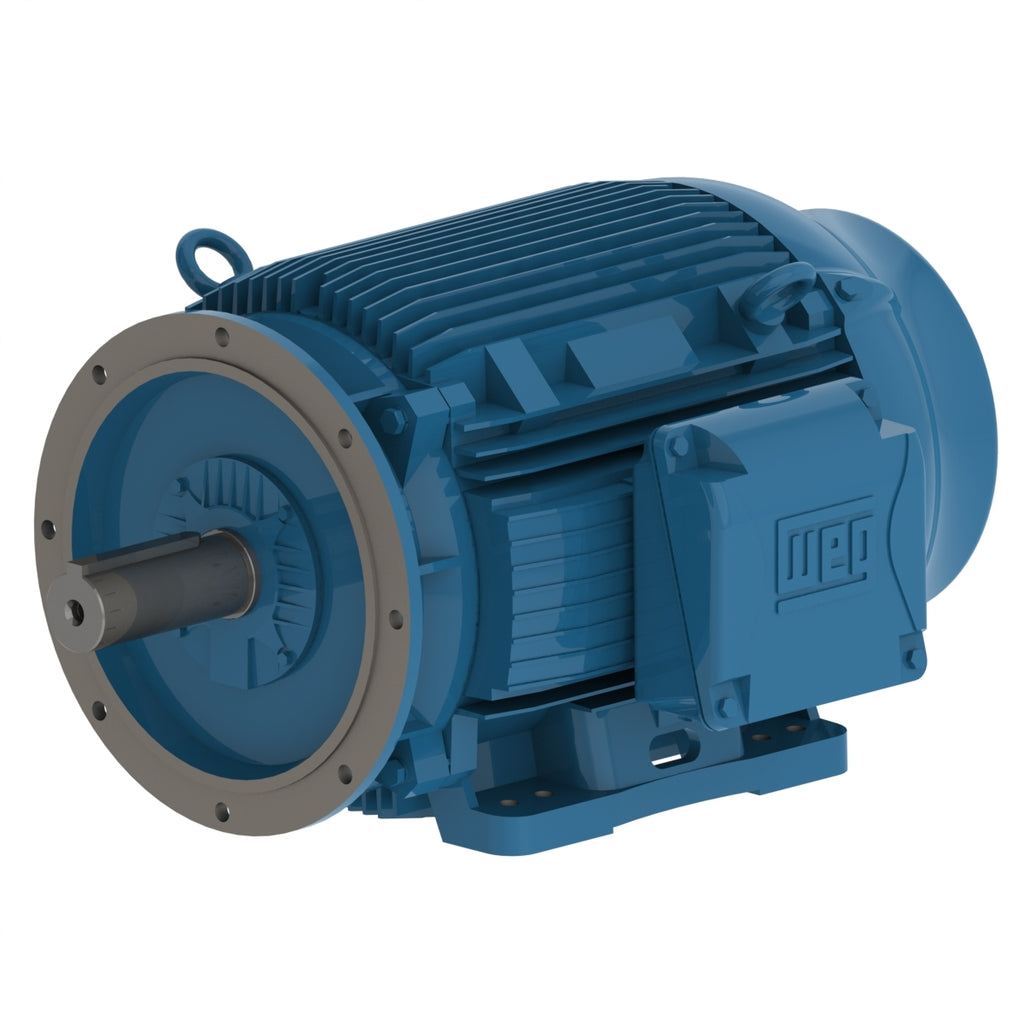

WEG 01836ET3Y160LFF-W22 W22 Tru-Metric IE3 25 HP 2P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B35L(E)
Roll over image to zoom in Click on image to zoom
WEG 01836ET3Y160LFF-W22 W22 Tru-Metric IE3 25 HP 2P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B35L(E)

WEG 01836ET3Y160LFF-W22 W22 Tru-Metric IE3 25 HP 2P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B35L(E)

WEGSKU: 01836ET3Y160LFF-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$2,707.38

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting B35L(E)
Flange FF
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 29.9 A
L. R. Amperes 284 A
LRC 9.5
No load current 12.0 A
Rated torque 36.9 ft.lb
Locked rotor torque 370 %
Breakdown torque 430 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 340 lb
Efficiency
50% 90.6
75% 92.2
100% 92.4
Power factor
50% 0.67
75% 0.79
100% 0.84
Electric Motors
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 34.6 A
L. R. Amperes 284 A
LRC 8.2
No load current 11.5 A
Rated torque 44.7 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 340 lb
Efficiency
50% 92.0
75% 92.3
100% 92.4
Power factor
50% 0.74
75% 0.83
100% 0.88
Electric Motors
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 34.0 A
L. R. Amperes 296 A
LRC 8.7
No load current 12.5 A
Rated torque 44.6 ft.lb
Locked rotor torque 300 %
Breakdown torque 360 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 340 lb
Efficiency
50% 91.5
75% 92.3
100% 92.4
Power factor
50% 0.69
75% 0.80
100% 0.85
Electric Motors
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 33.6 A
L. R. Amperes 316 A
LRC 9.4
No load current 13.0 A
Rated torque 44.5 ft.lb
Locked rotor torque 320 %
Breakdown torque 400 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 340 lb
Efficiency
50% 91.0
75% 92.2
100% 92.4
Power factor
50% 0.64
75% 0.77
100% 0.83
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
