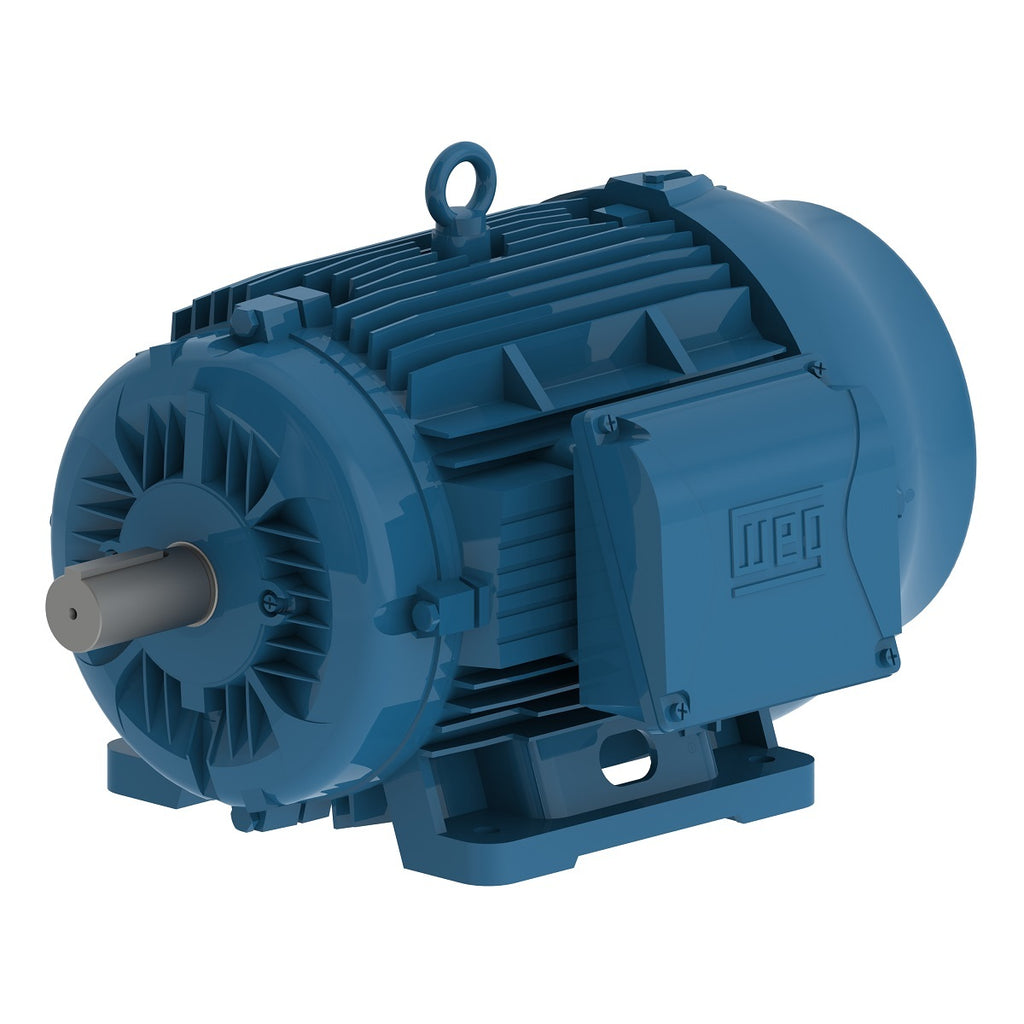

WEG 01812ET3Y200L-W22 W22 Tru-Metric IE3 25 HP 6P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 01812ET3Y200L-W22 W22 Tru-Metric IE3 25 HP 6P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 01812ET3Y200L-W22 W22 Tru-Metric IE3 25 HP 6P 200L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 01812ET3Y200L-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$4,348.54

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 25 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 200L
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 460 V
Rated current 31.6 A
L. R. Amperes 224 A
LRC 7.1
No load current 15.4 A
Rated torque 111 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 517 lb
Efficiency
50% 91.0
75% 91.7
100% 93.0
Power factor
50% 0.61
75% 0.73
100% 0.79
Electric Motors
Frame 200L
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 979 rpm
Slip 2.10 %
Rated voltage 380 V
Rated current 37.2 A
L. R. Amperes 208 A
LRC 5.6
No load current 14.6 A
Rated torque 134 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 517 lb
Efficiency
50% 92.2
75% 92.4
100% 92.2
Power factor
50% 0.68
75% 0.79
100% 0.82
Electric Motors
Frame 200L
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 981 rpm
Slip 1.90 %
Rated voltage 400 V
Rated current 36.1 A
L. R. Amperes 220 A
LRC 6.1
No load current 16.0 A
Rated torque 134 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 517 lb
Efficiency
50% 91.7
75% 92.3
100% 92.5
Power factor
50% 0.64
75% 0.76
100% 0.80
Electric Motors
Frame 200L
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 983 rpm
Slip 1.70 %
Rated voltage 415 V
Rated current 35.6 A
L. R. Amperes 231 A
LRC 6.5
No load current 17.3 A
Rated torque 134 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 517 lb
Efficiency
50% 91.2
75% 92.1
100% 92.6
Power factor
50% 0.60
75% 0.73
100% 0.78
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM50x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
