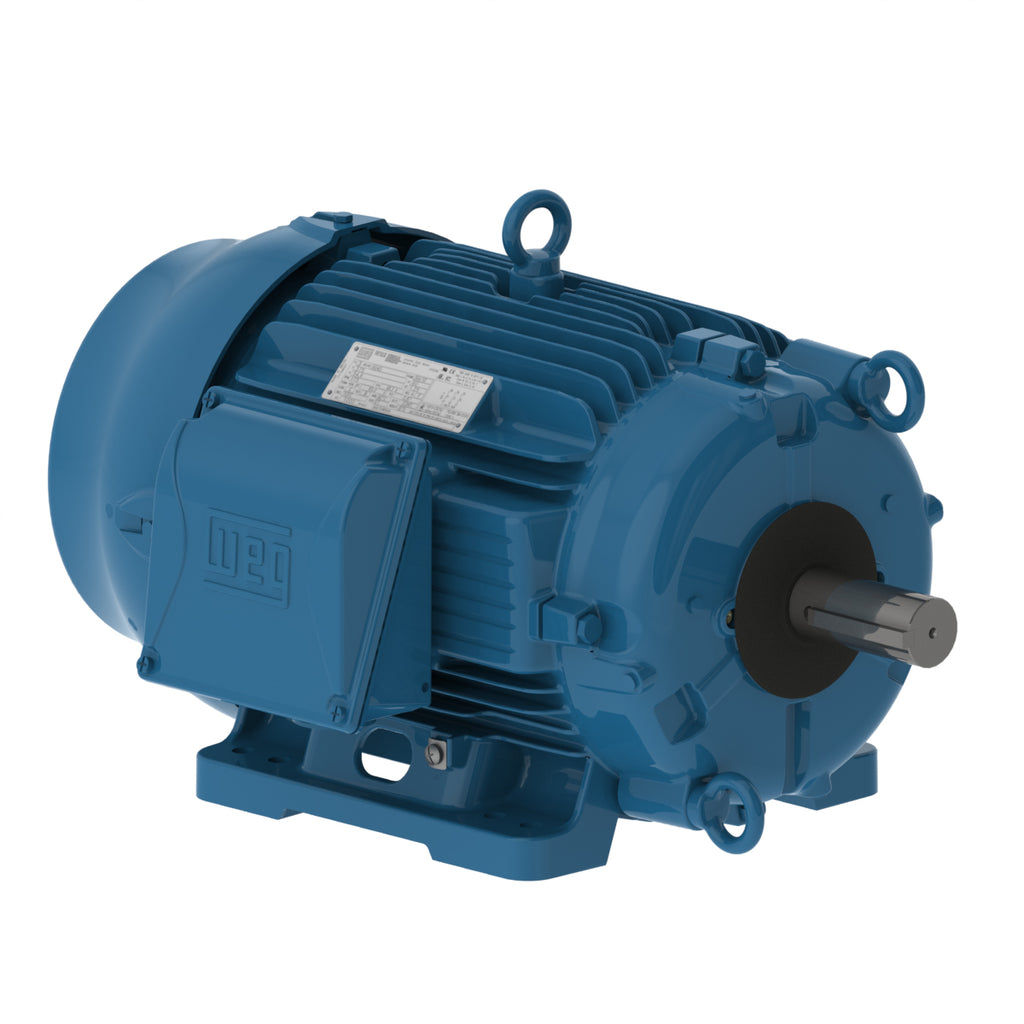

WEG 01589EP3PCT284V2F1-W W22 Cooling Tower High Efficiency 3.75/15 HP 8/4P 284T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01589EP3PCT284V2F1-W W22 Cooling Tower High Efficiency 3.75/15 HP 8/4P 284T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 01589EP3PCT284V2F1-W W22 Cooling Tower High Efficiency 3.75/15 HP 8/4P 284T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 01589EP3PCT284V2F1-W

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$3,451.42

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 3.75/15 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

200 V 60 Hz 4P 200 V 60 Hz 8P

Electric Motors
Frame 284T
Output 15 HP (11 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1781 rpm
Slip 1.06 %
Rated voltage 200 V
Rated current 41.9 A
L. R. Amperes 335 A
LRC 8.0x(Code J)
No load current 17.8 A
Rated torque 44.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 4.68 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 2.2 lb
Efficiency
50% 87.5
75% 88.5
100% 90.2
Power factor
50% 0.71
75% 0.80
100% 0.84
Electric Motors
Frame 284T
Output 3.75 HP (2.8 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 892 rpm
Slip 0.89 %
Rated voltage 200 V
Rated current 19.7 A
L. R. Amperes 102 A
LRC 5.2x(Code L)
No load current 16.2 A
Rated torque 22.1 ft.lb
Locked rotor torque 250 %
Breakdown torque 270 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 4.68 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 2.2 lb
Efficiency
50% 71.0
75% 77.0
100% 79.0
Power factor
50% 0.35
75% 0.42
100% 0.52
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
