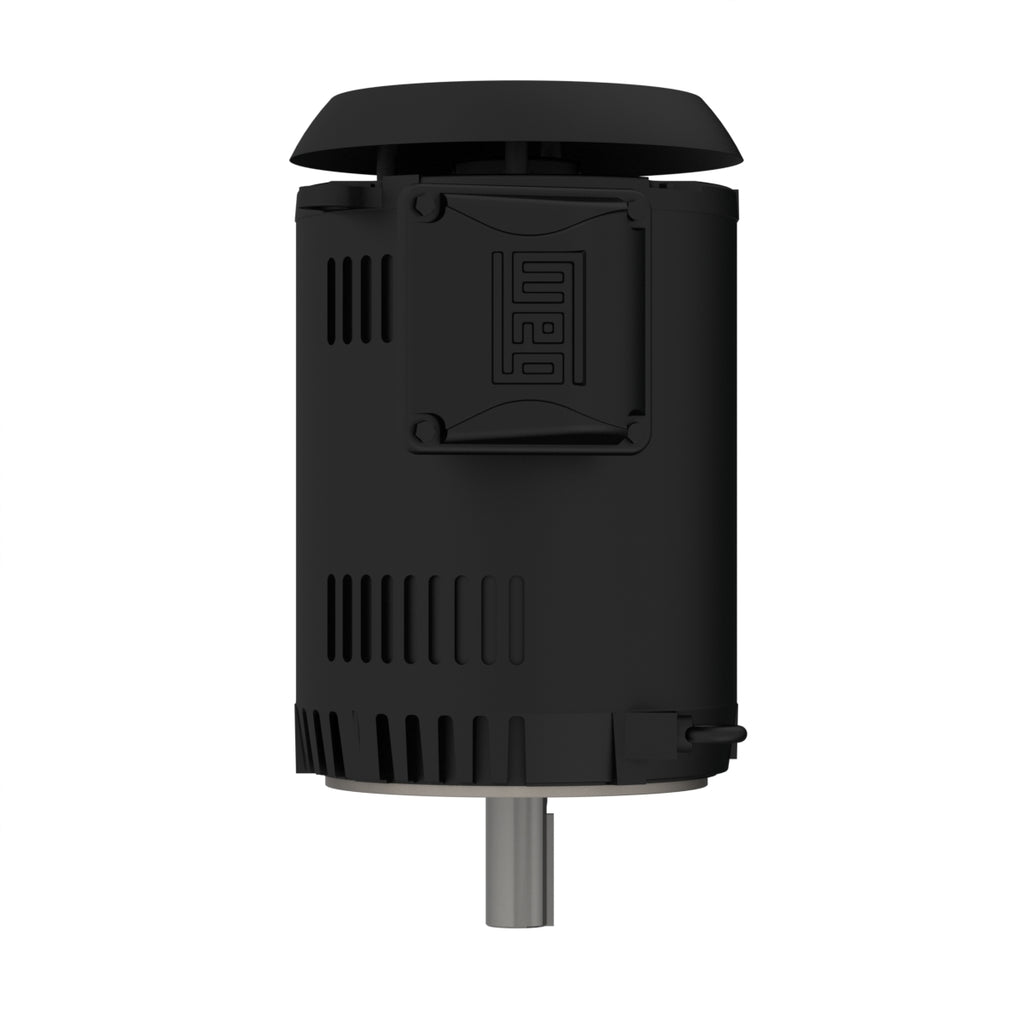

WEG 01536OT3ER215TC-S Rolled Steel NEMA Premium Efficiency 15 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Roll over image to zoom in Click on image to zoom
WEG 01536OT3ER215TC-S Rolled Steel NEMA Premium Efficiency 15 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

WEG 01536OT3ER215TC-S Rolled Steel NEMA Premium Efficiency 15 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

WEGSKU: 01536OT3ER215TC-S

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,446.25

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting W-6
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 213/5TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 230/460 V
Rated current 34.4/17.2 A
L. R. Amperes 234/117 A
LRC 6.8x(Code G)
No load current 12.3/6.17 A
Rated torque 22.3 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.5512 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 137 lb
Efficiency
50% 90.2
75% 90.2
100% 90.2
Power factor
50% 0.77
75% 0.86
100% 0.89
Electric Motors
Frame 213/5TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 190-220/380 V
Rated current 42.0-36.3/21.0 A
L. R. Amperes 227-196/113 A
LRC 5.4x(Code E)
No load current 12.1-10.4/6.04 A
Rated torque 27.1 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.5512 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 137 lb
Efficiency
50% 90.2
75% 88.9
100% 87.6
Power factor
50% 0.83
75% 0.89
100% 0.91
Electric Motors
Frame 213/5TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 19.5 A
L. R. Amperes 127 A
LRC 6.5x(Code G)
No load current 7.51 A
Rated torque 27.0 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.5512 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 137 lb
Efficiency
50% 89.8
75% 89.5
100% 88.0
Power factor
50% 0.75
75% 0.85
100% 0.89
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
