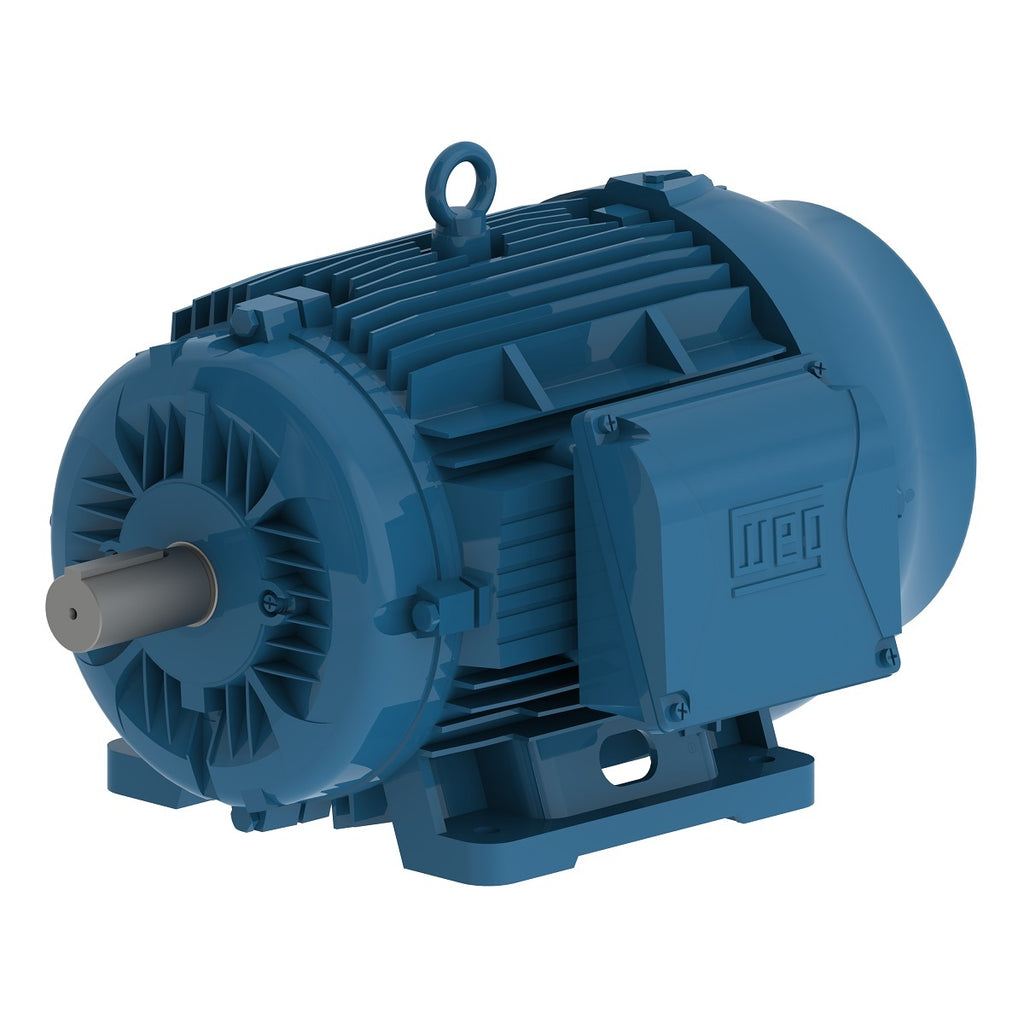

WEG 01536ET3Y160M-W22 W22 Tru-Metric IE3 20 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 01536ET3Y160M-W22 W22 Tru-Metric IE3 20 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 01536ET3Y160M-W22 W22 Tru-Metric IE3 20 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 01536ET3Y160M-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$2,147.57

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 160M
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 23.9 A
L. R. Amperes 227 A
LRC 9.5
No load current 9.30 A
Rated torque 29.5 ft.lb
Locked rotor torque 330 %
Breakdown torque 400 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 1.12 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 302 lb
Efficiency
50% 91.0
75% 91.7
100% 91.7
Power factor
50% 0.70
75% 0.81
100% 0.86
Electric Motors
Frame 160M
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 380 V
Rated current 28.2 A
L. R. Amperes 197 A
LRC 7.0
No load current 9.10 A
Rated torque 35.8 ft.lb
Locked rotor torque 250 %
Breakdown torque 310 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.12 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 302 lb
Efficiency
50% 91.5
75% 91.7
100% 91.9
Power factor
50% 0.77
75% 0.85
100% 0.88
Electric Motors
Frame 160M
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 27.1 A
L. R. Amperes 217 A
LRC 8.0
No load current 9.80 A
Rated torque 35.7 ft.lb
Locked rotor torque 270 %
Breakdown torque 340 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.12 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 302 lb
Efficiency
50% 91.3
75% 91.8
100% 91.9
Power factor
50% 0.73
75% 0.83
100% 0.87
Electric Motors
Frame 160M
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 26.4 A
L. R. Amperes 224 A
LRC 8.5
No load current 10.4 A
Rated torque 35.6 ft.lb
Locked rotor torque 290 %
Breakdown torque 370 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.12 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 302 lb
Efficiency
50% 91.3
75% 91.7
100% 91.9
Power factor
50% 0.70
75% 0.81
100% 0.86
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
