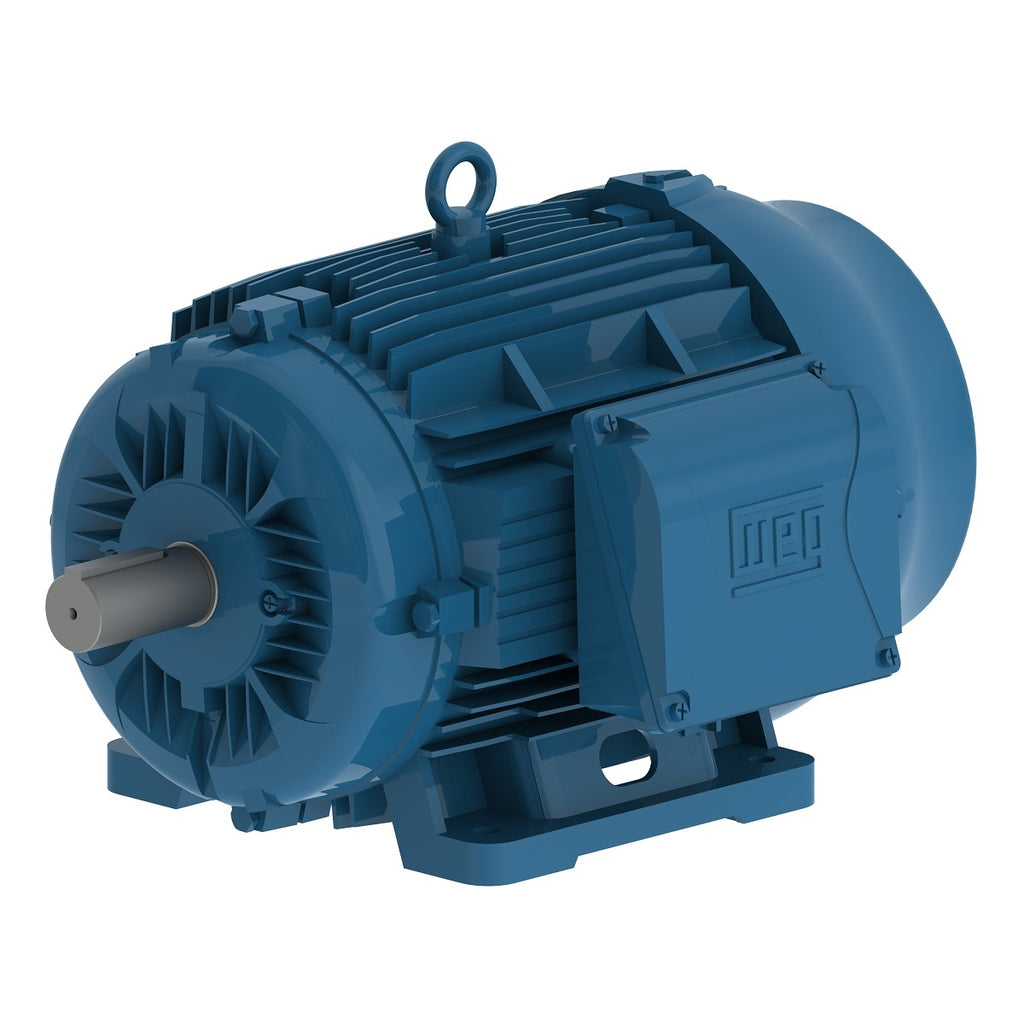

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
575 V |
| Number of poles |
2 |
| Degree of Protection |
IP55 |
| Synchronous speed |
3600 rpm |
| Output rating |
15 HP |
| Mounting |
F-2 |
| Flange |
Without |
| Terminal box¹ |
Right position |
| Enclosure |
IC411 - TEFC |
Electric Motors
| Frame |
254T |
| Output |
15 HP (11 kW) |
| Number of Poles |
2 |
| Frequency |
60 Hz |
| Rated speed |
3530 rpm |
| Slip |
1.94 % |
| Rated voltage |
575 V |
| Rated current |
13.8 A |
| L. R. Amperes |
92.2 A |
| LRC |
6.7x(Code G) |
| No load current |
4.24 A |
| Rated torque |
22.3 ft.lb |
| Locked rotor torque |
220 % |
| Breakdown torque |
270 % |
| Locked rotor time |
45s (cold) 25s (hot) |
| Moment of inertia (J) |
1.26 sq.ft.lb |
| Design |
B |
| Insulation Class |
F |
| Service factor |
1.25 |
| Temperature rise |
80 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC411 - TEFC |
| Mounting |
F-2 |
| Rotation¹ |
Both (CW and CCW) |
| Noise level² |
72.0 dB(A) |
| Approx. weight³ |
249 lb |
Efficiency
| 50% |
89.5 |
| 75% |
91.0 |
| 100% |
91.0 |
Power factor
| 50% |
0.77 |
| 75% |
0.85 |
| 100% |
0.88 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Dip and Bake Polyester |
| Regreasing System |
At Drive end and Non-drive end |
| Main terminal box hole |
NPT 1 1/2" |
| Terminal Block |
Without |
| Shaft Locking Device |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Cast Iron |
| Tropicalized Painting |
Without |
| Fan material |
Plastic |
| Bearing cap |
Yes- Bearing Cap |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
6 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Dip and Bake Polyester |
| Regreasing System |
At Drive end and Non-drive end |
| Main terminal box hole |
NPT 1 1/2" |
| Terminal Block |
Without |
| Shaft Locking Device |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Cast Iron |
| Tropicalized Painting |
Without |
| Fan material |
Plastic |
| Bearing cap |
Yes- Bearing Cap |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
6 |
