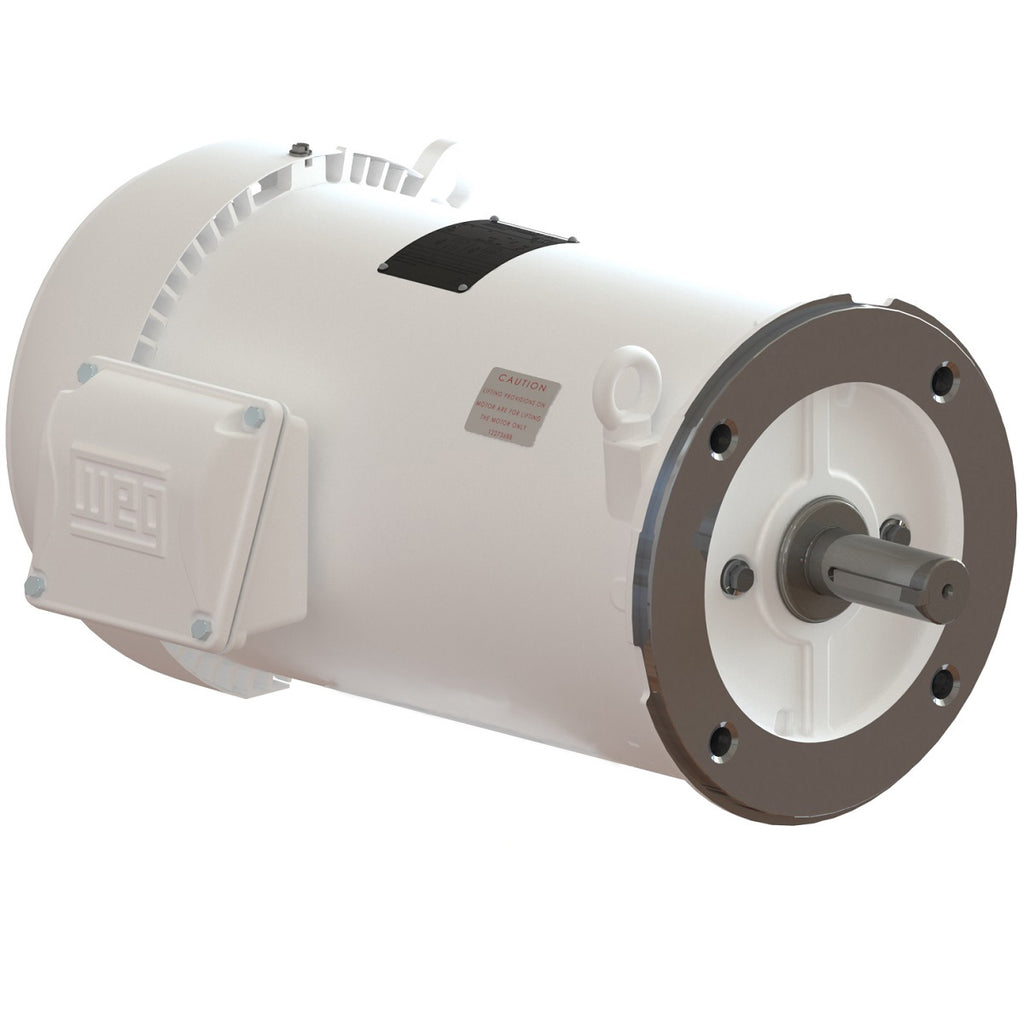

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 2 |
| Degree of Protection | IP56 |
| Synchronous speed | 3600 rpm |
| Output rating | 15 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213/5TC |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3520 rpm |
| Slip | 2.22 % |
| Rated voltage | 230/460 V |
| Rated current | 34.0/17.0 A |
| L. R. Amperes | 279/139 A |
| LRC | 8.2x(Code J) |
| No load current | 12.4/6.22 A |
| Rated torque | 22.4 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 330 % |
| Locked rotor time | 19s (cold) 11s (hot) |
| Moment of inertia (J) | 0.6341 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 70.0 dB(A) |
| Approx. weight³ | 167 lb |
Efficiency
| 50% | 90.2 |
|---|---|
| 75% | 91.0 |
| 100% | 91.0 |
Power factor
| 50% | 0.76 |
|---|---|
| 75% | 0.85 |
| 100% | 0.89 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | 04501 205E |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Stainless Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
