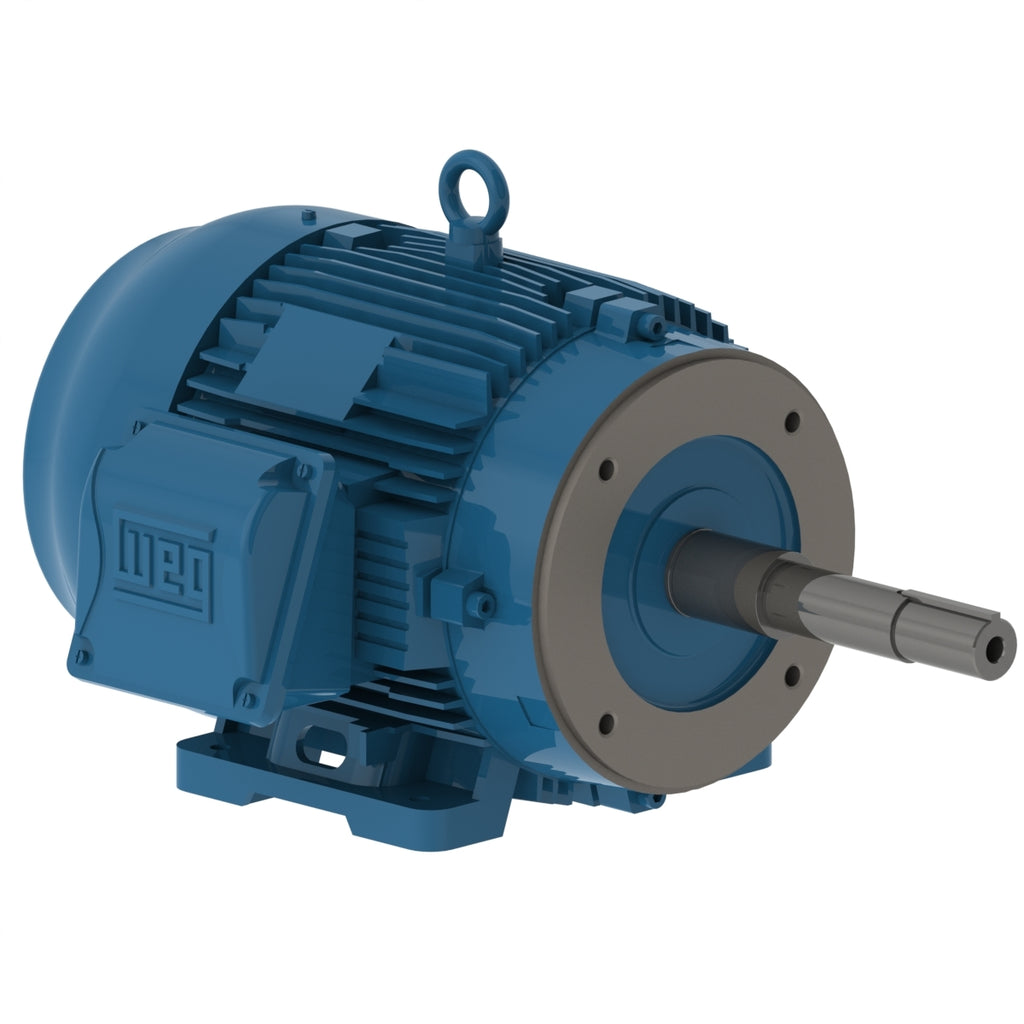

WEG 01536ET3E215JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 15 HP 2P 213/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01536ET3E215JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 15 HP 2P 213/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 01536ET3E215JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 15 HP 2P 213/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 01536ET3E215JP-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,868.11

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 213/5JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 34.0/17.0 A
L. R. Amperes 269/134 A
LRC 7.9x(Code J)
No load current 11.6/5.80 A
Rated torque 22.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 90.2
75% 91.0
100% 91.0
Power factor
50% 0.76
75% 0.85
100% 0.89
Electric Motors
Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 14.5 A
L. R. Amperes 125 A
LRC 8.6x(Code K)
No load current 5.60 A
Rated torque 17.9 ft.lb
Locked rotor torque 280 %
Breakdown torque 340 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 89.5
75% 90.1
100% 90.1
Power factor
50% 0.72
75% 0.82
100% 0.87
Electric Motors
Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 14.1 A
L. R. Amperes 133 A
LRC 9.4x(Code L)
No load current 6.20 A
Rated torque 17.8 ft.lb
Locked rotor torque 320 %
Breakdown torque 380 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 89.0
75% 90.1
100% 90.1
Power factor
50% 0.68
75% 0.79
100% 0.85
Electric Motors
Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 14.0 A
L. R. Amperes 140 A
LRC 10.0x(Code M)
No load current 6.70 A
Rated torque 17.8 ft.lb
Locked rotor torque 340 %
Breakdown torque 420 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 88.5
75% 90.1
100% 90.1
Power factor
50% 0.64
75% 0.77
100% 0.83
Electric Motors
Frame 213/5JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 380 V
Rated current 20.6 A
L. R. Amperes 134 A
LRC 6.5x(Code G)
No load current 5.60 A
Rated torque 27.3 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 88.5
75% 89.0
100% 89.0
Power factor
50% 0.81
75% 0.88
100% 0.91
Electric Motors
Frame 213/5JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 19.7 A
L. R. Amperes 142 A
LRC 7.2x(Code H)
No load current 6.20 A
Rated torque 27.2 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 89.0
75% 89.5
100% 89.7
Power factor
50% 0.78
75% 0.86
100% 0.90
Electric Motors
Frame 213/5JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 19.3 A
L. R. Amperes 149 A
LRC 7.7x(Code J)
No load current 6.70 A
Rated torque 27.1 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 180 lb
Efficiency
50% 89.5
75% 90.0
100% 90.0
Power factor
50% 0.75
75% 0.84
100% 0.88
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Pump Seal Gasket
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
