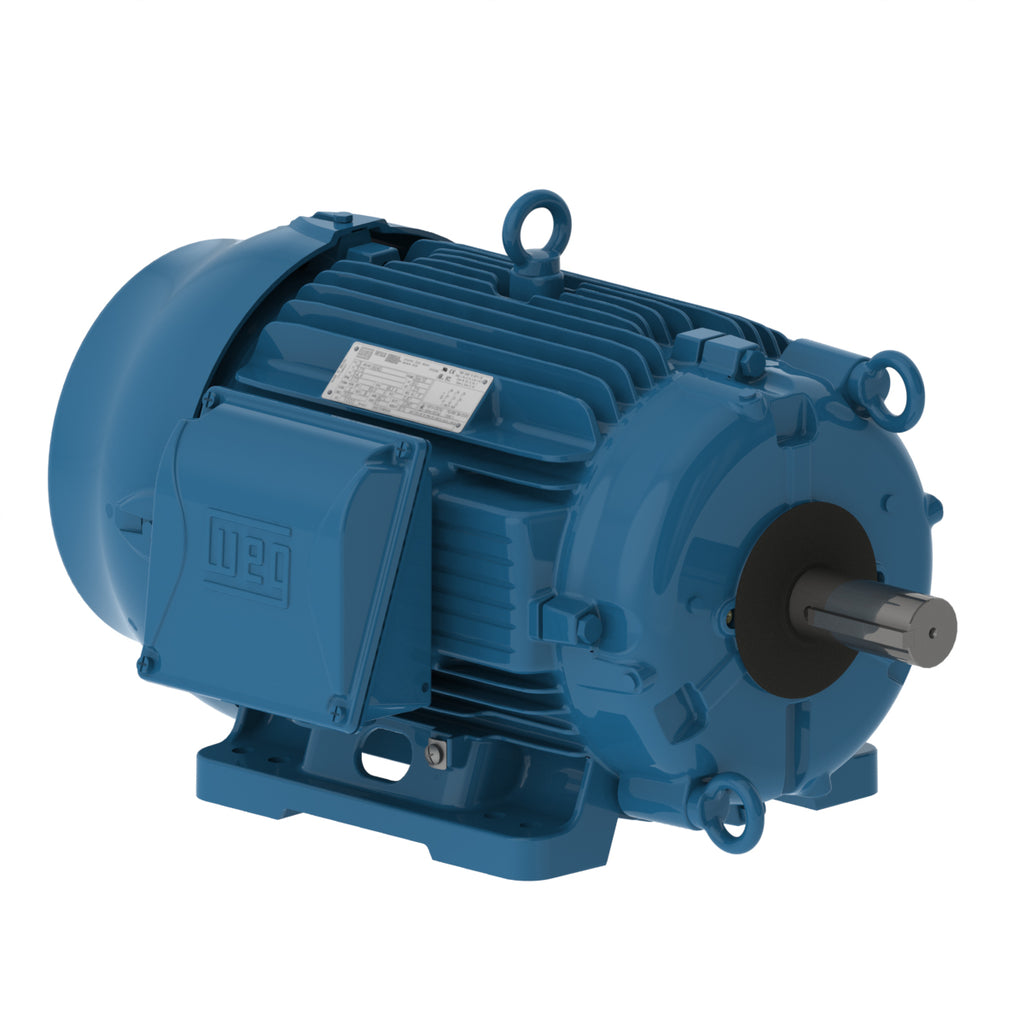

WEG 01526EP3PCT286VF1-W2 W22 Cooling Tower High Efficiency 3.75/15 HP 12/6P 284/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01526EP3PCT286VF1-W2 W22 Cooling Tower High Efficiency 3.75/15 HP 12/6P 284/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 01526EP3PCT286VF1-W2 W22 Cooling Tower High Efficiency 3.75/15 HP 12/6P 284/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 01526EP3PCT286VF1-W2

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$2,913.86

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 3.75/15 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC

Specifications

200 V 60 Hz 12P 200 V 60 Hz 6P

Electric Motors
Frame 284/6T
Output 3.75 HP (2.8 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 580 rpm
Slip 3.33 %
Rated voltage 200 V
Rated current 14.8 A
L. R. Amperes 48.9 A
LRC 3.3x(Code E)
No load current 9.20 A
Rated torque 34.0 ft.lb
Locked rotor torque 130 %
Breakdown torque 180 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 485 lb
Efficiency
50% 80.0
75% 82.5
100% 84.0
Power factor
50% 0.44
75% 0.59
100% 0.65
Electric Motors
Frame 284/6T
Output 15 HP (11 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 200 V
Rated current 41.4 A
L. R. Amperes 323 A
LRC 7.8x(Code J)
No load current 16.3 A
Rated torque 66.8 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 485 lb
Efficiency
50% 91.0
75% 90.2
100% 90.2
Power factor
50% 0.70
75% 0.81
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
