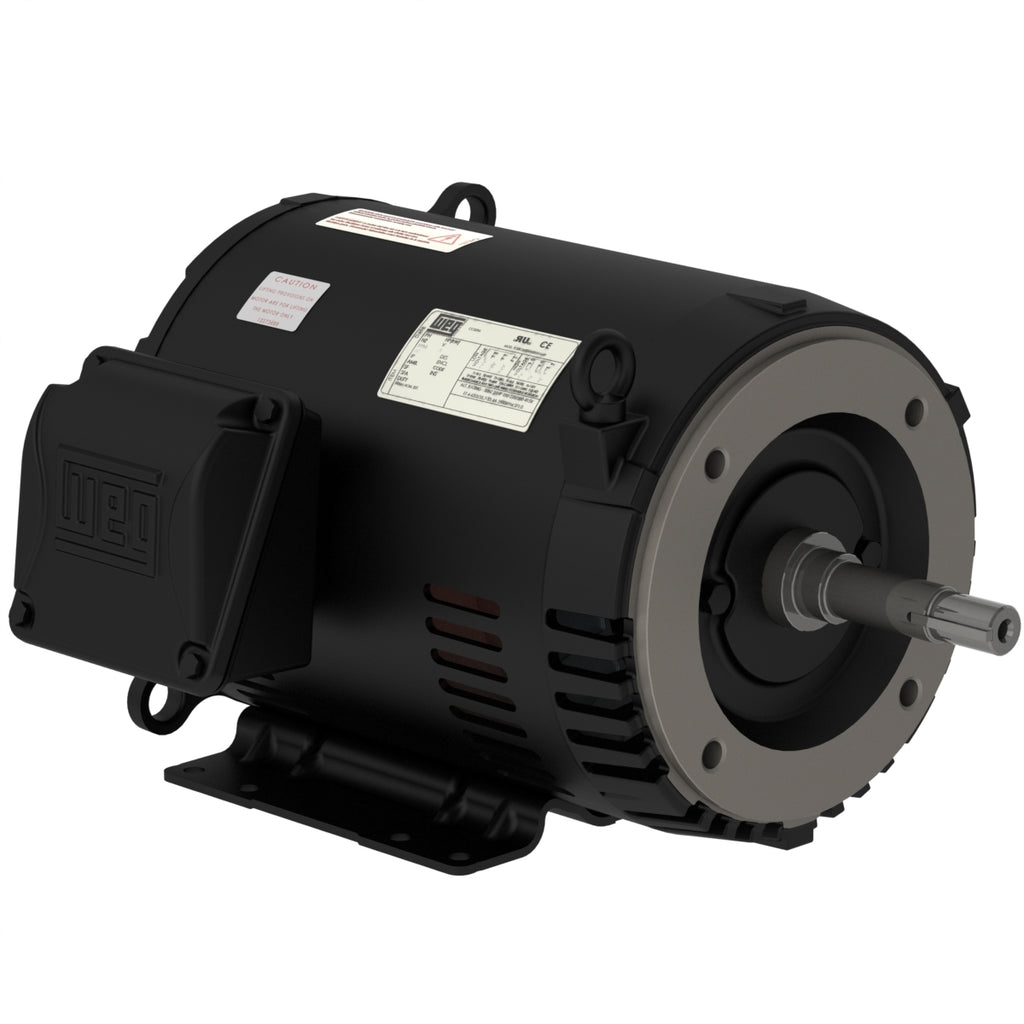

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 15 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 254/6JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1775 rpm |
| Slip | 1.39 % |
| Rated voltage | 230/460 V |
| Rated current | 37.2/18.6 A |
| L. R. Amperes | 249/125 A |
| LRC | 6.7x(Code H) |
| No load current | 19.0/9.50 A |
| Rated torque | 44.4 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 300 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 1.82 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 203 lb |
Efficiency
| 50% | 91.7 |
|---|---|
| 75% | 92.4 |
| 100% | 93.0 |
Power factor
| 50% | 0.62 |
|---|---|
| 75% | 0.73 |
| 100% | 0.80 |
Electric Motors
| Frame | 254/6JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1465 rpm |
| Slip | 2.33 % |
| Rated voltage | 190-220/380 V |
| Rated current | 43.8-37.8/21.9 A |
| L. R. Amperes | 237-204/118 A |
| LRC | 5.4x(Code F) |
| No load current | 17.3-15.0/8.67 A |
| Rated torque | 53.8 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 220 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.82 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 203 lb |
Efficiency
| 50% | 91.3 |
|---|---|
| 75% | 91.0 |
| 100% | 89.7 |
Power factor
| 50% | 0.71 |
|---|---|
| 75% | 0.81 |
| 100% | 0.85 |
Electric Motors
| Frame | 254/6JM |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1470 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 20.9 A |
| L. R. Amperes | 132 A |
| LRC | 6.3x(Code H) |
| No load current | 10.5 A |
| Rated torque | 53.6 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 270 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.82 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 203 lb |
Efficiency
| 50% | 90.3 |
|---|---|
| 75% | 90.9 |
| 100% | 90.3 |
Power factor
| 50% | 0.62 |
|---|---|
| 75% | 0.75 |
| 100% | 0.81 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 1.732" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Superior |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
