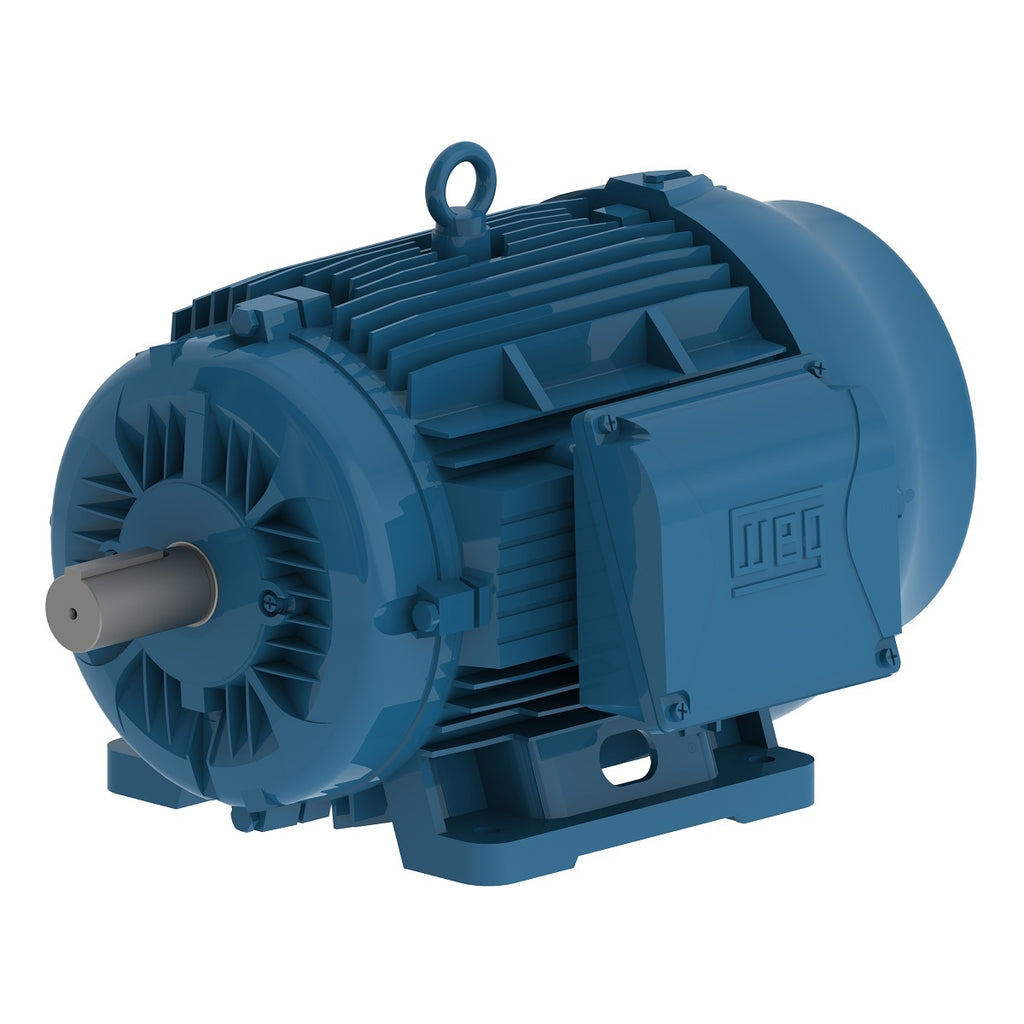

WEG 01518ET3Y160L-W22 W22 Tru-Metric IE3 20 HP 4P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 01518ET3Y160L-W22 W22 Tru-Metric IE3 20 HP 4P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 01518ET3Y160L-W22 W22 Tru-Metric IE3 20 HP 4P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 01518ET3Y160L-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,885.02

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 160L
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1778 rpm
Slip 1.22 %
Rated voltage 460 V
Rated current 25.0 A
L. R. Amperes 208 A
LRC 8.3
No load current 11.0 A
Rated torque 59.1 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 331 lb
Efficiency
50% 91.0
75% 91.7
100% 93.0
Power factor
50% 0.62
75% 0.74
100% 0.81
Electric Motors
Frame 160L
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 29.4 A
L. R. Amperes 206 A
LRC 7.0
No load current 11.0 A
Rated torque 71.7 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 331 lb
Efficiency
50% 92.0
75% 92.4
100% 92.4
Power factor
50% 0.69
75% 0.79
100% 0.84
Electric Motors
Frame 160L
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 28.6 A
L. R. Amperes 215 A
LRC 7.5
No load current 12.0 A
Rated torque 71.4 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 331 lb
Efficiency
50% 91.8
75% 92.4
100% 92.4
Power factor
50% 0.65
75% 0.76
100% 0.82
Electric Motors
Frame 160L
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 28.2 A
L. R. Amperes 226 A
LRC 8.0
No load current 13.0 A
Rated torque 71.2 ft.lb
Locked rotor torque 290 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 2.88 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 331 lb
Efficiency
50% 91.4
75% 92.4
100% 92.4
Power factor
50% 0.62
75% 0.74
100% 0.80
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
