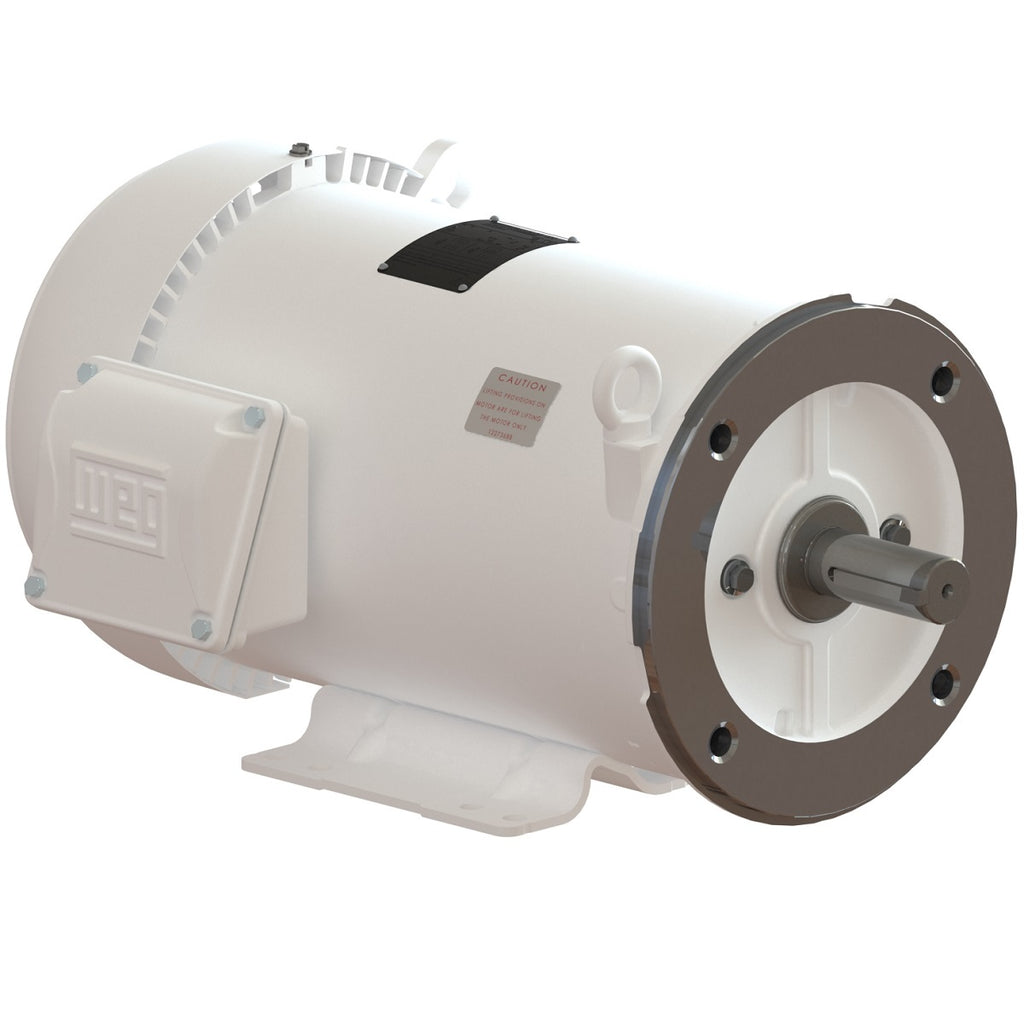

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of poles | 4 |
| Degree of Protection | IP56 |
| Synchronous speed | 1800 rpm |
| Output rating | 15 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 254/6TC |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1770 rpm |
| Slip | 1.67 % |
| Rated voltage | 575 V |
| Rated current | 14.6 A |
| L. R. Amperes | 94.6 A |
| LRC | 6.5x(Code G) |
| No load current | 6.92 A |
| Rated torque | 44.5 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 300 % |
| Locked rotor time | 34s (cold) 19s (hot) |
| Moment of inertia (J) | 2.15 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 219 lb |
Efficiency
| 50% | 91.0 |
|---|---|
| 75% | 92.4 |
| 100% | 92.4 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.76 |
| 100% | 0.82 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1 1/4" |
| Terminal Block | Without |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | 04501 205E |
| Grounding Lugs | Superior |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Stainless Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
