Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 575 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 20 HP |
| Mounting | B3L(E) |
| Flange | Without |
| Terminal box¹ | Right position |
| Enclosure | IC411 - TEFC |

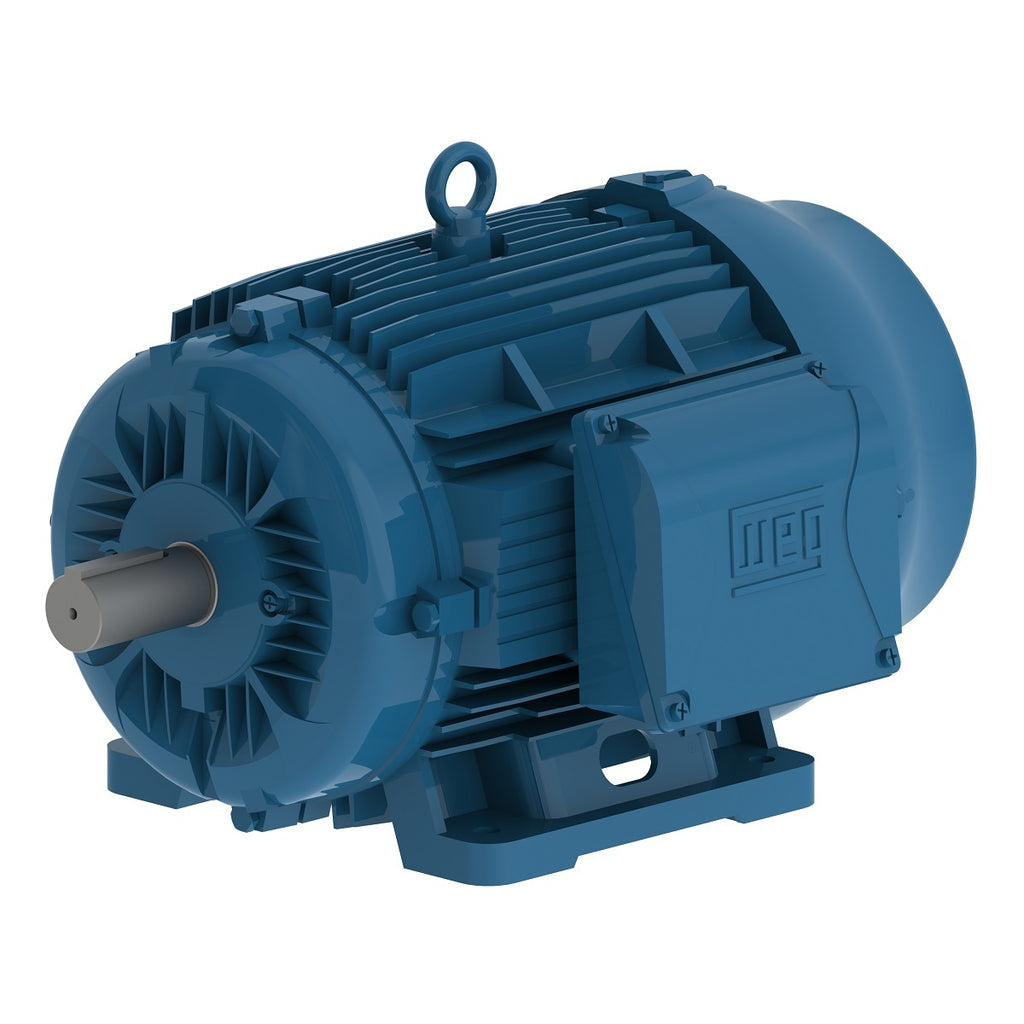

Electric Motors
| Frame | 160L |
|---|---|
| Output | 20 HP (15 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1778 rpm |
| Slip | 1.22 % |
| Rated voltage | 575 V |
| Rated current | 20.0 A |
| L. R. Amperes | 166 A |
| LRC | 8.3 |
| No load current | 8.80 A |
| Rated torque | 59.1 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 330 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 2.88 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 330 lb |
Efficiency
| 50% | 91.0 |
|---|---|
| 75% | 91.7 |
| 100% | 93.0 |
Power factor
| 50% | 0.62 |
|---|---|
| 75% | 0.74 |
| 100% | 0.81 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xM40x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
