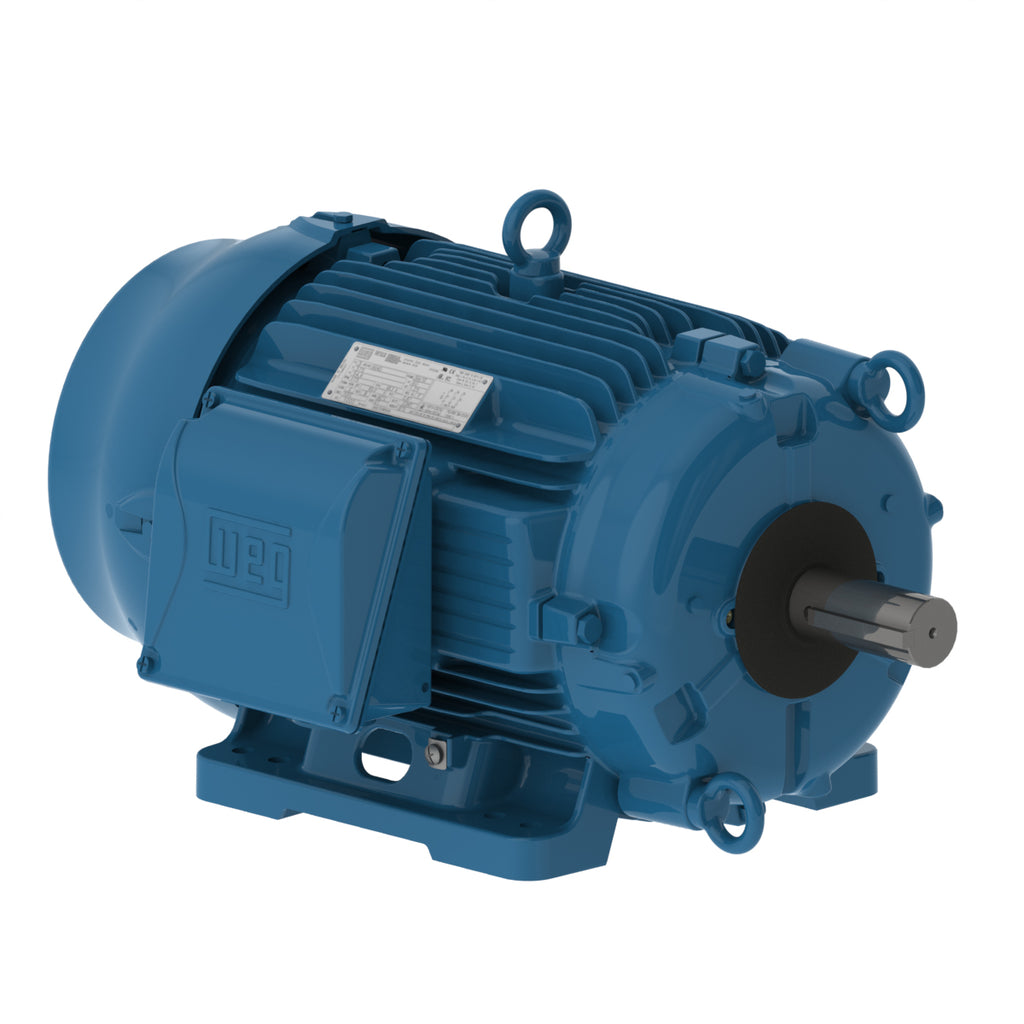

WEG 01518ET3ECT254TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 15 HP 4P 254T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01518ET3ECT254TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 15 HP 4P 254T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 01518ET3ECT254TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 15 HP 4P 254T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 01518ET3ECT254TF1-W2

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,888.58

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 15 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 254T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1768 rpm
Slip 1.78 %
Rated voltage 230/460 V
Rated current 36.0/18.0 A
L. R. Amperes 230/115 A
LRC 6.4x(Code G)
No load current 14.0/7.00 A
Rated torque 44.6 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 91.0
75% 91.7
100% 92.4
Power factor
50% 0.68
75% 0.78
100% 0.83
Electric Motors
Frame 254T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 15.2 A
L. R. Amperes 109 A
LRC 7.2x(Code J)
No load current 6.70 A
Rated torque 35.6 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 72s (cold) 40s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 88.8
75% 90.3
100% 90.4
Power factor
50% 0.65
75% 0.77
100% 0.83
Electric Motors
Frame 254T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 14.8 A
L. R. Amperes 115 A
LRC 7.8x(Code J)
No load current 7.10 A
Rated torque 35.5 ft.lb
Locked rotor torque 280 %
Breakdown torque 340 %
Locked rotor time 63s (cold) 35s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 88.6
75% 90.3
100% 90.6
Power factor
50% 0.62
75% 0.74
100% 0.81
Electric Motors
Frame 254T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1480 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 14.5 A
L. R. Amperes 120 A
LRC 8.3x(Code K)
No load current 7.40 A
Rated torque 35.5 ft.lb
Locked rotor torque 310 %
Breakdown torque 370 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 88.3
75% 90.3
100% 90.8
Power factor
50% 0.59
75% 0.72
100% 0.79
Electric Motors
Frame 254T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 21.5 A
L. R. Amperes 105 A
LRC 4.9x(Code E)
No load current 7.10 A
Rated torque 54.1 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 91.0
75% 90.2
100% 90.2
Power factor
50% 0.74
75% 0.82
100% 0.86
Electric Motors
Frame 254T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 20.5 A
L. R. Amperes 111 A
LRC 5.4x(Code F)
No load current 7.60 A
Rated torque 54.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 91.0
75% 91.0
100% 91.0
Power factor
50% 0.71
75% 0.80
100% 0.85
Electric Motors
Frame 254T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 20.0 A
L. R. Amperes 118 A
LRC 5.9x(Code G)
No load current 7.40 A
Rated torque 53.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 282 lb
Efficiency
50% 91.0
75% 91.0
100% 91.0
Power factor
50% 0.69
75% 0.79
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
