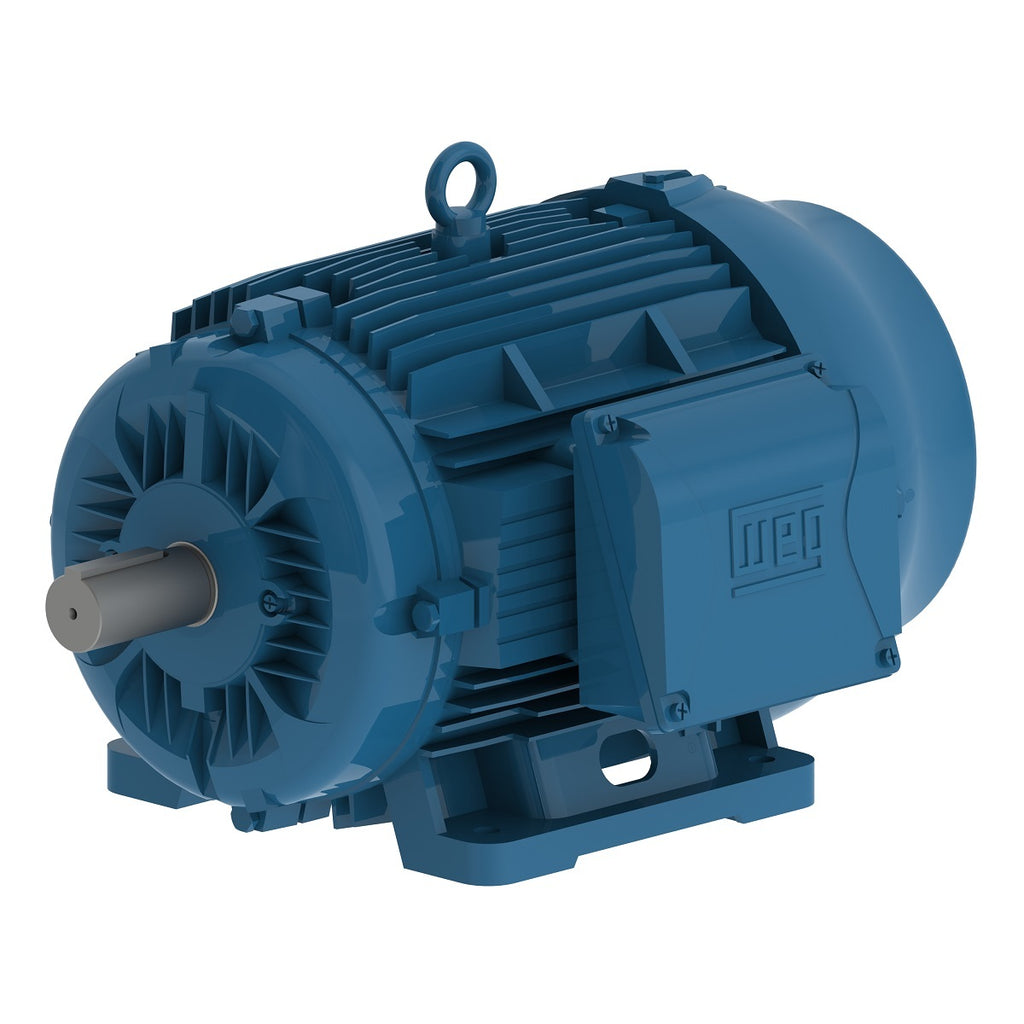

WEG 01512ET3Y180L-W22 W22 Tru-Metric IE3 20 HP 6P 180L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 01512ET3Y180L-W22 W22 Tru-Metric IE3 20 HP 6P 180L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 01512ET3Y180L-W22 W22 Tru-Metric IE3 20 HP 6P 180L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 01512ET3Y180L-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$3,456.76

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 20 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 180L
Output 20 HP (15 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 24.7 A
L. R. Amperes 227 A
LRC 9.2
No load current 10.7 A
Rated torque 89.0 ft.lb
Locked rotor torque 300 %
Breakdown torque 390 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 7.69 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 438 lb
Efficiency
50% 91.0
75% 91.7
100% 91.7
Power factor
50% 0.68
75% 0.79
100% 0.83
Electric Motors
Frame 180L
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 29.3 A
L. R. Amperes 226 A
LRC 7.7
No load current 10.3 A
Rated torque 108 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 7.69 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 438 lb
Efficiency
50% 91.5
75% 91.5
100% 91.5
Power factor
50% 0.68
75% 0.80
100% 0.85
Electric Motors
Frame 180L
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400 V
Rated current 28.0 A
L. R. Amperes 216 A
LRC 7.7
No load current 11.0 A
Rated torque 108 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 7.69 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 438 lb
Efficiency
50% 91.3
75% 91.7
100% 92.0
Power factor
50% 0.65
75% 0.78
100% 0.84
Electric Motors
Frame 180L
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 26.6 A
L. R. Amperes 205 A
LRC 7.7
No load current 12.0 A
Rated torque 108 ft.lb
Locked rotor torque 290 %
Breakdown torque 370 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 7.69 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 438 lb
Efficiency
50% 91.6
75% 92.0
100% 92.3
Power factor
50% 0.69
75% 0.80
100% 0.85
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
