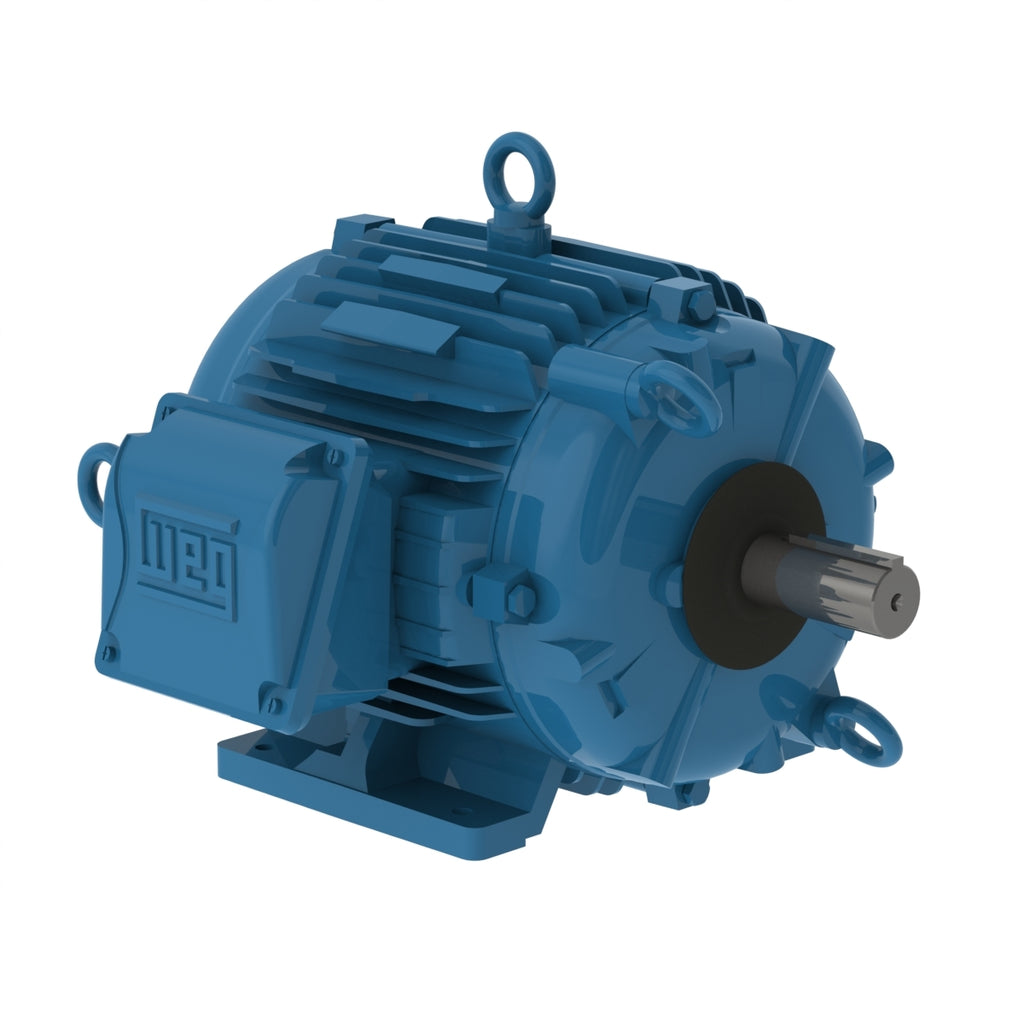

WEG 01512AT3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 15 HP 6P 284T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01512AT3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 15 HP 6P 284T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEG 01512AT3ECT284TF1-W2 W22 Cooling Tower NEMA Premium Efficiency 15 HP 6P 284T 3Ph 208-230/460//380 V 60//50 Hz IC410 - TEAO - Foot-mounted

WEGSKU: 01512AT3ECT284TF1-W2

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$3,528.85

Description

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 15 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC410 - TEAO


Electric Motors
Frame 284T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 39.6-35.8/17.9 A
L. R. Amperes 253-229/115 A
LRC 6.4x(Code G)
No load current 12.1-14.0/7.00 A
Rated torque 67.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 91.0
75% 91.7
100% 91.7
Power factor
50% 0.69
75% 0.80
100% 0.84
Electric Motors
Frame 284T
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 15.5 A
L. R. Amperes 112 A
LRC 7.2x(Code J)
No load current 7.00 A
Rated torque 53.3 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 89.0
75% 89.4
100% 89.4
Power factor
50% 0.64
75% 0.76
100% 0.82
Electric Motors
Frame 284T
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 15.1 A
L. R. Amperes 119 A
LRC 7.9x(Code K)
No load current 7.40 A
Rated torque 53.3 ft.lb
Locked rotor torque 300 %
Breakdown torque 340 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 89.1
75% 89.5
100% 89.5
Power factor
50% 0.61
75% 0.73
100% 0.80
Electric Motors
Frame 284T
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 14.9 A
L. R. Amperes 124 A
LRC 8.3x(Code K)
No load current 7.70 A
Rated torque 53.3 ft.lb
Locked rotor torque 330 %
Breakdown torque 360 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 89.1
75% 89.5
100% 89.5
Power factor
50% 0.58
75% 0.71
100% 0.78
Electric Motors
Frame 284T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 22.0 A
L. R. Amperes 103 A
LRC 4.7x(Code E)
No load current 7.00 A
Rated torque 81.6 ft.lb
Locked rotor torque 170 %
Breakdown torque 210 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 91.0
75% 90.2
100% 88.5
Power factor
50% 0.75
75% 0.84
100% 0.86
Electric Motors
Frame 284T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 20.9 A
L. R. Amperes 111 A
LRC 5.3x(Code F)
No load current 7.40 A
Rated torque 81.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 90.2
75% 90.2
100% 89.5
Power factor
50% 0.72
75% 0.82
100% 0.85
Electric Motors
Frame 284T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 20.2 A
L. R. Amperes 115 A
LRC 5.7x(Code F)
No load current 7.70 A
Rated torque 80.8 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 388 lb
Efficiency
50% 90.2
75% 91.0
100% 90.2
Power factor
50% 0.70
75% 0.81
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
