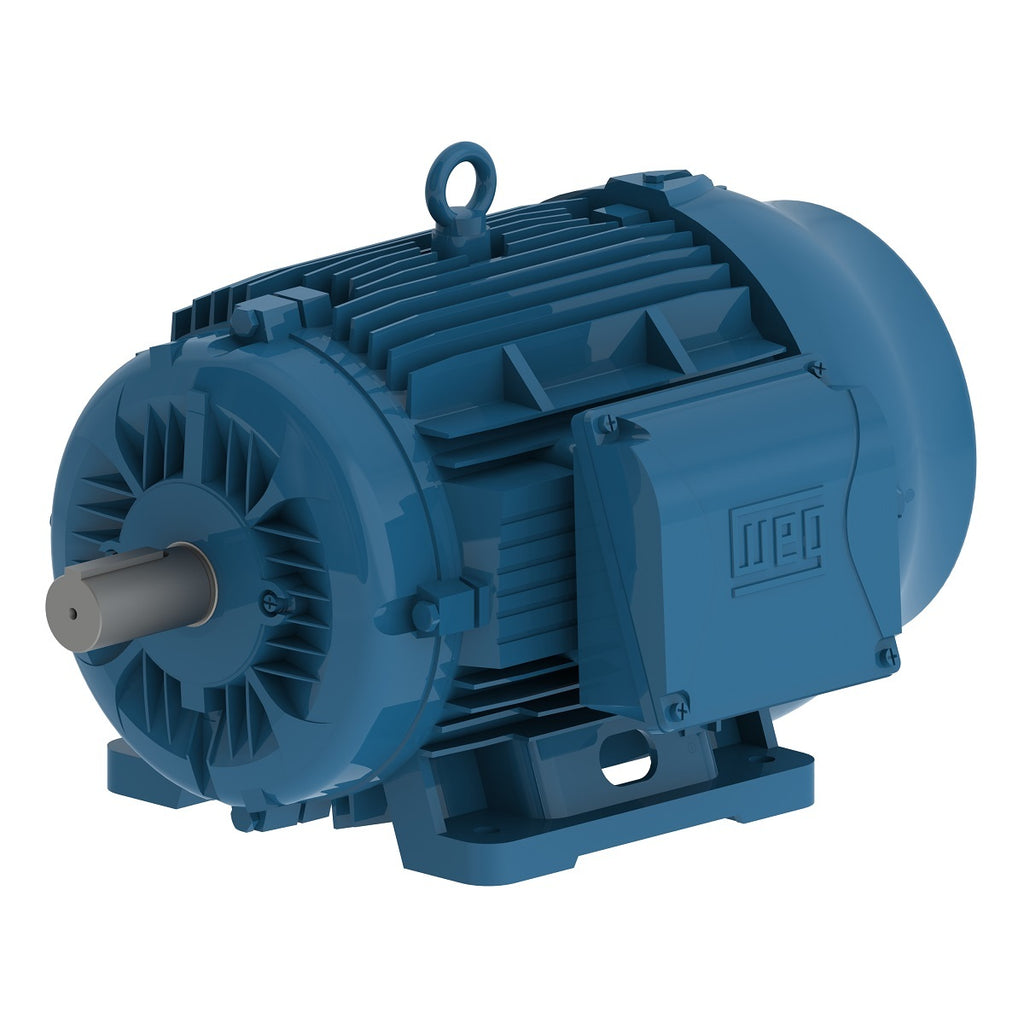

WEG 01136ET3Y160M-W22 W22 Tru-Metric IE3 15 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 01136ET3Y160M-W22 W22 Tru-Metric IE3 15 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 01136ET3Y160M-W22 W22 Tru-Metric IE3 15 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 01136ET3Y160M-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,870.78

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 160M
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 17.9 A
L. R. Amperes 161 A
LRC 9.0
No load current 8.00 A
Rated torque 22.1 ft.lb
Locked rotor torque 330 %
Breakdown torque 400 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.9943 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 277 lb
Efficiency
50% 89.5
75% 91.0
100% 91.7
Power factor
50% 0.68
75% 0.79
100% 0.84
Electric Motors
Frame 160M
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 21.1 A
L. R. Amperes 158 A
LRC 7.5
No load current 7.60 A
Rated torque 26.7 ft.lb
Locked rotor torque 240 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.9943 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 277 lb
Efficiency
50% 90.7
75% 91.2
100% 91.2
Power factor
50% 0.74
75% 0.83
100% 0.87
Electric Motors
Frame 160M
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 20.4 A
L. R. Amperes 163 A
LRC 8.0
No load current 8.60 A
Rated torque 26.7 ft.lb
Locked rotor torque 270 %
Breakdown torque 340 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.9943 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 277 lb
Efficiency
50% 90.3
75% 91.4
100% 91.4
Power factor
50% 0.70
75% 0.80
100% 0.85
Electric Motors
Frame 160M
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 20.2 A
L. R. Amperes 172 A
LRC 8.5
No load current 9.00 A
Rated torque 26.7 ft.lb
Locked rotor torque 300 %
Breakdown torque 370 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.9943 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 277 lb
Efficiency
50% 89.9
75% 91.3
100% 91.4
Power factor
50% 0.65
75% 0.77
100% 0.83
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
