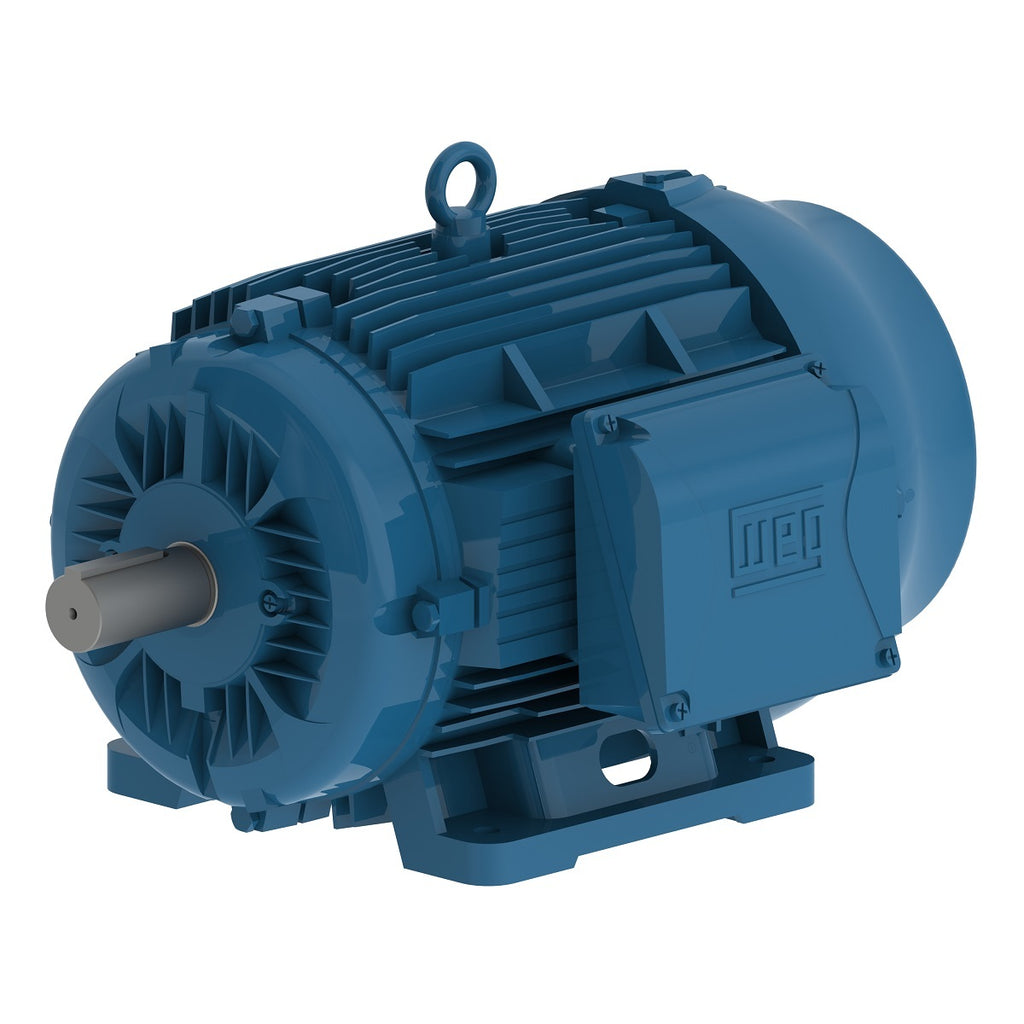

WEG 01112ET3Y160L-W22 W22 Tru-Metric IE3 15 HP 6P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 01112ET3Y160L-W22 W22 Tru-Metric IE3 15 HP 6P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 01112ET3Y160L-W22 W22 Tru-Metric IE3 15 HP 6P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 01112ET3Y160L-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$2,812.40

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 15 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 160L
Output 15 HP (11 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 19.6 A
L. R. Amperes 157 A
LRC 8.0
No load current 10.0 A
Rated torque 66.8 ft.lb
Locked rotor torque 300 %
Breakdown torque 340 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 335 lb
Efficiency
50% 88.5
75% 90.2
100% 91.7
Power factor
50% 0.60
75% 0.71
100% 0.77
Electric Motors
Frame 160L
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 22.6 A
L. R. Amperes 147 A
LRC 6.5
No load current 9.50 A
Rated torque 81.2 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 335 lb
Efficiency
50% 85.5
75% 90.3
100% 90.3
Power factor
50% 0.66
75% 0.77
100% 0.82
Electric Motors
Frame 160L
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400 V
Rated current 21.9 A
L. R. Amperes 149 A
LRC 6.8
No load current 10.5 A
Rated torque 80.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 335 lb
Efficiency
50% 86.5
75% 90.0
100% 90.5
Power factor
50% 0.61
75% 0.73
100% 0.80
Electric Motors
Frame 160L
Output 15 HP (11 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 978 rpm
Slip 2.20 %
Rated voltage 415 V
Rated current 21.7 A
L. R. Amperes 156 A
LRC 7.2
No load current 11.5 A
Rated torque 80.5 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 335 lb
Efficiency
50% 86.5
75% 90.0
100% 90.5
Power factor
50% 0.58
75% 0.70
100% 0.78
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
