Description

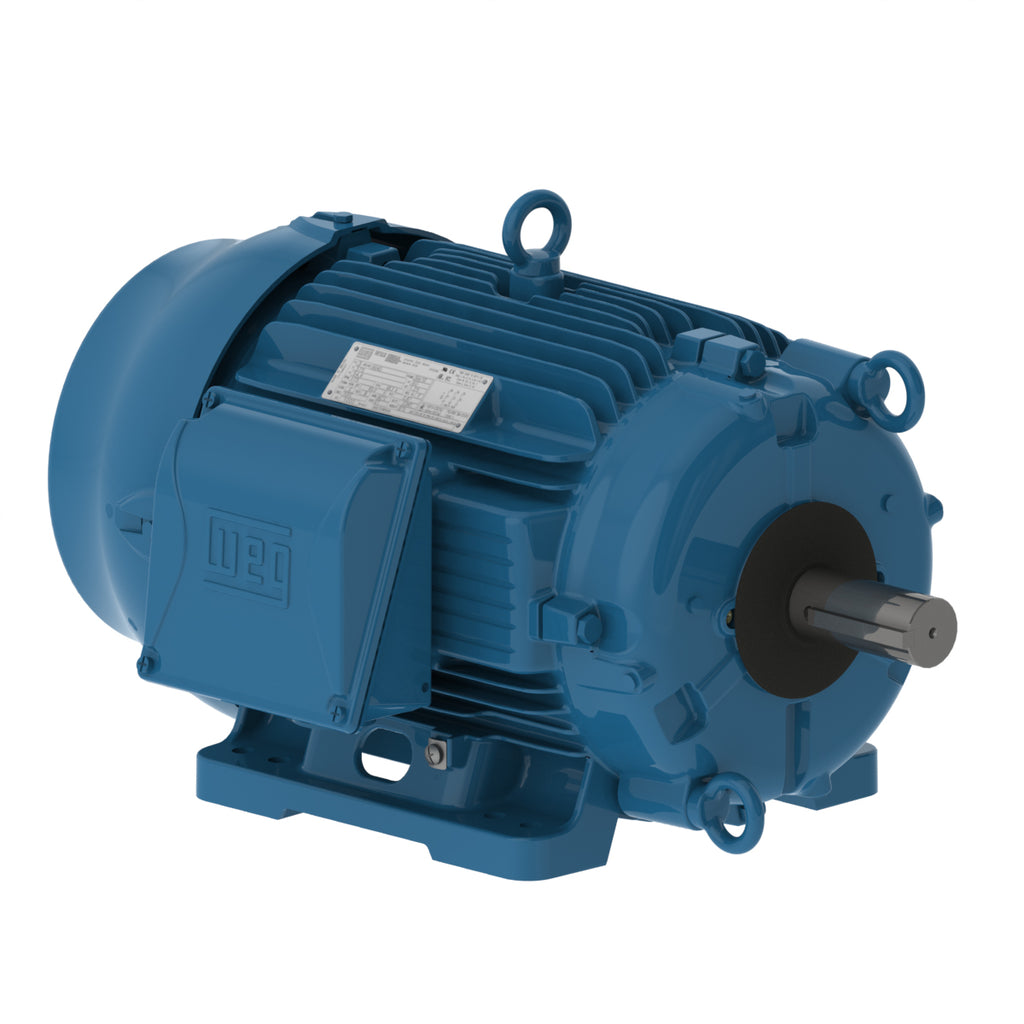

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460 V |
| Number of poles | 8/4 |
| Degree of Protection | IP55 |
| Synchronous speed | 900/1800 rpm |
| Output rating | 2.5/10 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 254/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 1775 rpm |
| Slip | 1.39 % |
| Rated voltage | 460 V |
| Rated current | 12.3 A |
| L. R. Amperes | 88.2 A |
| LRC | 7.2x(Code H) |
| No load current | 4.50 A |
| Rated torque | 29.6 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 290 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 2.96 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 64.0 dB(A) |
| Approx. weight³ | 2.2 lb |
Efficiency
| 50% | 86.5 |
|---|---|
| 75% | 88.5 |
| 100% | 89.5 |
Power factor
| 50% | 0.74 |
|---|---|
| 75% | 0.83 |
| 100% | 0.86 |
Electric Motors
| Frame | 254/6T |
|---|---|
| Output | 2.5 HP (1.84 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 888 rpm |
| Slip | 1.33 % |
| Rated voltage | 460 V |
| Rated current | 4.36 A |
| L. R. Amperes | 21.8 A |
| LRC | 5.0x(Code H) |
| No load current | 3.00 A |
| Rated torque | 14.8 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 280 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 2.96 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 54.0 dB(A) |
| Approx. weight³ | 2.2 lb |
Efficiency
| 50% | 77.0 |
|---|---|
| 75% | 80.0 |
| 100% | 81.5 |
Power factor
| 50% | 0.43 |
|---|---|
| 75% | 0.56 |
| 100% | 0.65 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Double impregnation polyester |
| Space Heater Voltage | 110-127/200-240 V |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
