Description

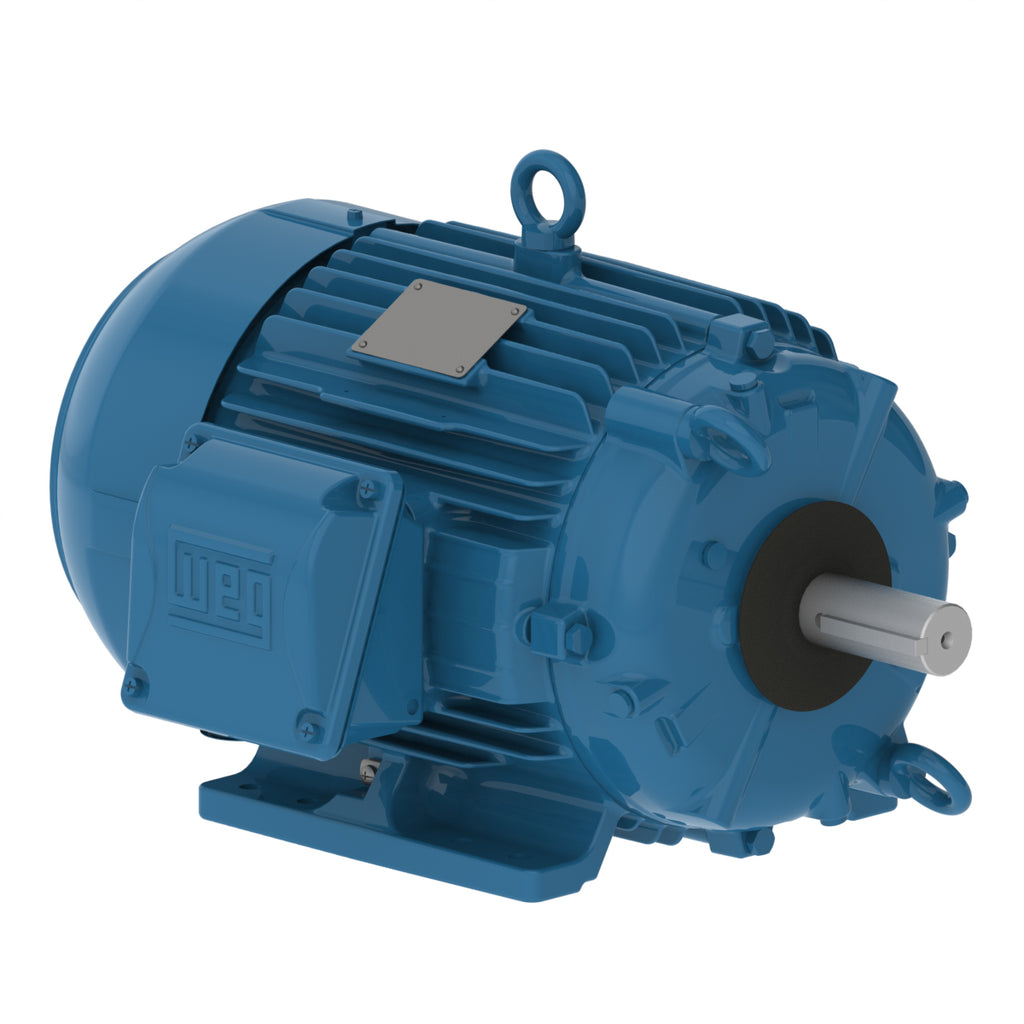

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 200 V |
| Number of poles | 8/4 |
| Degree of Protection | IP55 |
| Synchronous speed | 900/1800 rpm |
| Output rating | 2.5/10 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 200 V |
| Rated current | 29.9 A |
| L. R. Amperes | 209 A |
| LRC | 7.0x(Code J) |
| No load current | 16.6 A |
| Rated torque | 29.8 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 300 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.56 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 61.0 dB(A) |
| Approx. weight³ | 173 lb |
Efficiency
| 50% | 87.0 |
|---|---|
| 75% | 88.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.63 |
|---|---|
| 75% | 0.75 |
| 100% | 0.82 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 2.5 HP (1.85 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 875 rpm |
| Slip | 2.78 % |
| Rated voltage | 200 V |
| Rated current | 11.3 A |
| L. R. Amperes | 39.5 A |
| LRC | 3.5x(Code F) |
| No load current | 9.20 A |
| Rated torque | 15.0 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 200 % |
| Locked rotor time | 59s (cold) 33s (hot) |
| Moment of inertia (J) | 1.56 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 173 lb |
Efficiency
| 50% | 76.0 |
|---|---|
| 75% | 80.0 |
| 100% | 81.5 |
Power factor
| 50% | 0.42 |
|---|---|
| 75% | 0.52 |
| 100% | 0.58 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Double impregnation polyester |
| Space Heater Voltage | 110-127/200-240 V |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
