WEG 01036OT3E213T-S Rolled Steel NEMA Premium Efficiency 10 HP 2P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom

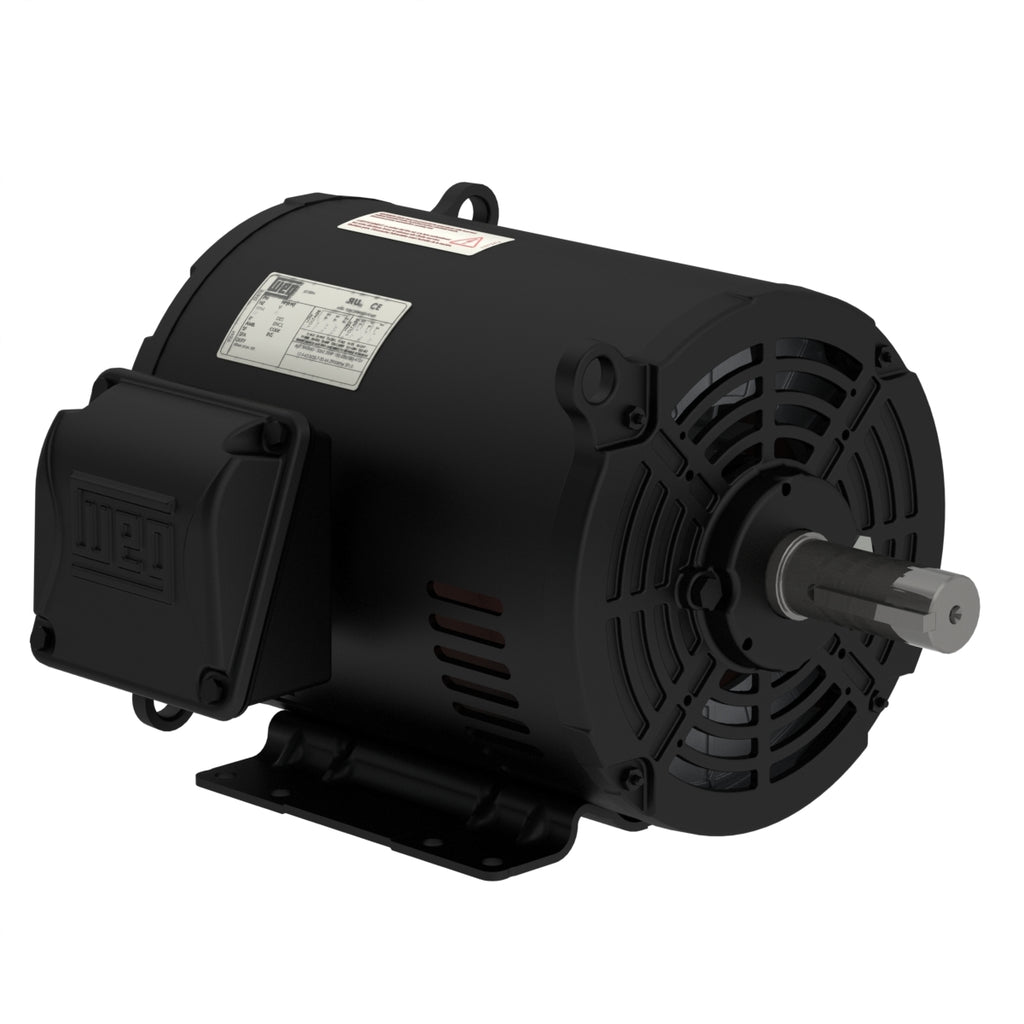

WEG 01036OT3E213T-S Rolled Steel NEMA Premium Efficiency 10 HP 2P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEG 01036OT3E213T-S Rolled Steel NEMA Premium Efficiency 10 HP 2P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 01036OT3E213T-S

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$962.09

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting F-1
Flange Without
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 230/460 V
Rated current 24.0/12.0 A
L. R. Amperes 163/81.6 A
LRC 6.8x(Code H)
No load current 9.32/4.66 A
Rated torque 14.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 88.5
75% 89.5
100% 89.5
Power factor
50% 0.74
75% 0.84
100% 0.88
Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 190-220/380 V
Rated current 29.0-25.0/14.5 A
L. R. Amperes 157-135/78.3 A
LRC 5.4x(Code F)
No load current 9.15-7.90/4.58 A
Rated torque 18.0 ft.lb
Locked rotor torque 150 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 89.4
75% 88.6
100% 86.5
Power factor
50% 0.80
75% 0.88
100% 0.91
Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 13.3 A
L. R. Amperes 86.5 A
LRC 6.5x(Code G)
No load current 5.51 A
Rated torque 17.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 123 lb
Efficiency
50% 89.0
75% 89.1
100% 87.9
Power factor
50% 0.73
75% 0.84
100% 0.89
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
