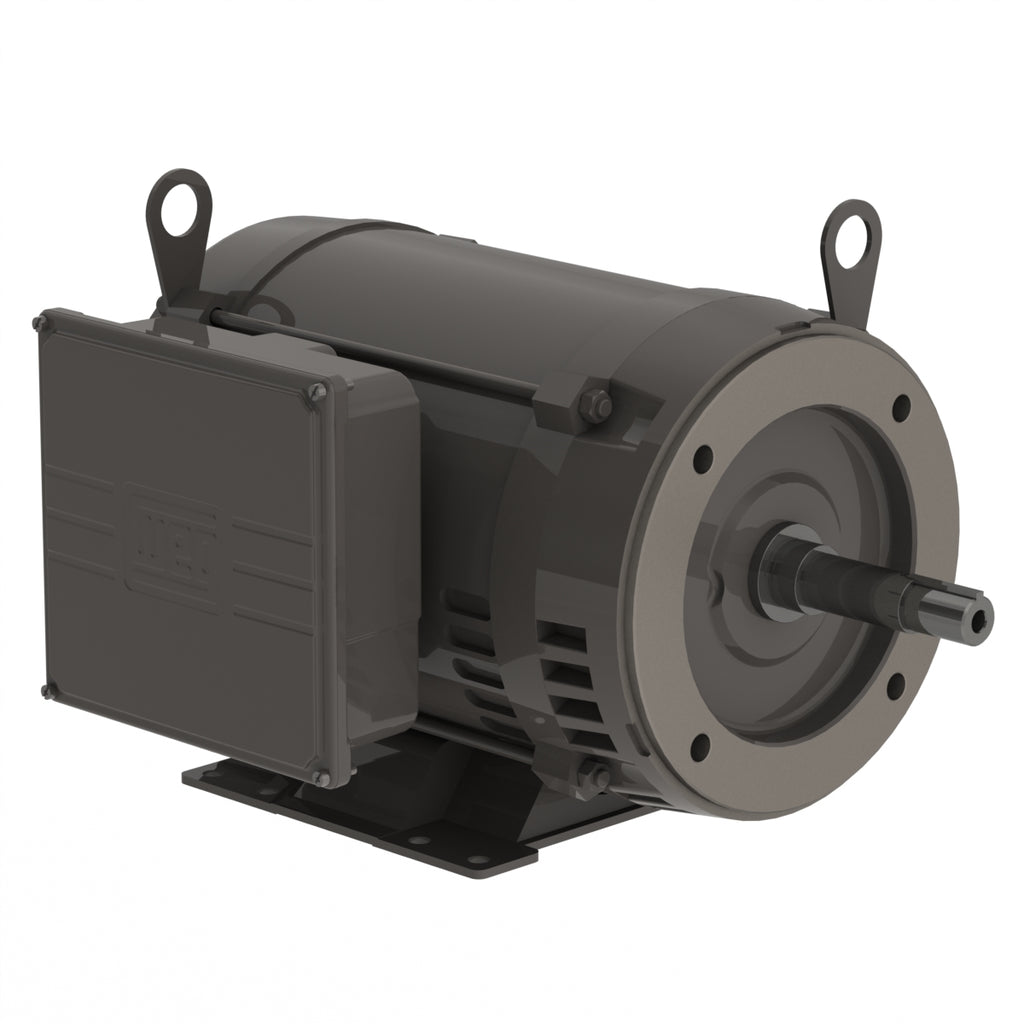

Description
They ensure maximum performance and robustness in a great variety of applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230 V |
| Number of poles | 2 |
| Degree of Protection | IP21 |
| Synchronous speed | 3600 rpm |
| Output rating | 10 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3470 rpm |
| Slip | 3.61 % |
| Rated voltage | 208-230 V |
| Rated current | 46.0-42.0 A |
| L. R. Amperes | 276-252 A |
| LRC | 6.0x(Code G) |
| No load current | 0.000-10.5 A |
| Rated torque | 15.1 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 229 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.4271 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Approx. weight³ | 121 lb |
Efficiency
| 50% | 81.0 |
|---|---|
| 75% | 83.0 |
| 100% | 84.0 |
Power factor
| 50% | 0.90 |
|---|---|
| 75% | 0.93 |
| 100% | 0.94 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 7022 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Resilient Base | Without |
| Pump Seal | Mechanical Seal |
| Overload protector (phenolic) | Without overload protector |
