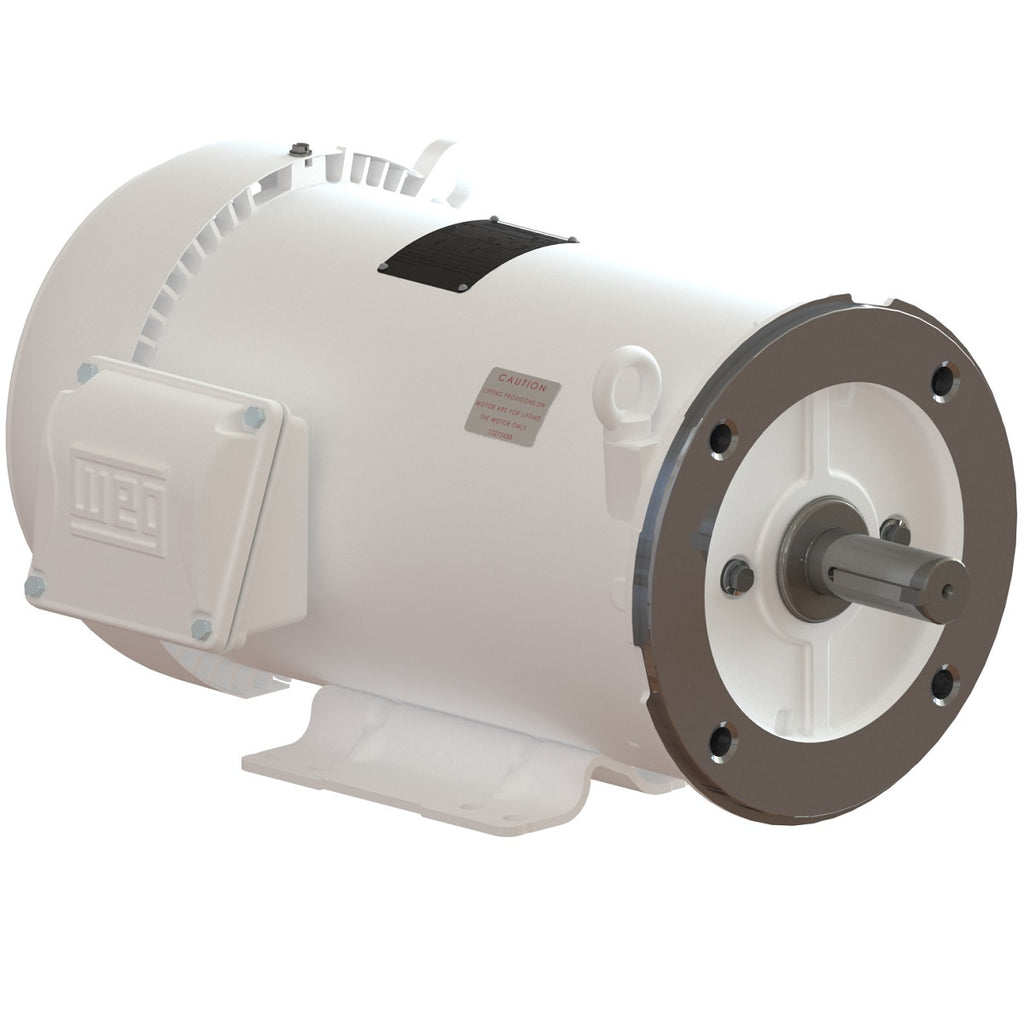

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 2 |
| Degree of Protection | IP56 |
| Synchronous speed | 3600 rpm |
| Output rating | 10 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213/5TC |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3530 rpm |
| Slip | 1.94 % |
| Rated voltage | 230/460 V |
| Rated current | 23.0/11.5 A |
| L. R. Amperes | 173/86.2 A |
| LRC | 7.5x(Code H) |
| No load current | 7.53/3.77 A |
| Rated torque | 2.06 kgfm |
| Locked rotor torque | 260 % |
| Breakdown torque | 300 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.0303 kgm² |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 70.0 dB(A) |
| Approx. weight³ | 75.7 kg |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 90.2 |
| 100% | 90.2 |
Power factor
| 50% | 0.80 |
|---|---|
| 75% | 0.88 |
| 100% | 0.91 |
Electric Motors
| Frame | 213/5TC |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2900 rpm |
| Slip | 3.33 % |
| Rated voltage | 190-220/380 V |
| Rated current | 28.4-24.5/14.2 A |
| L. R. Amperes | 173-150/86.6 A |
| LRC | 6.1x(Code G) |
| No load current | 7.43-6.42/3.71 A |
| Rated torque | 2.50 kgfm |
| Locked rotor torque | 190 % |
| Breakdown torque | 229 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0303 kgm² |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 75.7 kg |
Efficiency
| 50% | 90.0 |
|---|---|
| 75% | 89.2 |
| 100% | 87.2 |
Power factor
| 50% | 0.85 |
|---|---|
| 75% | 0.90 |
| 100% | 0.92 |
Electric Motors
| Frame | 213/5TC |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2920 rpm |
| Slip | 2.67 % |
| Rated voltage | 415 V |
| Rated current | 12.9 A |
| L. R. Amperes | 95.5 A |
| LRC | 7.4x(Code H) |
| No load current | 4.20 A |
| Rated torque | 2.49 kgfm |
| Locked rotor torque | 240 % |
| Breakdown torque | 280 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0303 kgm² |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 75.7 kg |
Efficiency
| 50% | 90.1 |
|---|---|
| 75% | 90.0 |
| 100% | 88.7 |
Power factor
| 50% | 0.80 |
|---|---|
| 75% | 0.88 |
| 100% | 0.91 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | 04501 205E |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Stainless Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
