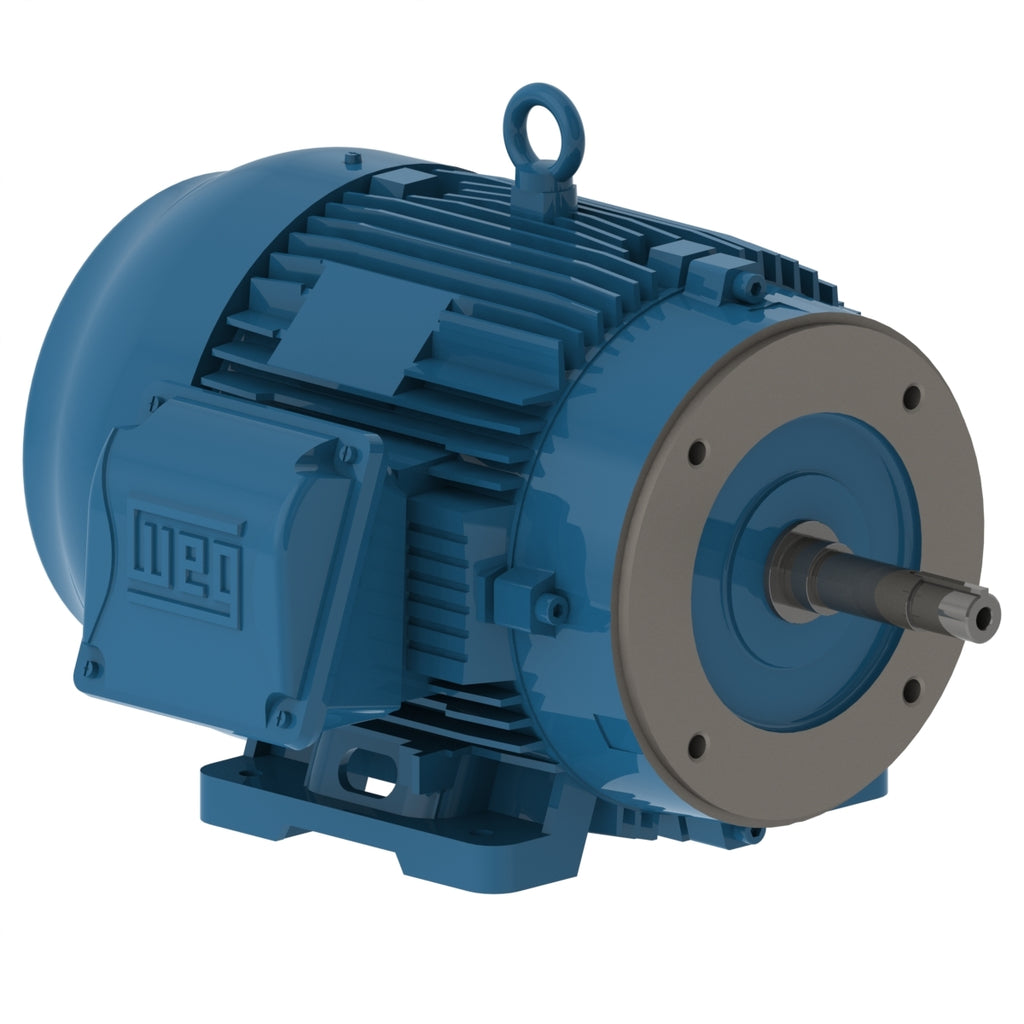

WEG 01036ET3E215JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01036ET3E215JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 01036ET3E215JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 01036ET3E215JM-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,574.41

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 23.2/11.6 A
L. R. Amperes 167/83.5 A
LRC 7.2x(Code H)
No load current 6.80/3.40 A
Rated torque 15.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 89.5
75% 90.2
100% 90.2
Power factor
50% 0.79
75% 0.87
100% 0.90
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 380 V
Rated current 10.4 A
L. R. Amperes 77.0 A
LRC 7.4x(Code H)
No load current 3.40 A
Rated torque 13.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 88.6
75% 89.6
100% 89.5
Power factor
50% 0.75
75% 0.86
100% 0.90
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 400 V
Rated current 10.1 A
L. R. Amperes 84.8 A
LRC 8.4x(Code J)
No load current 3.70 A
Rated torque 13.4 ft.lb
Locked rotor torque 270 %
Breakdown torque 340 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 88.4
75% 89.6
100% 89.5
Power factor
50% 0.72
75% 0.83
100% 0.88
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 9.91 A
L. R. Amperes 90.2 A
LRC 9.1x(Code K)
No load current 3.90 A
Rated torque 13.4 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 87.7
75% 89.5
100% 89.8
Power factor
50% 0.70
75% 0.82
100% 0.86
Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 14.1 A
L. R. Amperes 79.0 A
LRC 5.6x(Code F)
No load current 3.40 A
Rated torque 18.3 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 89.5
75% 89.5
100% 88.5
Power factor
50% 0.83
75% 0.90
100% 0.91
Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 400 V
Rated current 13.4 A
L. R. Amperes 85.8 A
LRC 6.4x(Code G)
No load current 3.70 A
Rated torque 18.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 89.5
75% 89.5
100% 88.5
Power factor
50% 0.81
75% 0.88
100% 0.91
Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 13.1 A
L. R. Amperes 90.4 A
LRC 6.9x(Code H)
No load current 3.90 A
Rated torque 18.1 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 89.5
75% 89.5
100% 88.5
Power factor
50% 0.79
75% 0.87
100% 0.90
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Pump Seal Mechanical Seal
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
