Description

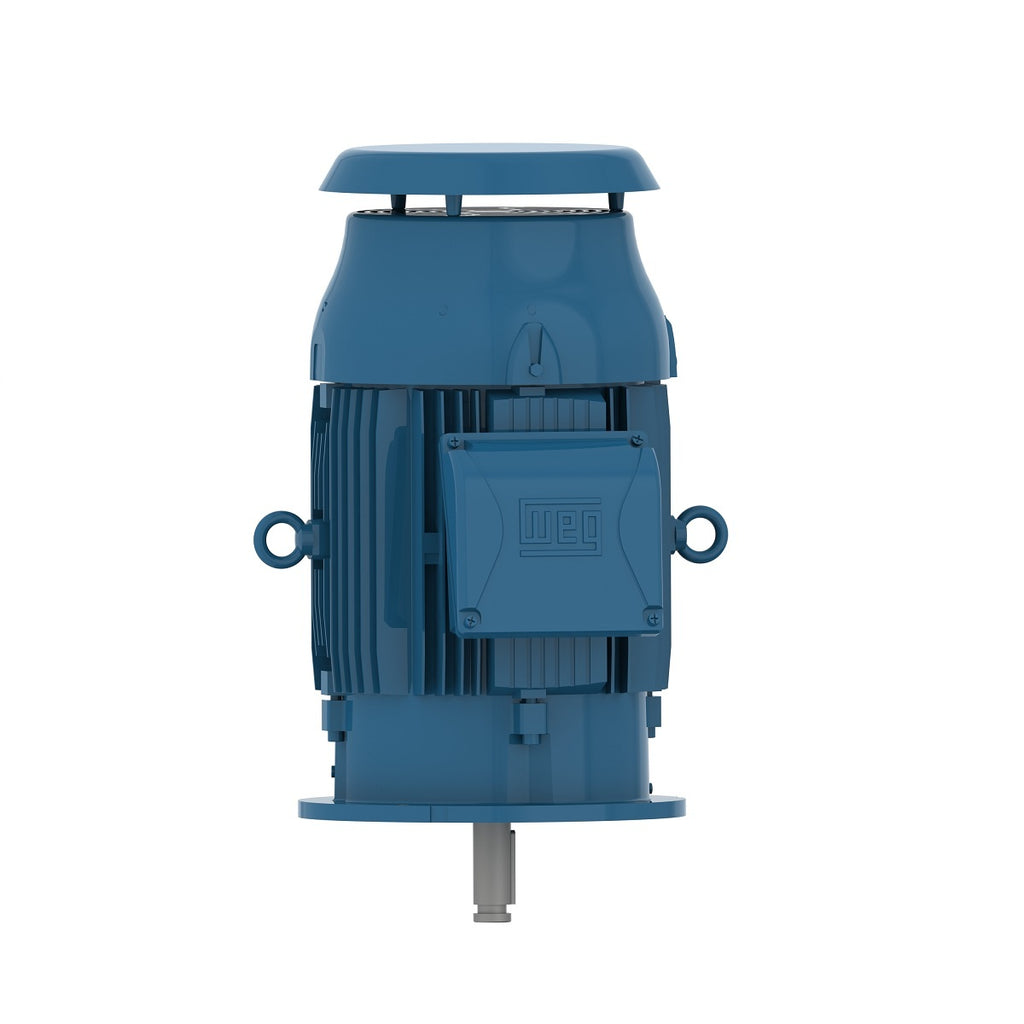

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 10 HP |
| Mounting | W-6 |
| Flange | P |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Specifications
230/460 V 60 Hz 2P 380 V 50 Hz 2P IE3 400 V 50 Hz 2P IE3 415 V 50 Hz 2P IE3 380 V 50 Hz 2P IE2 400 V 50 Hz 2P IE2 415 V 50 Hz 2P IE2Electric Motors
| Frame | 215HP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3530 rpm |
| Slip | 1.94 % |
| Rated voltage | 230/460 V |
| Rated current | 23.2/11.6 A |
| L. R. Amperes | 167/83.5 A |
| LRC | 7.2x(Code H) |
| No load current | 7.20/3.60 A |
| Rated torque | 14.9 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 290 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 90.2 |
| 100% | 90.2 |
Power factor
| 50% | 0.79 |
|---|---|
| 75% | 0.87 |
| 100% | 0.90 |
Electric Motors
| Frame | 215HP |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2940 rpm |
| Slip | 2.00 % |
| Rated voltage | 380 V |
| Rated current | 10.4 A |
| L. R. Amperes | 82.2 A |
| LRC | 7.9x(Code J) |
| No load current | 3.50 A |
| Rated torque | 13.4 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 300 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 88.6 |
|---|---|
| 75% | 89.6 |
| 100% | 89.5 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.86 |
| 100% | 0.90 |
Electric Motors
| Frame | 215HP |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2945 rpm |
| Slip | 1.83 % |
| Rated voltage | 400 V |
| Rated current | 10.1 A |
| L. R. Amperes | 87.9 A |
| LRC | 8.7x(Code K) |
| No load current | 3.70 A |
| Rated torque | 13.4 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 340 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 88.4 |
|---|---|
| 75% | 89.6 |
| 100% | 89.5 |
Power factor
| 50% | 0.72 |
|---|---|
| 75% | 0.83 |
| 100% | 0.88 |
Electric Motors
| Frame | 215HP |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2950 rpm |
| Slip | 1.67 % |
| Rated voltage | 415 V |
| Rated current | 9.91 A |
| L. R. Amperes | 90.2 A |
| LRC | 9.1x(Code K) |
| No load current | 3.90 A |
| Rated torque | 13.4 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 360 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 87.7 |
|---|---|
| 75% | 89.5 |
| 100% | 89.8 |
Power factor
| 50% | 0.70 |
|---|---|
| 75% | 0.82 |
| 100% | 0.86 |
Electric Motors
| Frame | 215HP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2900 rpm |
| Slip | 3.33 % |
| Rated voltage | 380 V |
| Rated current | 14.1 A |
| L. R. Amperes | 79.0 A |
| LRC | 5.6x(Code F) |
| No load current | 3.50 A |
| Rated torque | 18.1 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 220 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 89.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.83 |
|---|---|
| 75% | 0.90 |
| 100% | 0.91 |
Electric Motors
| Frame | 215HP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2915 rpm |
| Slip | 2.83 % |
| Rated voltage | 400 V |
| Rated current | 13.4 A |
| L. R. Amperes | 85.8 A |
| LRC | 6.4x(Code G) |
| No load current | 3.70 A |
| Rated torque | 18.0 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 89.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.81 |
|---|---|
| 75% | 0.88 |
| 100% | 0.91 |
Electric Motors
| Frame | 215HP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2925 rpm |
| Slip | 2.50 % |
| Rated voltage | 415 V |
| Rated current | 13.1 A |
| L. R. Amperes | 90.4 A |
| LRC | 6.9x(Code H) |
| No load current | 3.90 A |
| Rated torque | 18.0 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 270 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 189 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 89.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.79 |
|---|---|
| 75% | 0.87 |
| 100% | 0.90 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | With |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
