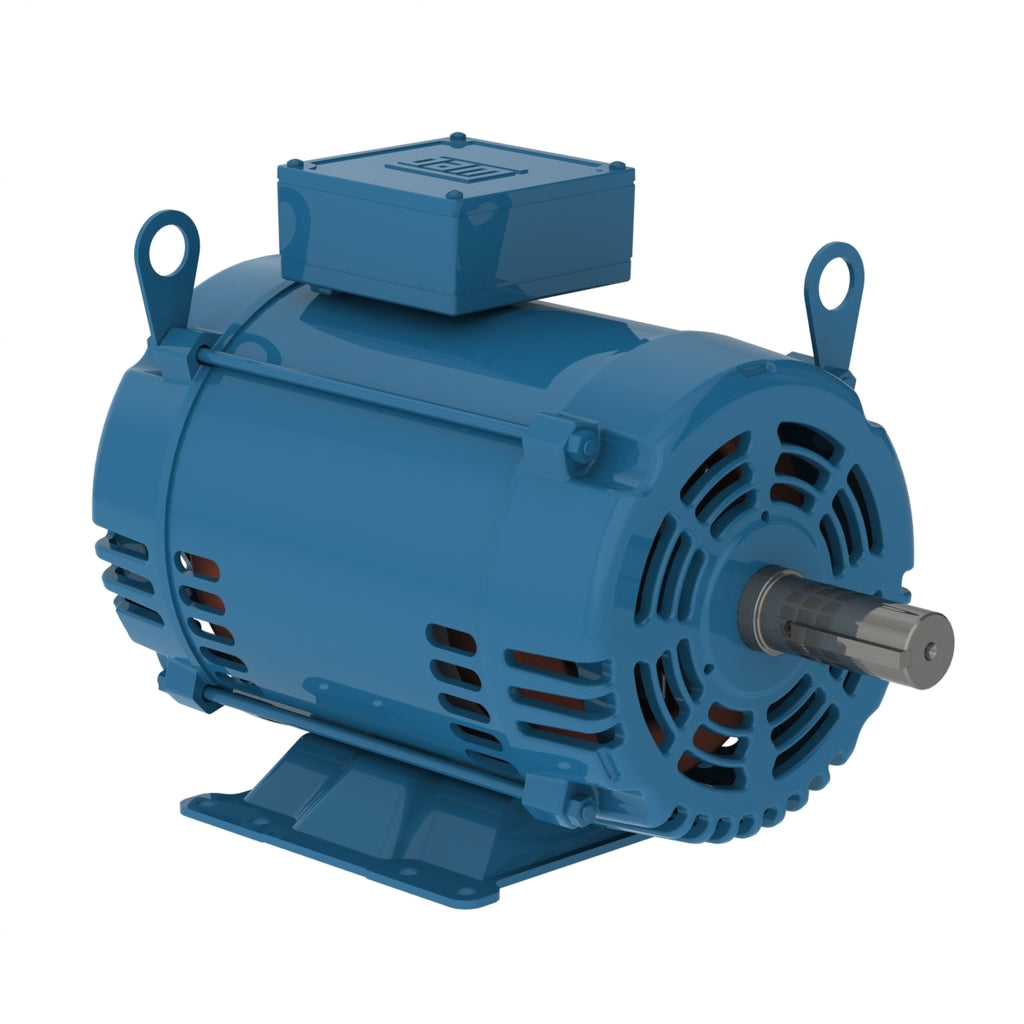

WEG 01018OT3E215TF3 General NEMA Premium Efficiency 10 HP 4P 213/5T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01018OT3E215TF3 General NEMA Premium Efficiency 10 HP 4P 213/5T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 01018OT3E215TF3 General NEMA Premium Efficiency 10 HP 4P 213/5T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 01018OT3E215TF3

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$980.78

Description

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting F-3
Flange Without
Terminal box¹ Top
Enclosure IC01 - ODP


Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 24.4/12.2 A
L. R. Amperes 154/76.9 A
LRC 6.3x(Code G)
No load current 12.0/6.00 A
Rated torque 29.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 90.2
75% 91.0
100% 91.7
Power factor
50% 0.64
75% 0.76
100% 0.84
Electric Motors
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 11.5 A
L. R. Amperes 74.7 A
LRC 6.5x(Code H)
No load current 6.32 A
Rated torque 26.9 ft.lb
Locked rotor torque 280 %
Breakdown torque 360 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 85.1
75% 87.5
100% 89.6
Power factor
50% 0.59
75% 0.72
100% 0.81
Electric Motors
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 11.4 A
L. R. Amperes 82.1 A
LRC 7.2x(Code J)
No load current 6.99 A
Rated torque 26.9 ft.lb
Locked rotor torque 310 %
Breakdown torque 400 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 85.1
75% 88.0
100% 89.6
Power factor
50% 0.55
75% 0.69
100% 0.78
Electric Motors
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 11.4 A
L. R. Amperes 87.8 A
LRC 7.7x(Code K)
No load current 7.65 A
Rated torque 26.8 ft.lb
Locked rotor torque 340 %
Breakdown torque 440 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 85.0
75% 88.4
100% 89.7
Power factor
50% 0.51
75% 0.65
100% 0.75
Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 15.1 A
L. R. Amperes 78.5 A
LRC 5.2x(Code F)
No load current 6.32 A
Rated torque 36.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 270 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 87.5
75% 87.5
100% 87.5
Power factor
50% 0.69
75% 0.80
100% 0.86
Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 14.5 A
L. R. Amperes 84.1 A
LRC 5.8x(Code G)
No load current 6.99 A
Rated torque 36.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 87.7
75% 88.5
100% 88.7
Power factor
50% 0.65
75% 0.77
100% 0.84
Electric Motors
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 14.2 A
L. R. Amperes 89.5 A
LRC 6.3x(Code H)
No load current 7.65 A
Rated torque 36.0 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 9s (cold) 5s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 119 lb
Efficiency
50% 88.2
75% 88.7
100% 89.5
Power factor
50% 0.61
75% 0.75
100% 0.82
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
