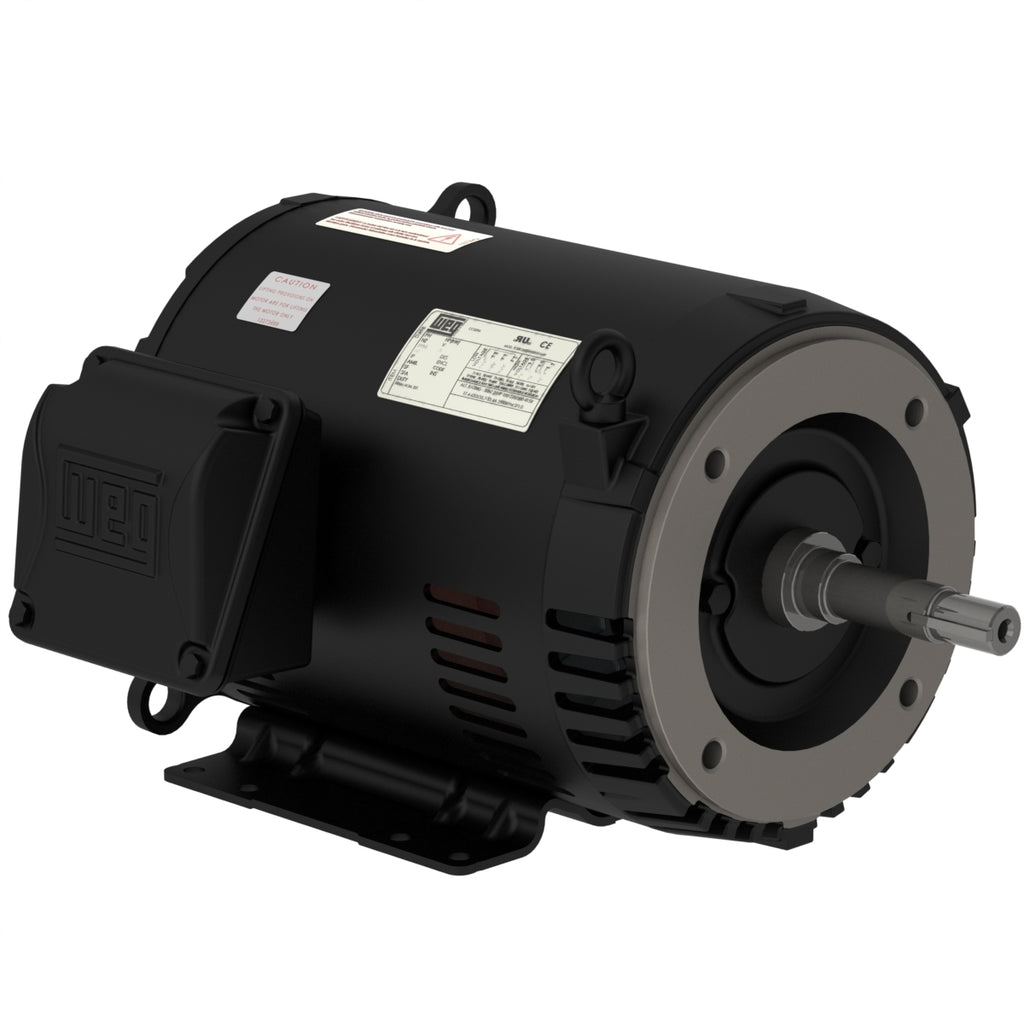

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 10 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1770 rpm |
| Slip | 1.67 % |
| Rated voltage | 230/460 V |
| Rated current | 24.8/12.4 A |
| L. R. Amperes | 174/86.8 A |
| LRC | 7.0x(Code H) |
| No load current | 12.0/5.99 A |
| Rated torque | 29.7 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 350 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.30 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 130 lb |
Efficiency
| 50% | 90.2 |
|---|---|
| 75% | 91.0 |
| 100% | 91.7 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.77 |
| 100% | 0.83 |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1460 rpm |
| Slip | 2.67 % |
| Rated voltage | 190-220/380 V |
| Rated current | 29.8-25.7/14.9 A |
| L. R. Amperes | 191-165/95.4 A |
| LRC | 6.4x(Code G) |
| No load current | 11.8-10.2/5.89 A |
| Rated torque | 36.0 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 250 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.30 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 130 lb |
Efficiency
| 50% | 90.1 |
|---|---|
| 75% | 89.7 |
| 100% | 88.1 |
Power factor
| 50% | 0.72 |
|---|---|
| 75% | 0.82 |
| 100% | 0.87 |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1470 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 14.0 A |
| L. R. Amperes | 106 A |
| LRC | 7.6x(Code J) |
| No load current | 6.93 A |
| Rated torque | 35.7 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 300 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 1.30 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 130 lb |
Efficiency
| 50% | 89.1 |
|---|---|
| 75% | 89.7 |
| 100% | 89.0 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.77 |
| 100% | 0.84 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 1.377" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
